Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

500 W RMS / 1000 W Peak

LF Driver

1x 10" / 25.4 cm Woofer, Ferrite Magnet

HF Driver

1x 1.4" / 36 mm Titanium Dome Tweeter, Ferrite Magnet

Frequency Range / Response

50 Hz to 23 kHz (-10 dB)
55 Hz to 20 kHz (-3 dB)

General

Speaker Type

Active Loudspeaker

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

500 W RMS / 1000 W Peak

Amplifier

LF Amplifier Power

400 W RMS / 800 W Peak

HF Amplifier Power

100 W RMS / 200 W Peak

Amplifier Class

LF: Class-D
HF: Class-AB

Drivers

LF Driver

1x 10" / 25.4 cm Woofer
Magnet: Ferrite

HF Driver

1x 1.4" / 36 mm Titanium Dome Tweeter
Magnet: Ferrite

Performance

Frequency Range / Response

50 Hz to 23 kHz (-10 dB)
55 Hz to 20 kHz (-3 dB)

Maximum SPL

126 dB SPL

Coverage Angle

90° H x 80° V

Protections

Excursion, Output Limiter, Thermal

Signal Processing

Crossover Frequency

3000 Hz

EQ & Filters

No

Dynamic Processing

Peak Limiter

Alignment Delay

No

Digital Signal Processing

Venue Settings, Voicing Modes

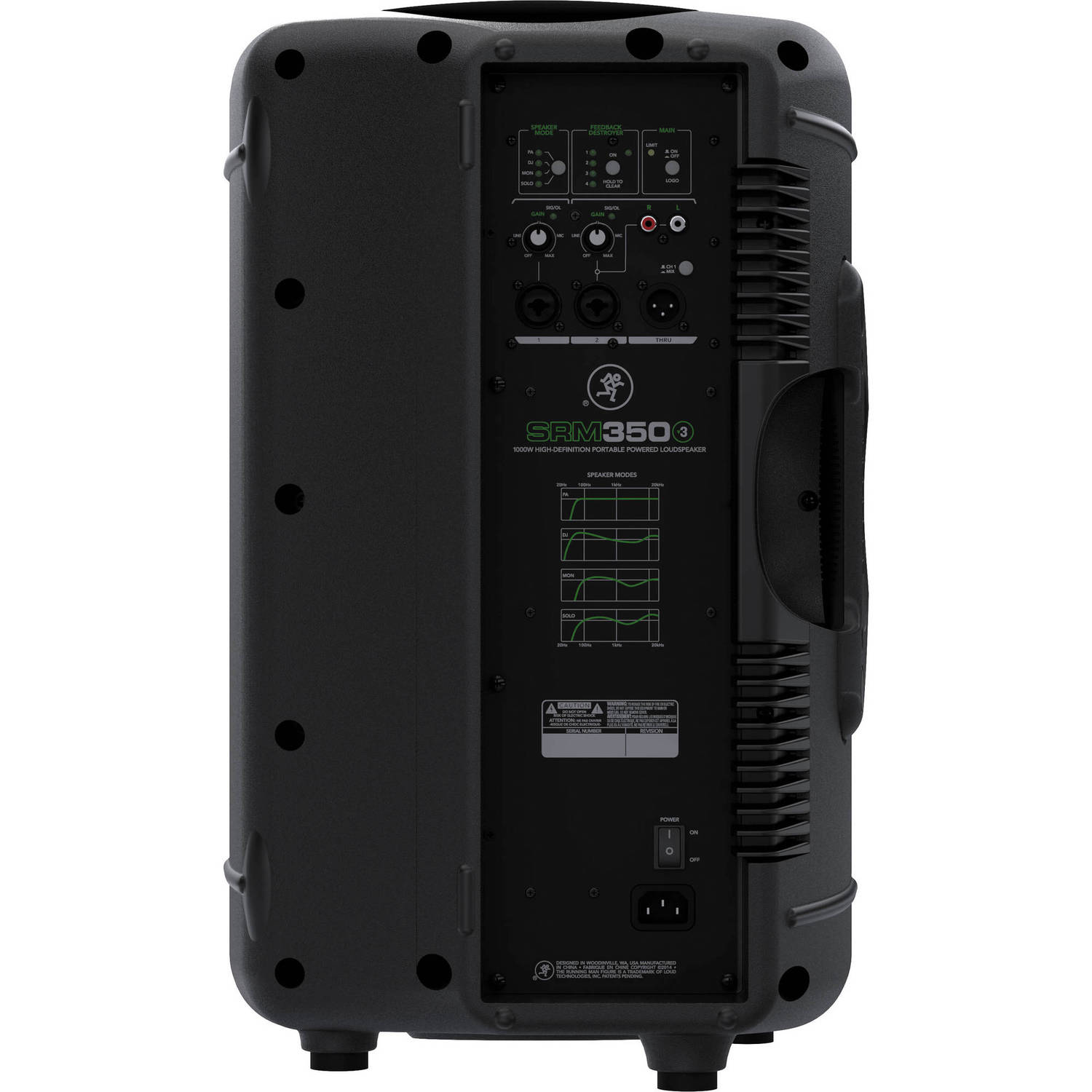

Connectivity

Audio I/O

2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input
1x Stereo 2RCA Input
1x XLR 3-Pin Thru

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Power Consumption

160 W

Physical

Color

Black

Mounting

Stand Mount
1 x Pole Socket (Bottom)
3 x M10 Fly Point Suspension Points

Handles

1x Each Side

Construction Material

Metal Grille, Polypropylene

Environmental Resistance

No

Dimensions (H × W × D)

20.8 x 13.1 x 12.3" / 528.3 x 332.7 x 312.4 mm

Weight

23 lb / 10.4 kg

Packaging Info

Package Weight

26 lb

Box Dimensions (L × W × H)

22.284 x 13.78 x 13.465"
