Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

500 W RMS / 1000 W Peak

LF Driver

1x 12" / 30.5 cm Woofer
Magnet: Ferrite

HF Driver

1x 1.4" / 36 mm Titanium Dome Tweeter
Magnet: Ferrite

Frequency Range/Response

42 Hz to 23 kHz (-10 dB)
47 Hz to 20 kHz (-3 dB)

Speaker

Speaker Type

Active Loudspeaker

Configuration

2-Way

Enclosure Type

Bass-Reflex

Total Output Power

500 W RMS / 1000 W Peak

Amplifier Power Rating

Low Frequency (LF)
400 W RMS / 800 W Peak

Mid Frequency (MF)
100 W RMS / 200 W Peak

Amplifier Class

LF: Class-D
HF: Class-AB

Drivers

LF Driver

1x 12" / 30.5 cm Woofer
Magnet: Ferrite

HF Driver

1x 1.4" / 36 mm Titanium Dome Tweeter
Magnet: Ferrite

Performance

Frequency Range/Response

42 Hz to 23 kHz (-10 dB)
47 Hz to 20 kHz (-3 dB)

Maximum SPL

128 dB SPL

Coverage Angle

90° H x 45° V

Protections

Excursion, Output Limiter, Thermal

Signal Processing

Crossover Frequency

3000 Hz

EQ & Filters

No

Dynamic Processing

Peak Limiter

Alignment Delay

No

Digital Signal Processing

Venue Settings, Voicing Modes

Connectivity

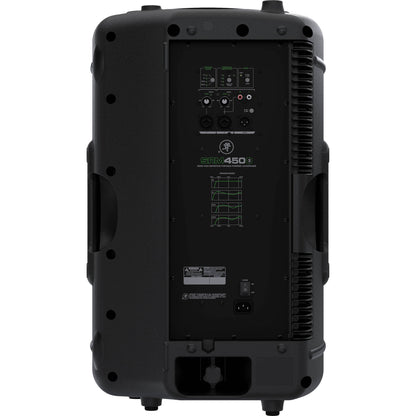

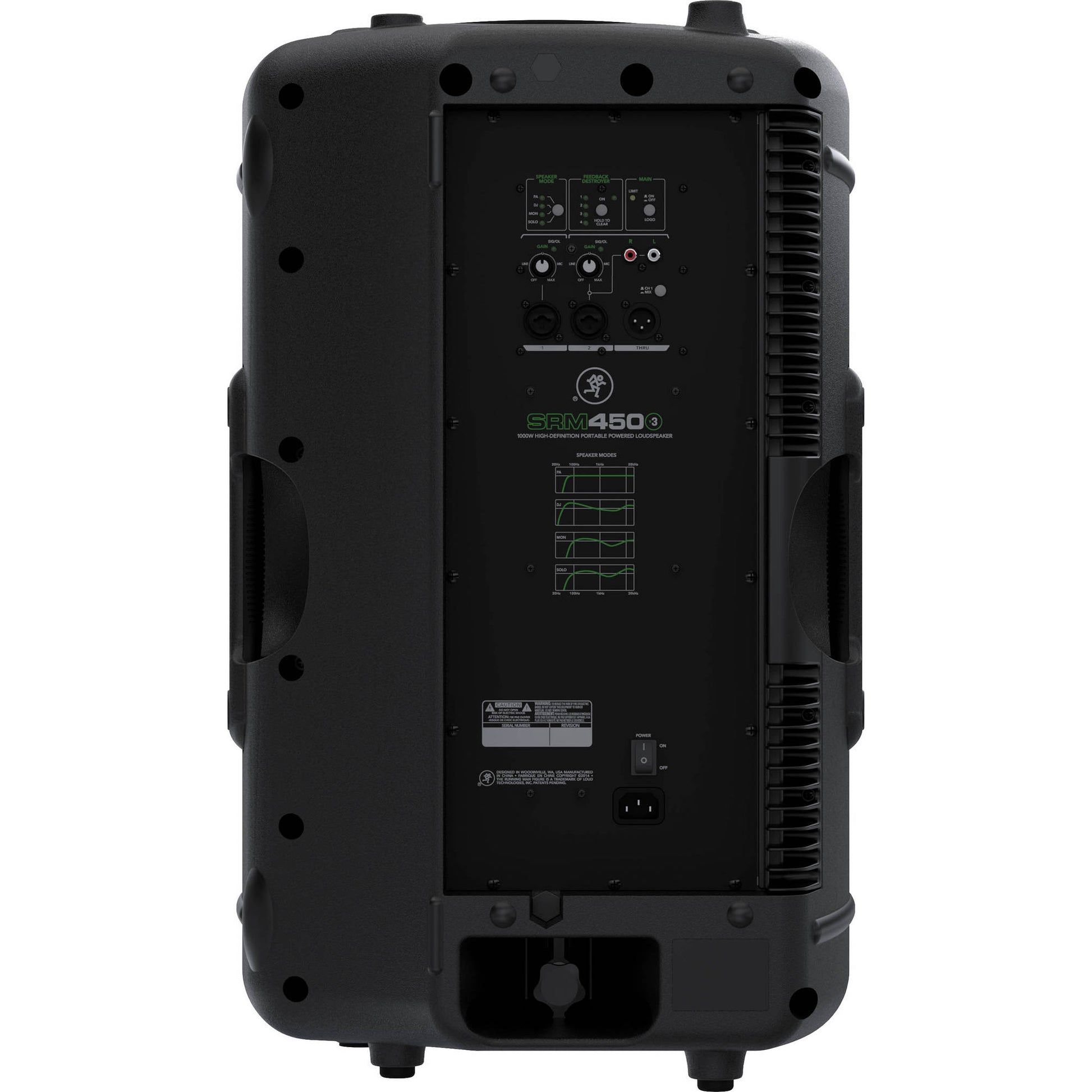

Audio I/O

2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input
1x Stereo 2RCA Aux Input
1x XLR 3-Pin Line Thru

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 120 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Power Consumption

160 W

Physical

Color

Black

Mounting

Stand Mount
1 x Pole Socket - Unspecified Size (Bottom)
Suspension Points
3 x M10 Fly Point

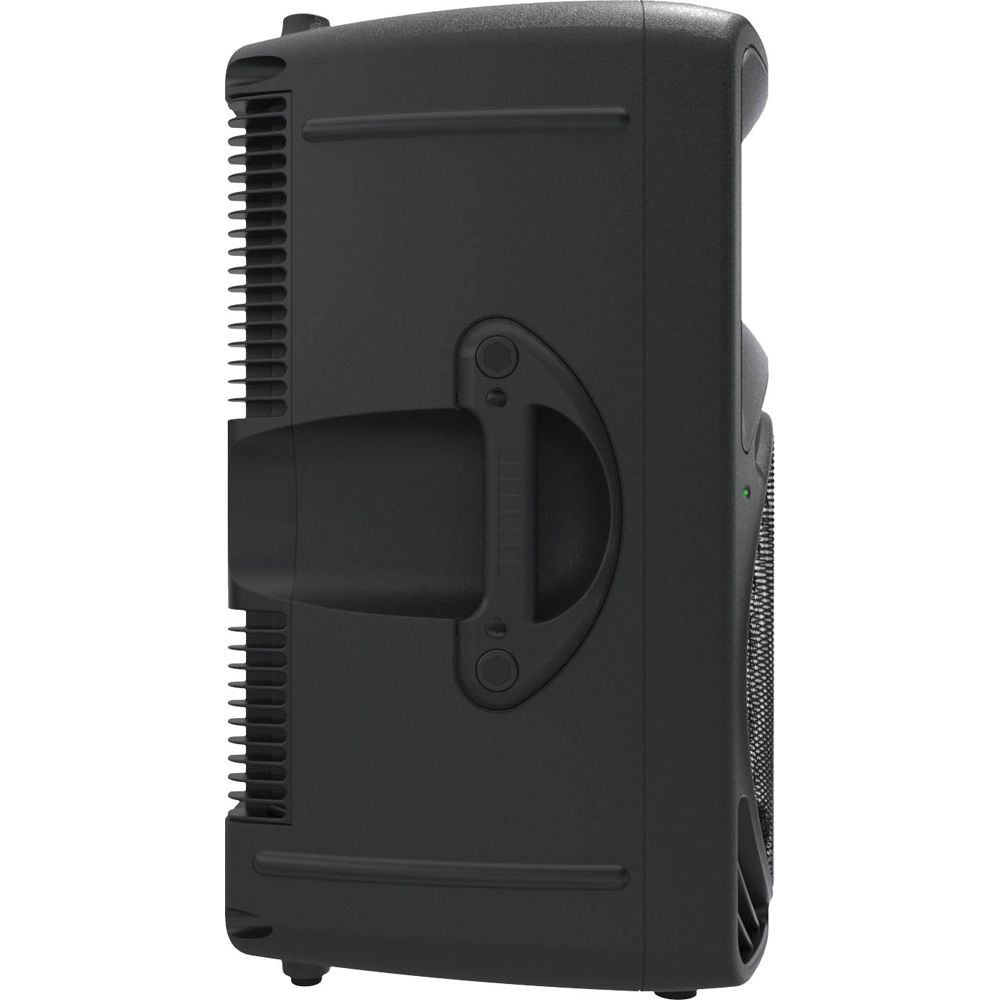

Handles

1x Each Side

Construction Material

Metal Grille, Polypropylene

Environmental Resistance

No

Dimensions

26.1 x 16 x 14.8" / 663 x 406 x 376 mm

Weight

37 lb / 16.8 kg

Packaging Info

Package Weight

41.7 lb

Box Dimensions (LxWxH)

27.5 x 16.5 x 15"
