Key Specifications

General

• Enclosure Type: Bass-Reflex
• Total Output Power: 1100 W RMS / 2500 W Peak
• Amplifier Class: Class-D

Drivers

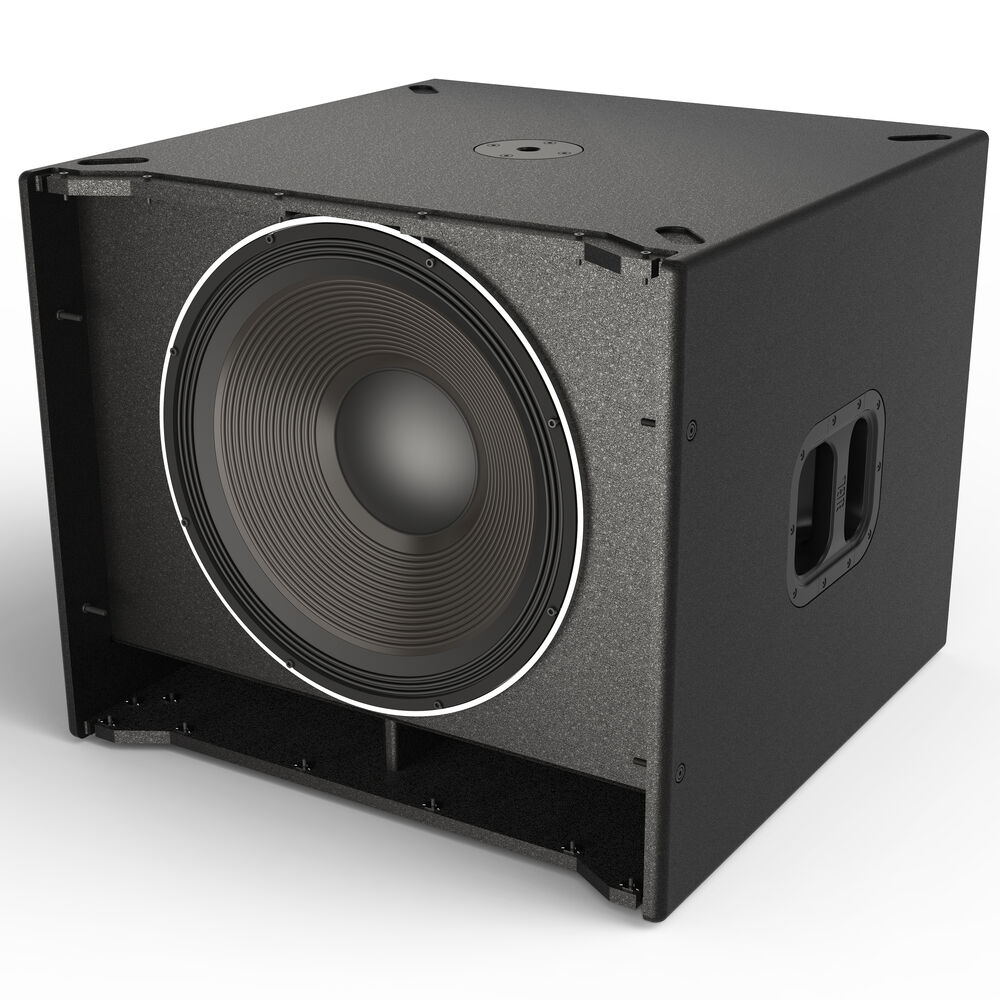

• LF Driver: 1x 18" / 45.7 cm Woofer (Voice Coil: Dual 3" / 76.2 mm, Magnet: Ferrite)

Performance

• Frequency Range/Response: 35 Hz to 90 Hz (-10 dB), 45 Hz to 80 Hz (-3 dB)
• Maximum SPL: 134 dB (Peak)

Signal Processing

• EQ & Filters: No
• Alignment Delay: Up to 2000 ms (2200' / 670.56 m)
• Digital Signal Processing: Delay, FIR Filter (Adjustable via Optional Software)

Connectivity

• Audio I/O: 2x XLR 3-Pin Line Output/Input
• Network I/O: 2x etherCON/RJ45 (Ethernet)
• USB I/O: No
• Wireless: No
• Mobile App Compatible: No

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Power I/O: 1x powerCON TRUE1 Input, 1x powerCON TRUE1 Output
• Current Consumption: 120 VAC: 4 to 18.1 A; 240 VAC: 1.9 to 7.3 A

Physical

• Color: Black
• Mounting: Integrated Rigging
• Handles: 1x Each Side
• Construction Material: Aluminum, Perforated Metal Grille, Plywood
• Environmental Resistance: No
• Dimensions: 26.9 x 26.9 x 22.6" / 683.3 x 683.3 x 574 mm
• Weight: 98 lb / 44.5 kg

Packaging Info

• Package Weight: 114 lb
• Box Dimensions (L x W x H): 32 x 31.5 x 25"
