Key Specifications

Speaker

• Speaker Type: Passive Subwoofer
• Enclosure Type: Bass-Reflex
• Total Passive Power Handling: 600 W RMS / 2400 W Peak, 1200 W Program
• Nominal Impedance: 8 Ohms

Drivers

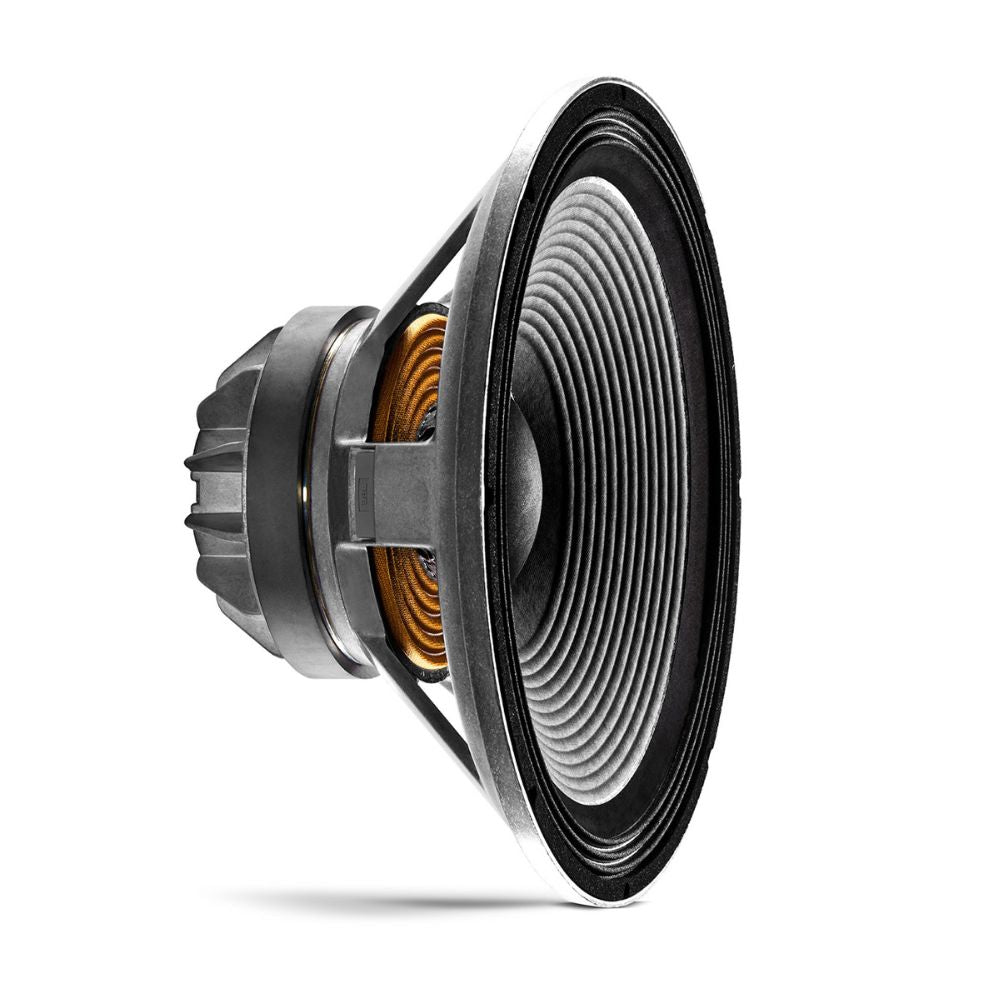

• LF Driver: 1x 18" / 45.7 cm Woofer

Performance

• Frequency Range/Response: 28 Hz to 150 Hz (-10 dB), 45 Hz to 150 Hz (-3 dB)
• Maximum SPL: 135 dB
• Speaker Sensitivity: 96 dB

Signal Processing

• Crossover Frequency: 80 Hz
• EQ & Filters: No
• Dynamic Processing: No

Connectivity

• Audio I/O: 1x speakON NL4 Input, 1x speakON NL4 Thru/Output

Physical

• Color: Black
• Mounting: 1 x M20-Threaded Pole Socket (Top)

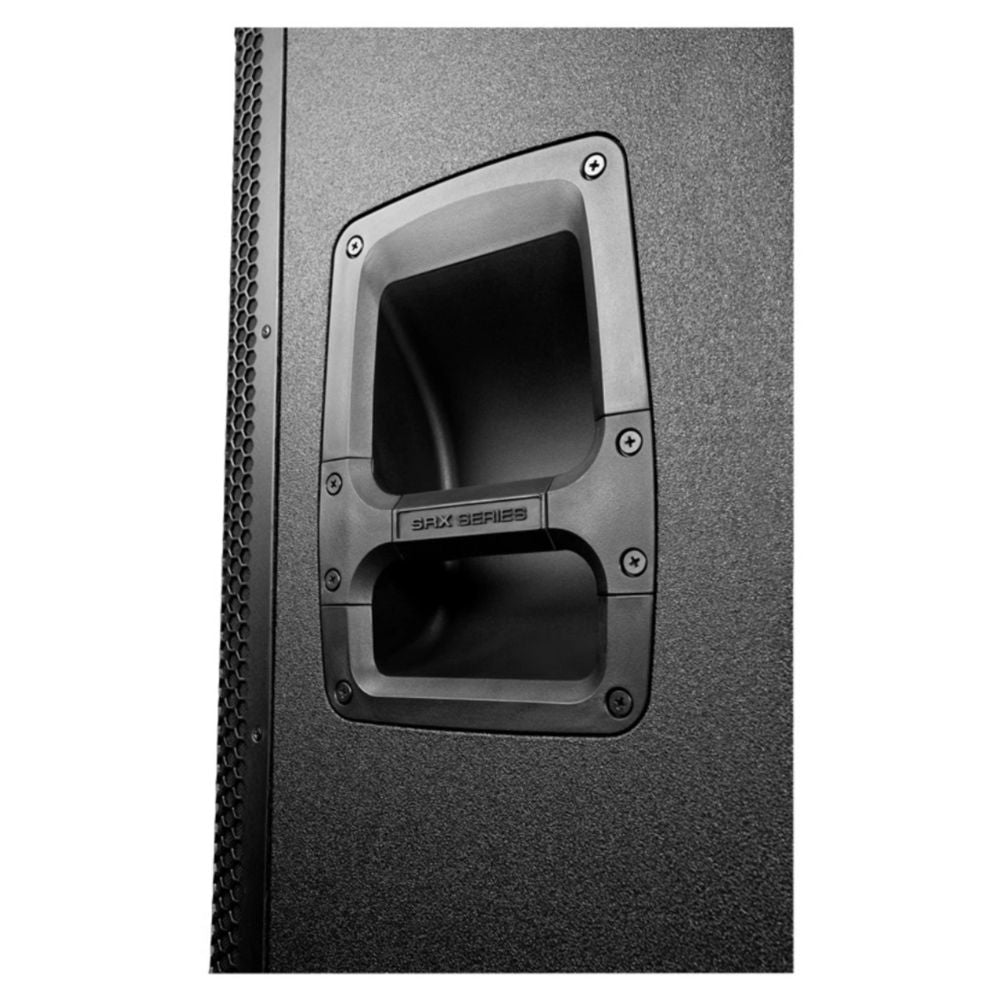

• Handles: 4
• Construction Material: Perforated Metal Grille, Plywood
• Environmental Resistance: No
• Dimensions: 26.9 x 26.9 x 22.6" / 683 x 684 x 575 mm
• Weight: 78 lb / 35.4 kg
