Key Specifications

Speaker & Amplifier

• Enclosure Type: Bass-Reflex
• Total Output Power: 1500 W Program / 2000 W Peak
• Amplifier Class: Class-D

Drivers

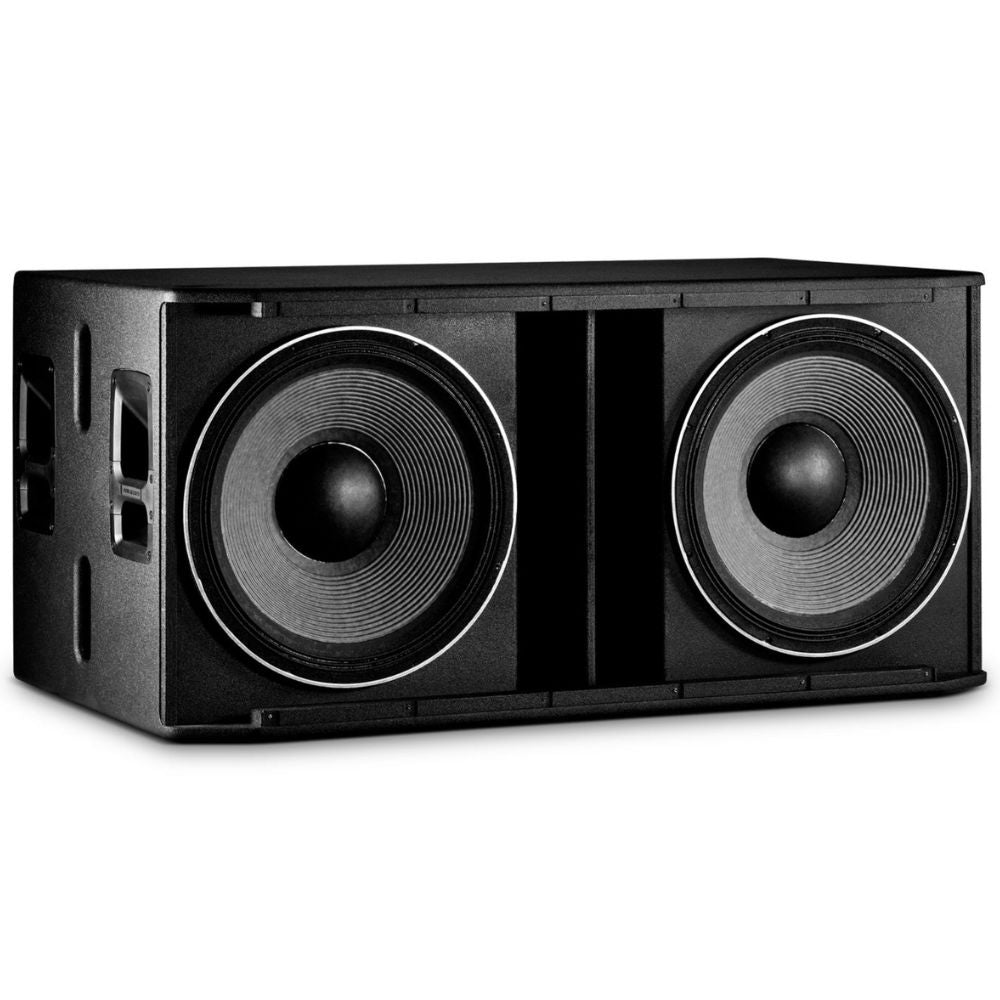

• LF Driver: 2x 18" / 45.7 cm Woofer, Voice Coil: 3" / 76.2 mm, Magnet: Ferrite

Performance

• Frequency Range/Response: 29 Hz to 150 Hz (-10 dB), 35 Hz to 150 Hz (±3 dB)
• Maximum SPL: 141 dB

Signal Processing

• Crossover Frequency: 80 Hz
• EQ & Filters: No
• Alignment Delay: Up to 2000 ms (2200' / 670.56 m)
• Digital Signal Processing: User Settings, Delay

Connectivity

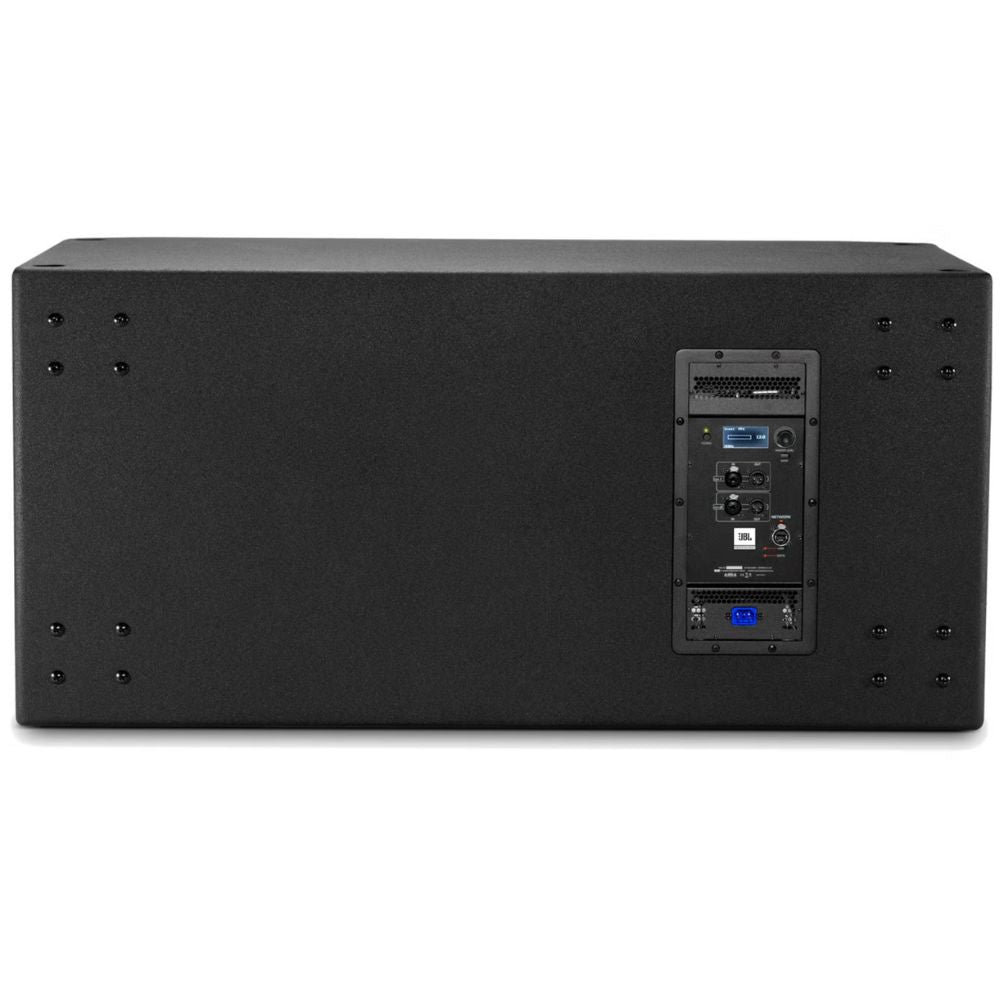

• Audio I/O: 2x Combo XLR-1/4" TRS Line Input, 2x XLR 3-Pin Line Thru
• Network I/O: 1x etherCON/RJ45 (HiQnet/Network)
• USB I/O: No
• Wireless: Wi-Fi
• Mobile App Compatible: No

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• AC Power I/O: 1x IEC Input
• Current Consumption: 120 VAC: 2.2 A (1/8 Power) / 5.6 A (1/3 Power)

Physical

• Color: Black
• Handles: 8

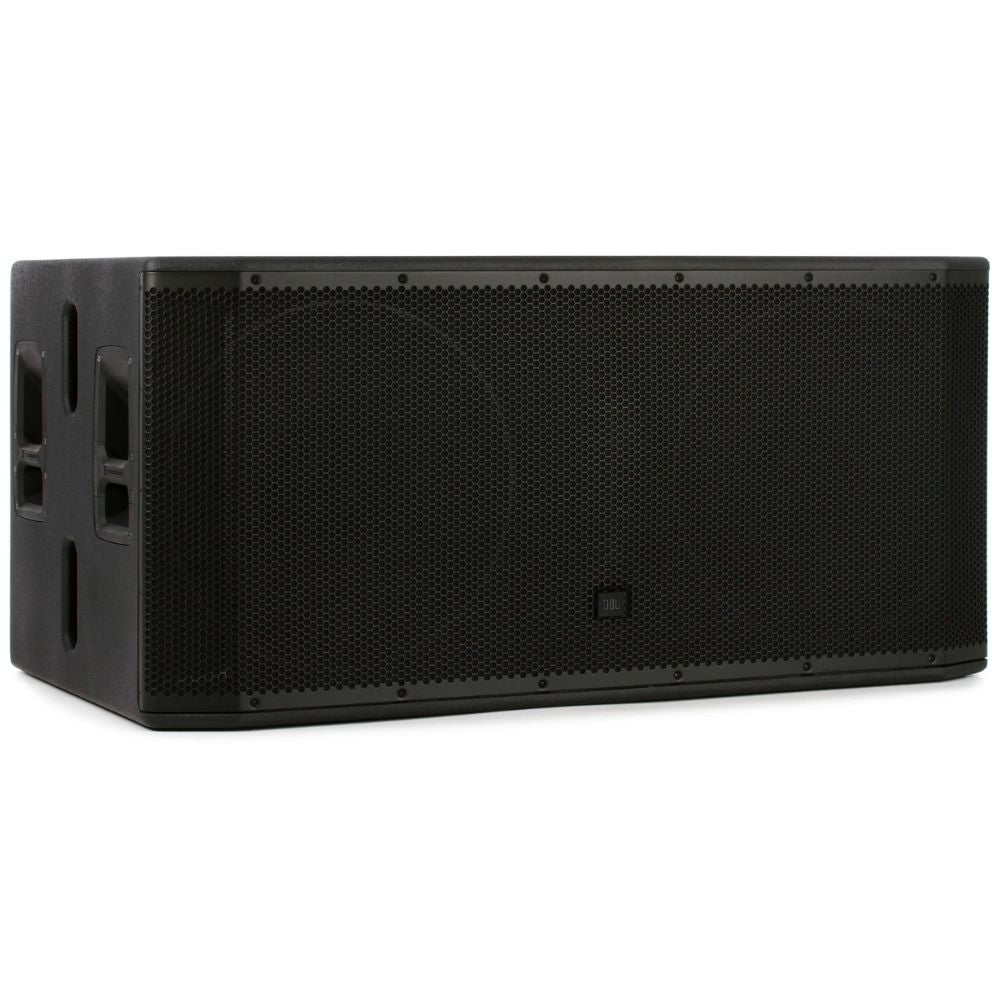

• Construction Material: Perforated Metal Grille, Plywood, Steel
• Environmental Resistance: No
• Dimensions: 26.7 x 47.4 x 22.5" / 67.8 x 120.4 x 57.1 cm
• Weight: 145 lb / 65.8 kg

Packaging Info

• Package Weight: 165 lb
• Box Dimensions (L x W x H): 52 x 31.5 x 24.5"
