Key Specifications

Microphone Type

Instrument-Mount

Polar Pattern

Cardioid / Supercardioid

Element Type

2 × Condenser, 5 × Dynamic

Sound Field

Mono

Orientation

End Address

Controls

None

Pad

No

Circuitry

Solid-State

Performance

Frequency Response

40 Hz – 13 kHz (Cardioid Condenser)
90 Hz – 13 kHz (Cardioid Dynamic)
90 Hz – 14 kHz (-6 dB, Supercardioid Dynamic)
50 Hz – 16 kHz (Cardioid Dynamic)

Maximum SPL

140 dB

Sensitivity

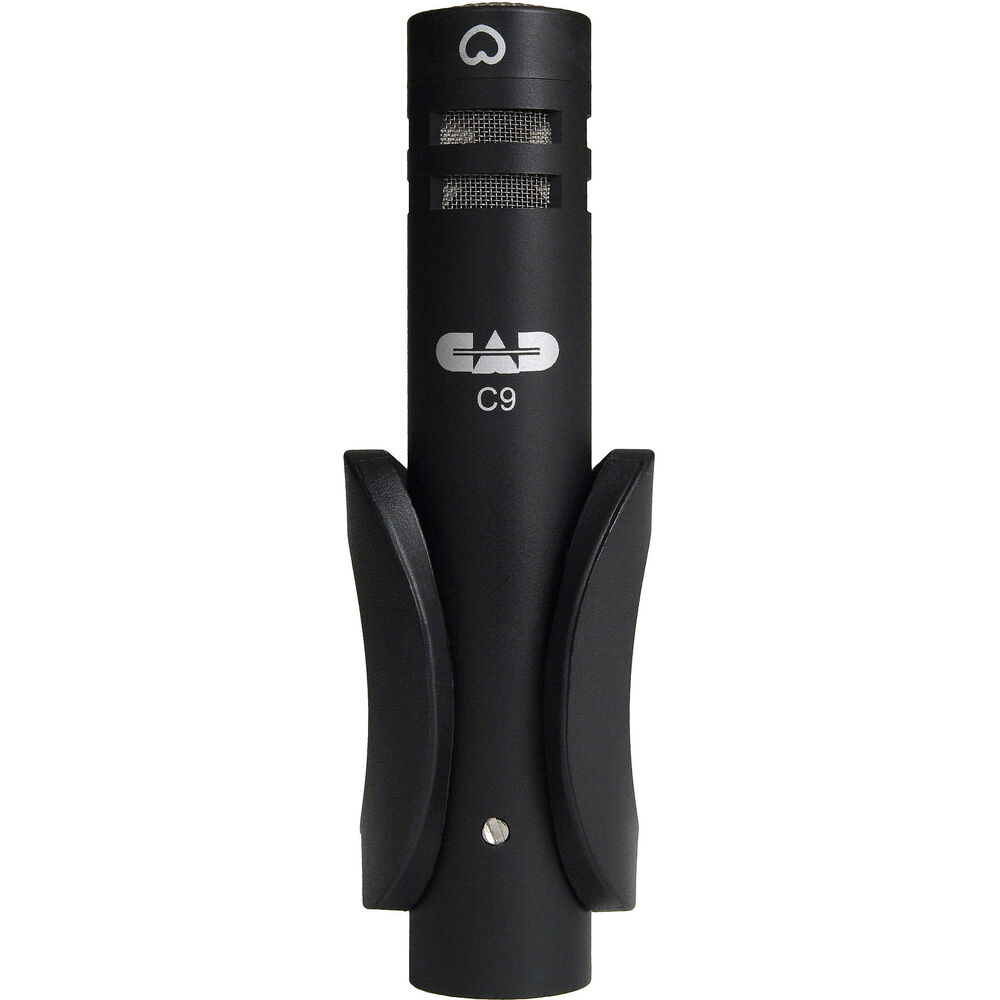

2.2 mV/Pa (C9)

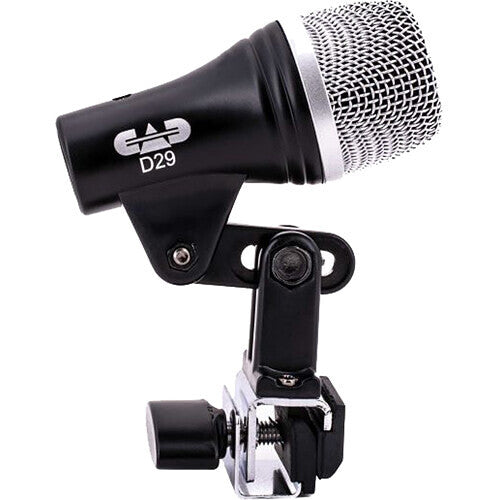

2.2 mV/Pa (D29)

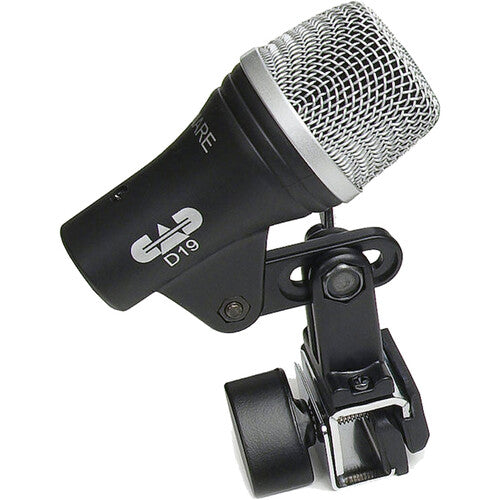

1.6 mV/Pa (D19)
0.45 mV/Pa

Equivalent Noise Level

27 dB (A-Weighted, Phantom Power)

Connectivity

Analog Output

7 × XLR 3-Pin Male

Power

Power Source

Phantom Power

Operating Voltage

12 to 48 V (Phantom Power)

Physical Specifications

Mounting Thread Size

5/8"-27 Female

Packaging Information

Package Weight

4.46 lb

Box Dimensions (L × W × H)

13.9 × 11.1 × 4.1"
