Key Specifications

Code

35965 (Black) / 36712 (White)

Configuration

2-Way Coaxial

Amplifier

Built-In Amplifier (LF/HF)

400 W / 100 W RMS

Built-In Amplifier Peak (LF/HF)

800 W / 200 W

AC Power Requirements

450 VA

Power Cord

5 m (16.4 ft)

Audio Performance

Frequency Response

60 Hz – 20 kHz (-6 dB)

Maximum SPL (Continuous / Peak)

124 dB / 130 dB

Dispersion

90° Conical (H × V)

Input Impedance

22 kΩ

Speaker Components

Low Frequency Woofer

12" Woofer with 2.5" Voice Coil

High Frequency Driver

1" Driver with 1.7" Voice Coil

Connectivity

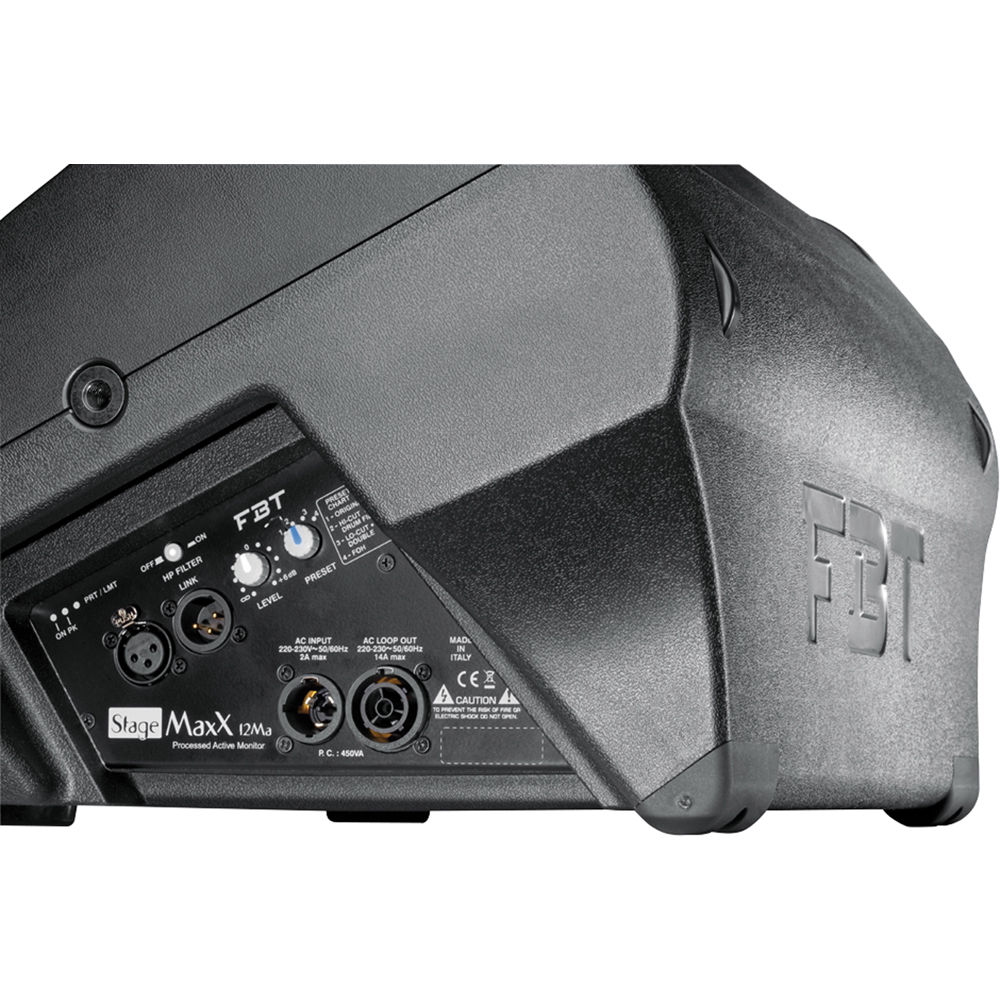

Input Connector

XLR with Loop Output

Physical Specifications

Net Dimensions (W × H × D)

550 × 289 × 392 mm (21.6 × 11.3 × 15.4 in)

Net Weight

14.6 kg (32.1 lb)

Transport Dimensions (W × H × D)

485 × 680 × 440 mm (19.1 × 26.7 × 17.3 in)

Transport Weight

17.1 kg (37.6 lb)
