Key Specifications

Frequency Response (-10 dB)

60 Hz - 20000 Hz

Max SPL @ 1m

125 dB

Coverage Angle (H x V)

90° x 90°

Power Section

Total Power Rating

180 W (Dynamic) / 100 W (Continuous)

Amplification

Class-D (LF: 150 W, HF: 30 W)

Crossover Frequency

2.0 kHz

Cooling

Natural Convection

Mixer & Processing

Mixer Channels

5 Channels (3 Mono + 1 Stereo)

Input Functions

Hi-Z (CH 2/3), 1-knob EQ/Preset (All Channels)

On-board Effects

SPX Digital Reverb, Delay, Chorus

Output Processing

Multiband Compressor (MODE: Speech/Music/Club)

Bluetooth

Ver 5.0 (A2DP, SBC, AAC) Class 1

Transducers

Configuration

2-way Coaxial Compression Driver

High Frequency (HF)

1.4" Voice Coil, 1" Throat Compression Driver

Low Frequency (LF)

8" Cone, 2.0" Voice Coil

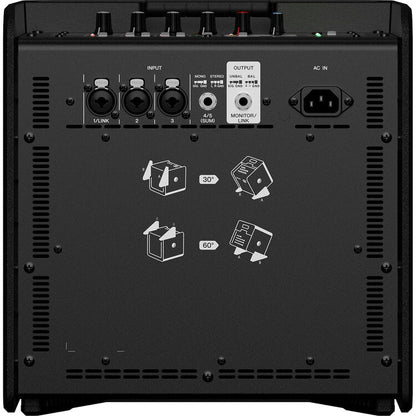

Input / Output Section

Input Connectors

3 x XLR/1/4" Combo (Mic/Line), 1 x 1/4" TRS (Stereo Line)

Output Connectors

1 x 1/4" (Monitor / Link Out)

Phantom Power

+48V (Channels 1-3)

Physical Specifications

Enclosure Material

ABS Plastic (Black)

Hardware / Options

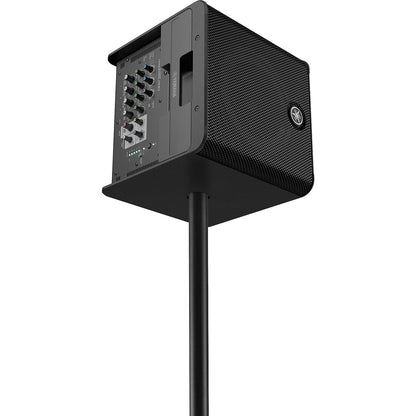

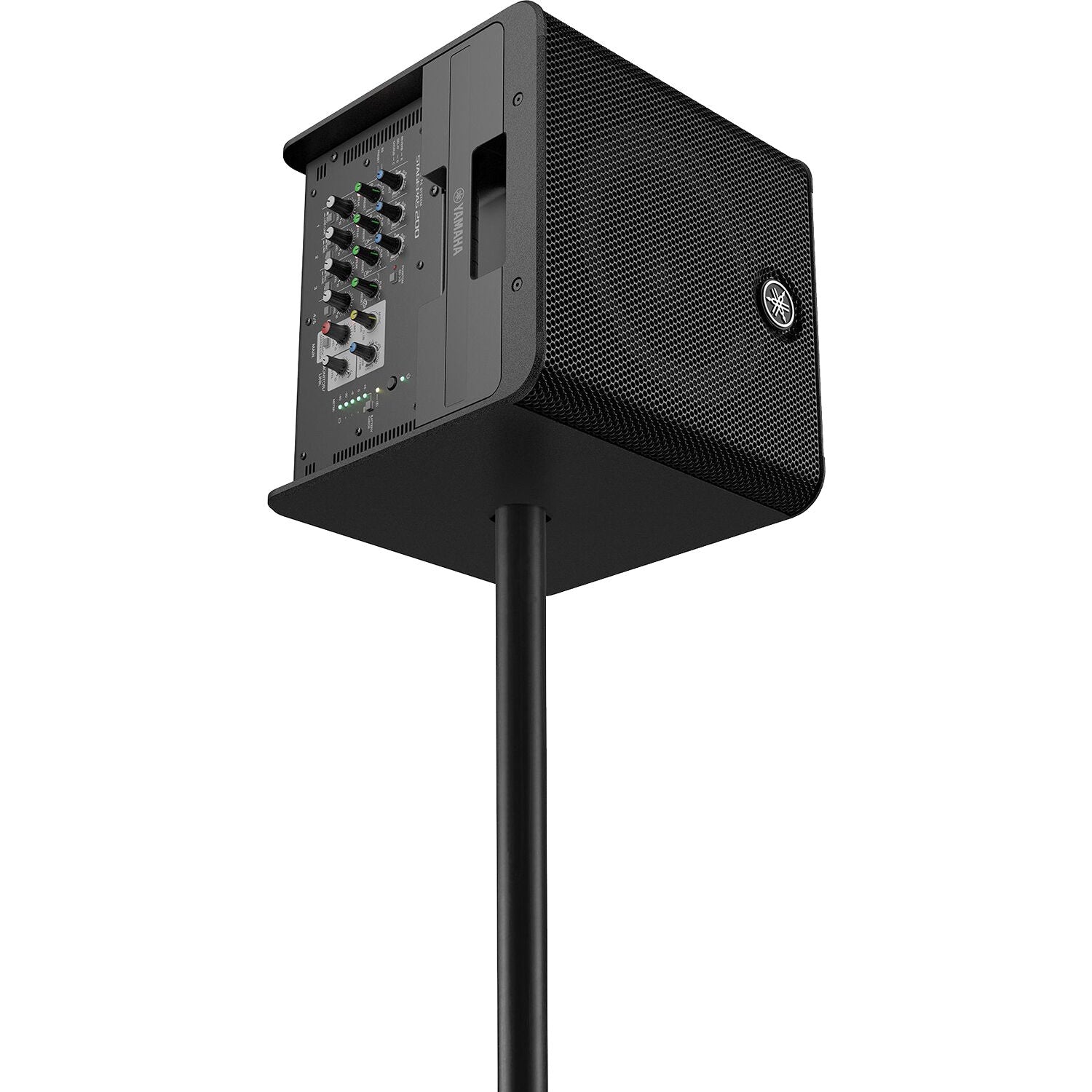

35 mm Pole Socket, Floor Monitor Feet (30°/60°)

Dimensions (H x W x D)

308 x 300 x 301 mm / 12.1 x 11.8 x 11.9 inches

Weight

12.0 kg / 26.5 lbs (Excluding battery)
