Key Specifications

Channels of I/O

Analog: 8 Inputs / 10 Outputs at 192 kHz
Digital: 10 Inputs / 10 Outputs at 48 kHz

Maximum Sampling Rate

192 kHz / 24-Bit

Number of Microphone Inputs

8

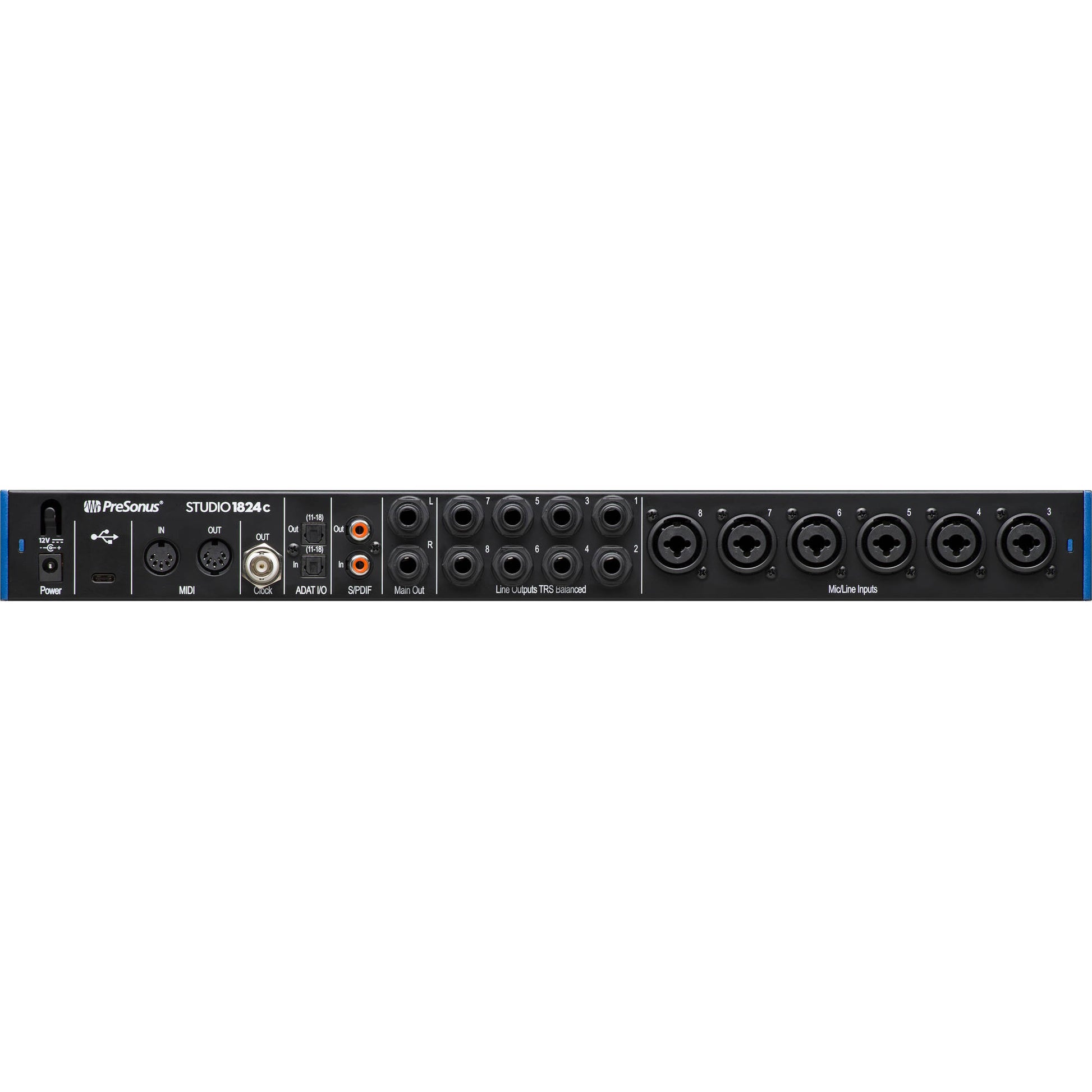

Analog Audio I/O

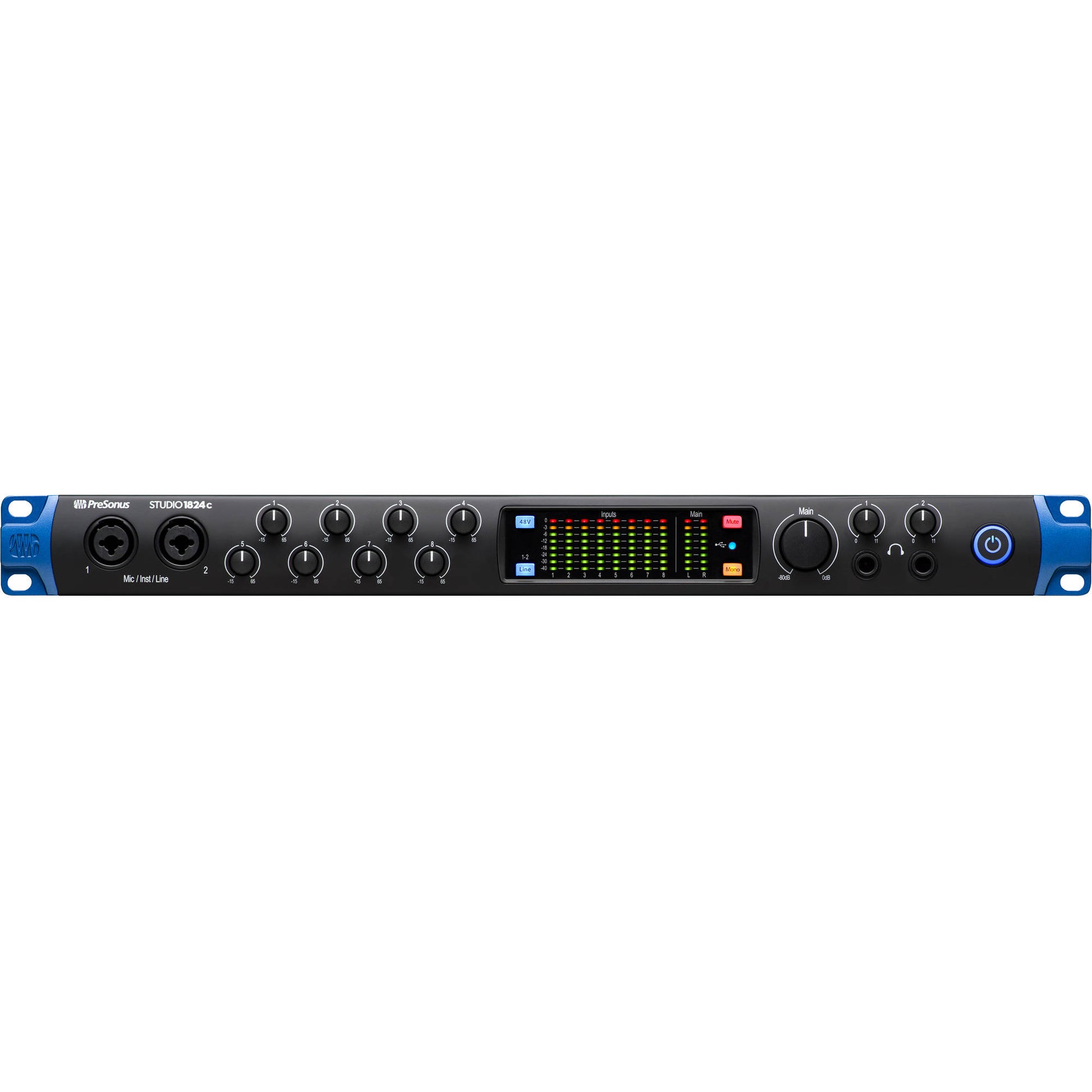

2x Combo XLR-1/4" TRS Mic/Line/Hi-Z Input (Front Panel)
6x Combo XLR-1/4" TRS Mic/Line Input
8x 1/4" TRS Line Output
2x 1/4" TRS Headphone Output
2x 1/4" TRS Monitor Output

Digital Audio I/O

1x ADAT Input / 1x ADAT Output
1x S/PDIF Input / 1x S/PDIF Output

Host Connection

1x USB-C (Class-Compliant, USB 2.0)

Phantom Power

48 V, Selectable On/Off (All Inputs)

Built-In DSP

Yes

Frequency Response

Mic, Line, Hi-Z, Line/Monitor, Headphone: 20 Hz – 20 kHz

Maximum Input Level

Mic: +16 dBu
Line: +21 dBu
Hi-Z: +15 dBu

Maximum Output Level

Line/Monitor: +18 dBu
Headphone: 150 mW per channel into 60 Ω

Impedance

Mic: 1.4 kΩ
Line: 10 kΩ
Hi-Z: 1 MΩ
Headphones: 32–600 Ω

Dynamic Range

Mic: 110 dBA
Line/Hi-Z: 112 dBA
Line/Monitor: 108 dBA
Headphones: 103 dBA
AD/DA Converters: 114 dB

THD+N

Mic: 0.005%
Line: 0.005%
Hi-Z: 0.02%
Line/Monitor: 0.004%
Headphones: 0.25%

EIN

-128 dBu A-weighted (Mic Inputs)

OS Compatibility

macOS 10.13+ / Windows 10+ / iOS / Android

Dimensions (HxWxD)

482.6 × 139.7 × 44.45 mm / 19 × 5.5 × 1.75"

Net Weight

2.2 kg / 4.8 lb

Package Weight

6.91 lb

Box Dimensions (LxWxH)

24.5 × 9.4 × 0.3"
