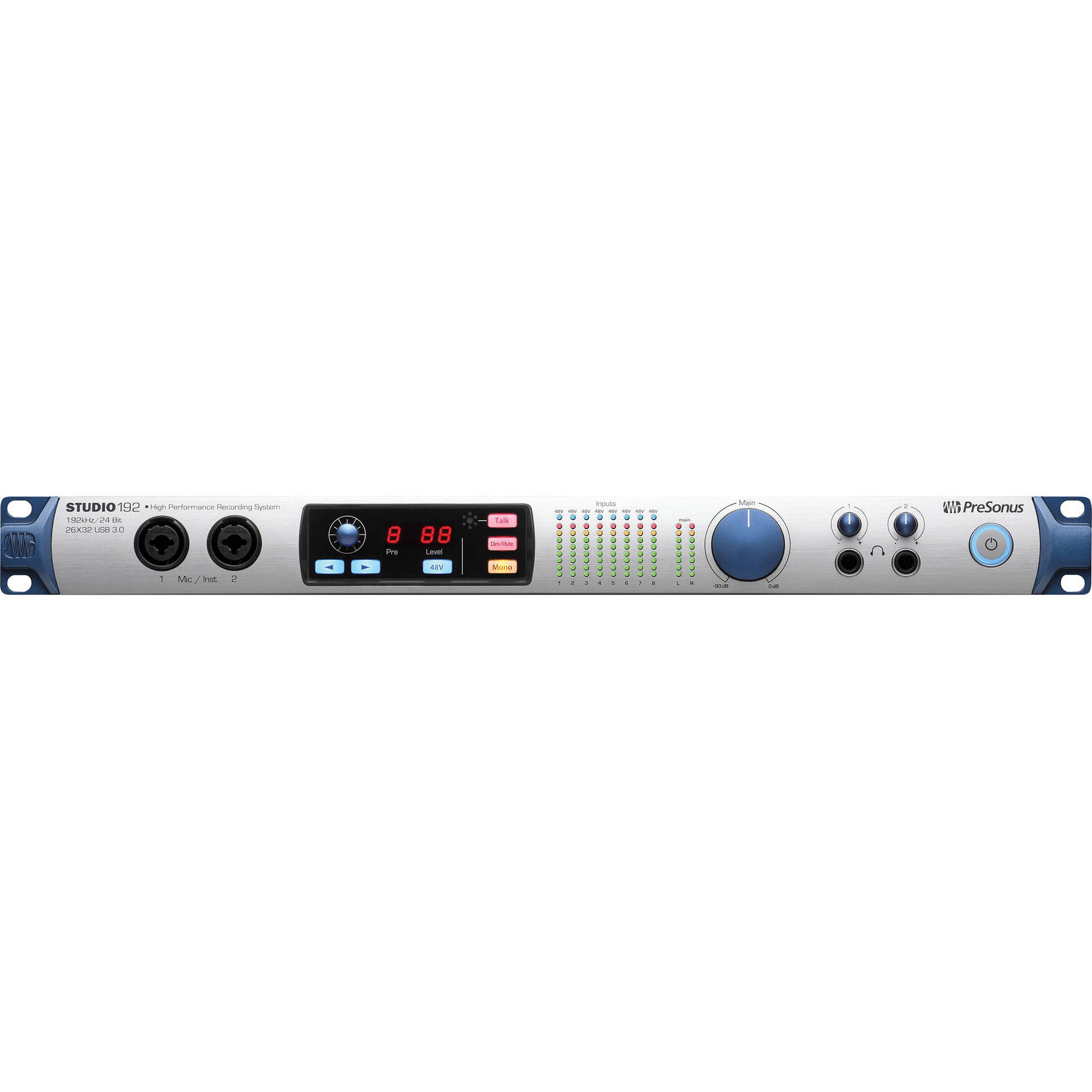

Key Specifications

Channels of I/O

26 Inputs / 32 Outputs

Maximum Sampling Rate

192 kHz / 24-Bit

Number of Microphone Inputs

8 Preamps

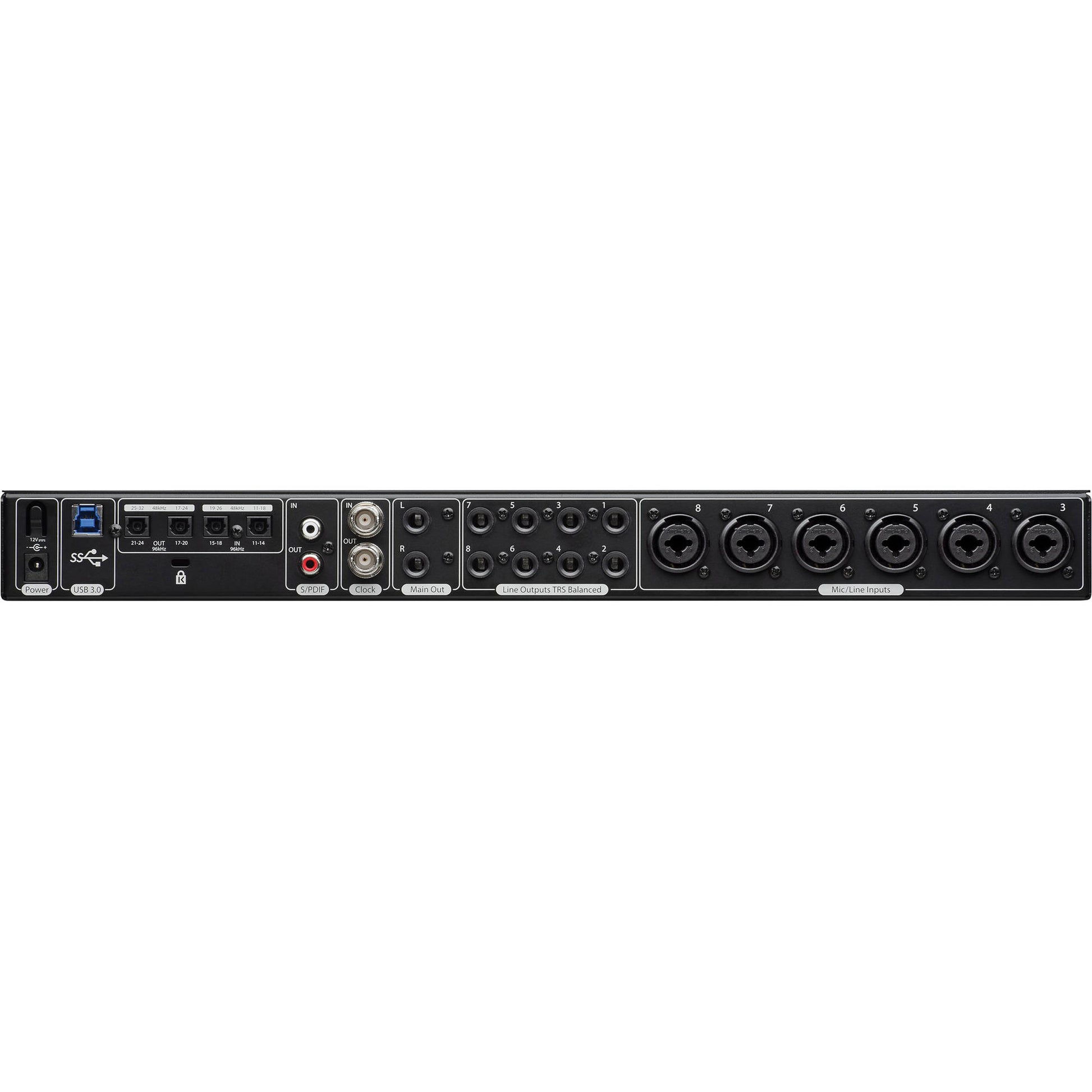

Analog Audio I/O

6x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x Combo XLR-1/4" TS Balanced/Unbalanced Mic Input
8x 1/4" TRS Balanced Line Output
2x 1/4" TRS Unbalanced Headphone Output
2x 1/4" TRS Balanced Monitor Output

Digital Audio I/O

2x TOSLINK Optical ADAT Input (S/MUX Support)
2x TOSLINK Optical ADAT Output (S/MUX Support)
1x RCA Coaxial S/PDIF Input
1x RCA Coaxial S/PDIF Output

Host Connection Protocol

USB 3.0 / 3.1 Gen 1

Sync I/O

1x BNC Word Clock Input, 1x BNC Word Clock Output

Phantom Power

+48 V ± 3 V, > 8 mA per channel

Frequency Response

Mic Inputs: 10 Hz – 40 kHz ±0.2 dB
Line Inputs: 20 Hz – 20 kHz ±0.2 dB
Hi-Z Inputs: 20 Hz – 20 kHz ±0.2 dB
Monitor Outputs: 20 Hz – 20 kHz ±0.2 dB
Headphone Outputs: 20 Hz – 20 kHz ±0.3 dB

Gain / Trim Range

Mic Inputs: 85 dB
Hi-Z Inputs: 85 dB

Maximum Input Level

Mic/Line: +12 to +18 dBu
Hi-Z Inputs: +16 dBu (Min Gain)

Maximum Output Level

Monitor Outputs: +18 dBu
Headphone Power: 150 mW per channel into 60 Ω

Impedance

Outputs: 51 Ω
Mic Inputs: 1600 Ω
Line Inputs: 10 kΩ
Hi-Z Inputs: > 1 MΩ
Word Clock: 75 Ω

Dynamic Range

A/D Converters: 118 dBA
D/A Converters: 118 dBA
Outputs: 103 dBA
Hi-Z Inputs: 110 / 105 dBA
Line Inputs: 114 / 105 dBA
Mic Inputs: 110 / 105 dBA
Monitor Outputs: 112 dBA

THD+N

All: 0.005%

EIN

Mic Inputs: <128 dBu A-Weighted

CMRR

Mic Inputs: > 55 dB

Sample Rates

44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Bit Depth

24-Bit

Processor Requirement

Intel Core 2

RAM Requirement

4 GB

Storage Requirement

20 GB

Minimum Display Resolution

1280 × 800

AC/DC Power Adapter

18 VDC at 2.6 A, Center-Positive (Included)

Rackmount Size

1U

Dimensions (HxWxD)

482.6 × 140 × 44.5 mm / 19 × 5.5 × 1.8"

Net Weight

2.2 kg / 4.9 lb

Package Weight

10.6 lb

Box Dimensions (LxWxH)

23.4 × 14.3 × 4.9"
