Key Specifications

Number of Analog Input Channels

46

Signal Processing

Gain / Trim Range

Mic: 0 dB to +60 dB

Digital Audio

Sample Rates

48 kHz

Bit Depth

AD/DA Conversion: 24-Bit

Performance

Frequency Response

Headphone Output: 20 Hz to 20 kHz ±0.5 dB
Main Output: 20 Hz to 20 kHz ±0.5 dBu (Unity Gain)

Max Input Level

Mic Input: +12 dBu at Unity Gain
RCA Input: +12 dBu

Headphone Output Power

100 mW per Channel into 60 Ohms (Max)

I/O Impedance

Mic Input: 1 Kilohms
XLR Main Output: 100 Ohms
1/4" Mix Output: 100 Ohms

SNR

Mic/Line Input to Main Output: 94 dBA at Unity Gain (+4 dBu Reference)
Headphone Output: 96 dB at Max Gain

THD

Mic Input to Main Output: < 0.005% at Unity Gain (+4 dBu, Unweighted)

THD+N

Headphone Output: 0.01% at Max Gain (Unweighted)

Connectivity

Analog Inputs

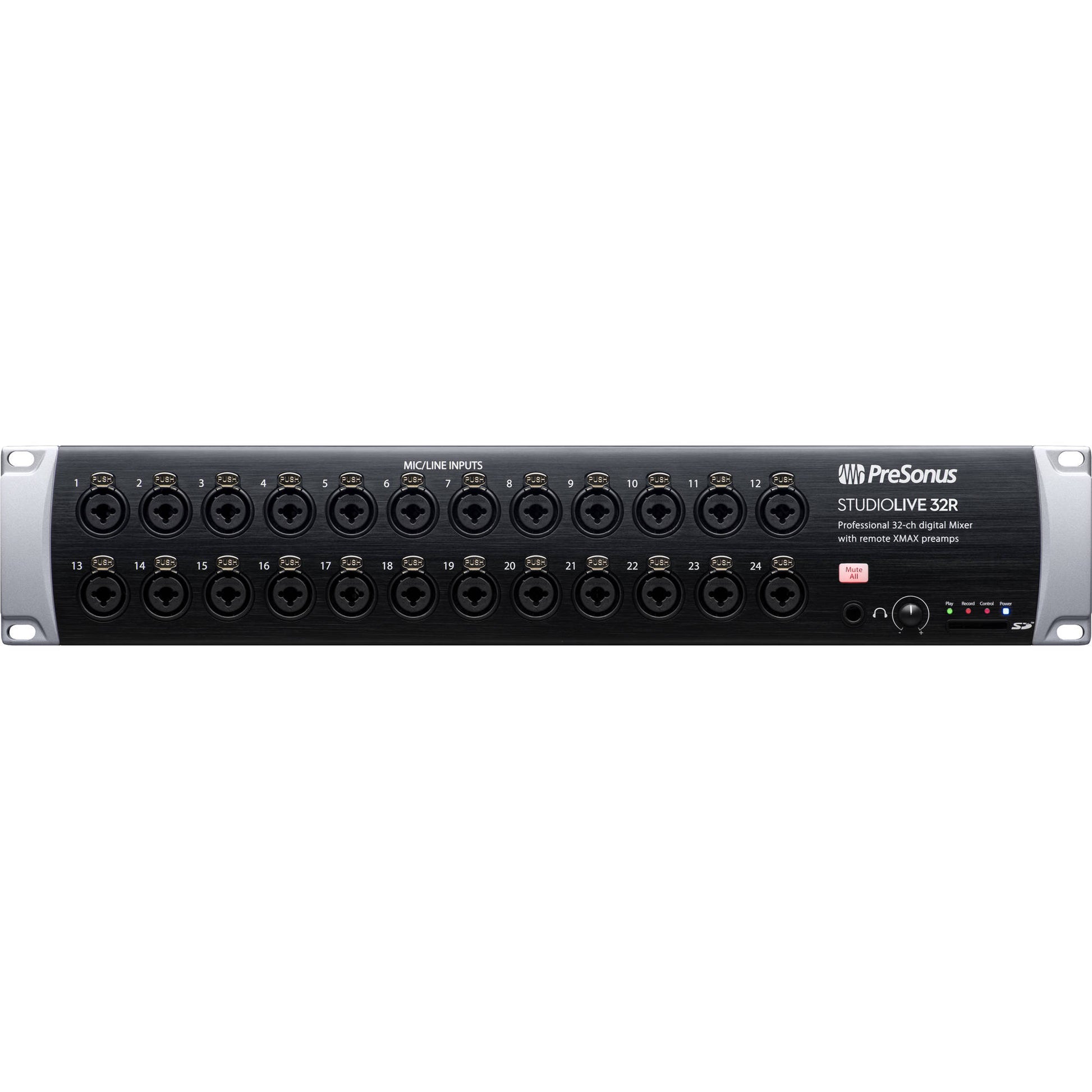

24 x Combo XLR-1/4" TRS Mic/Line Input
1 x Stereo RCA Unbalanced Input

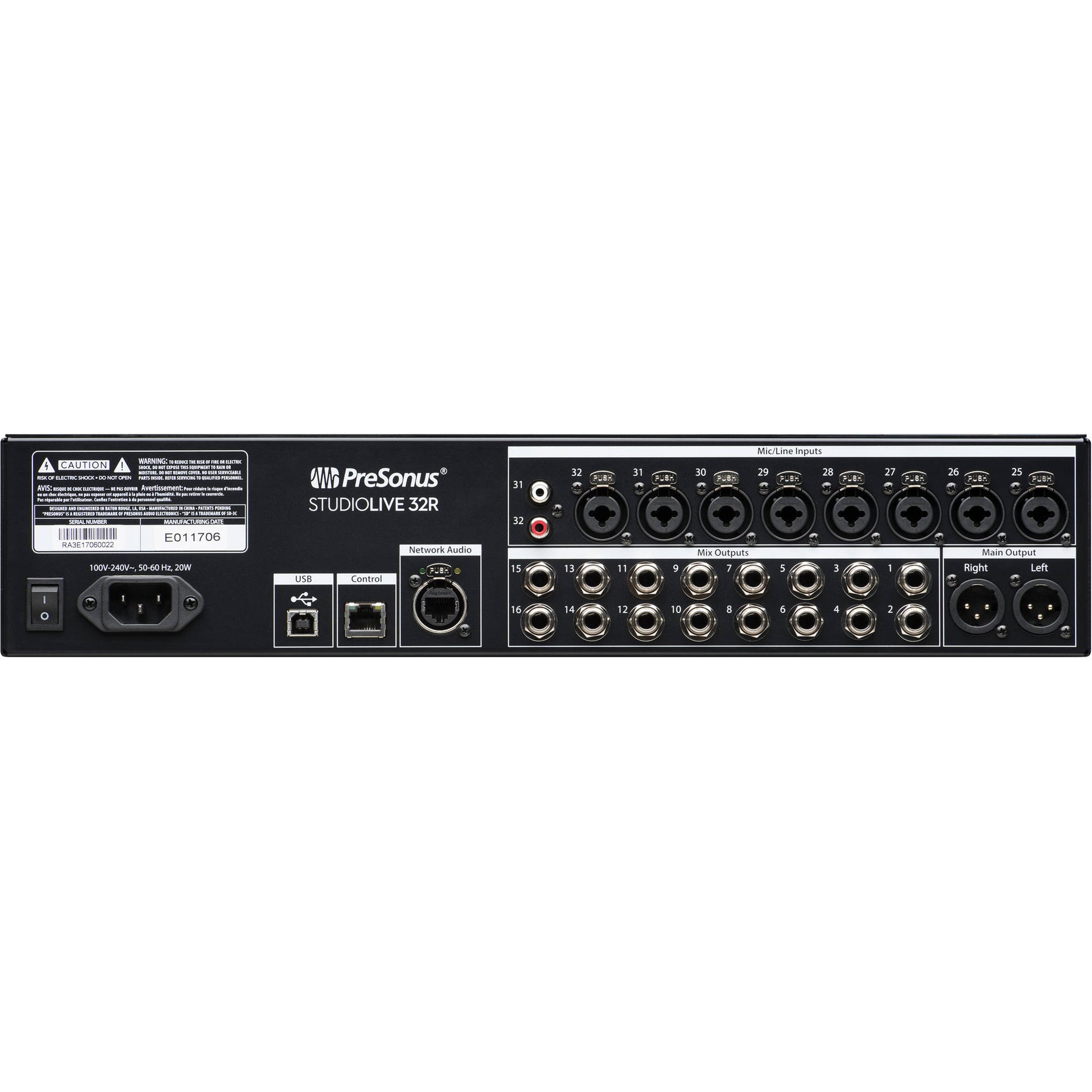

Analog Outputs

16 x 1/4" TRS Balanced Mix Output
2 x XLR Balanced Main Output
1 x 1/4" TRS Headphone Output

Phantom Power

+48 V ±2 V (Selectable on Individual Inputs)

Digital I/O

1 x RJ45 (Network)
1 x etherCON AVB

USB I/O

1 x USB-B 2.0 (Recording)

Compatibility

OS Compatibility

Windows 7 or Later
macOS 10.8 or Later

Mobile Compatibility

iOS / Android
iPad
Android Smartphone
Android Tablet

RAM Requirements

4 GB (8 GB Recommended)

Power

Input Power

90 to 230 VAC, 50 / 60 Hz

Physical

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

3.5 x 19 x 12" / 90 x 483 x 305 mm

Weight

11.2 lb / 5.1 kg

Packaging Info

Package Weight

17.75 lb

Box Dimensions (L x W x H)

24.1 x 17.7 x 8.6"
