Key Specifications

Max I/O Capacity

38x Input / 40x Output

Number of Analog Input Channels

32 (32 Mono / 0 Stereo)

Number of Mic Preamps

32

Number of Analog Output Channels

32

Mix Routing

26x Bus

Presets

Yes

Faders & Level Adjustment

33 Faders

Signal Processing

Gain / Trim Range

Mic: 0 dB to +60 dB

EQ

Input Channels: 4-Band EQ
Outputs: 6-Band EQ

Solo / Mute

Solo, Mute per Input Channel

Audio Delay

No

Automatic Mic Mixing

No

Digital Audio

Sample Rates

44.1 / 48 kHz

Bit Depth

AD/DA Conversion: 24-Bit

Performance

Frequency Response

Headphone Output: 20 Hz to 20 kHz ±0.5 dB
Mic/Line Input to Main Output: 20 Hz to 20 kHz ±0.5 dBu (Unity Gain)

Max Input Level

Mic Input: +12 dBu
Line Input: +18 dBu
Tape Input: +12 dBu

Headphone Output Power

100 mW per Channel into 60 Ohms

I/O Impedance

Mic Input: 1 Kilohms
Line Input: 10 Kilohms
XLR Output: 100 Ohms
Line Output: 100 Ohms
Tape Output: 100 Ohms

SNR

Mic/Line Input to Main Output: 94 dBA at Unity Gain (+4 dBu Reference)
Headphone Output: 96 dB at Max Gain

THD

Mic/Line Input to Main Output: < 0.005% at Unity Gain (+4 dBu, Unweighted)

THD+N

Headphone Output: 0.01% at Max Gain (Unweighted)

Signal Generator

No

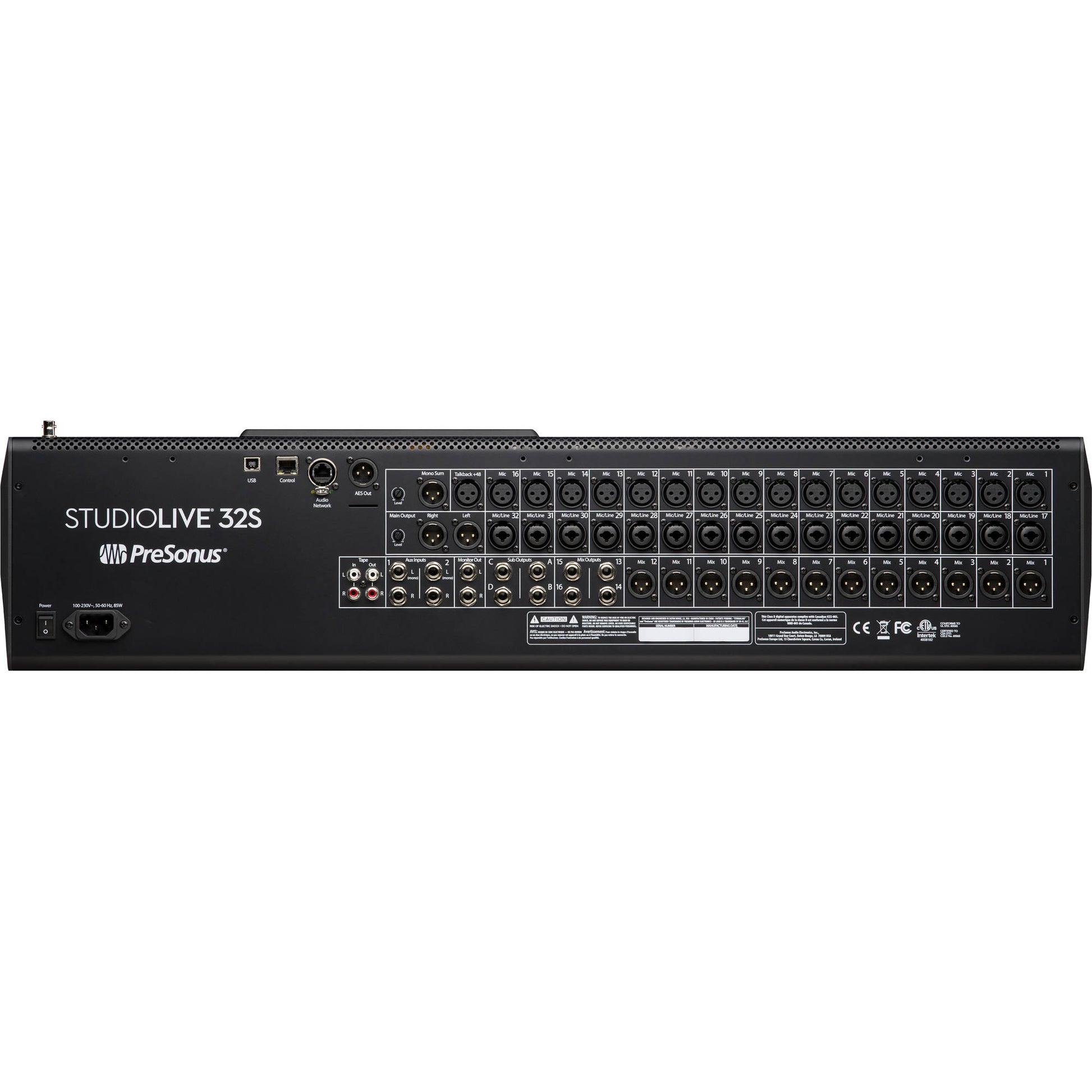

Connectivity

Analog Inputs

16 x XLR 3-Pin Mic Input
16 x Combo XLR-1/4" TRS Mic/Line Input
4 x 1/4" TRS Aux Return (2 Stereo Pairs)
1 x Stereo RCA Tape Input (1 Stereo Pair)
1 x XLR Talkback Input

Analog Outputs

12 x XLR 3-Pin Subgroup/Aux/Matrix Output
4 x 1/4" TRS Subgroup/Aux/Matrix Output
4 x 1/4" TRS Subgroup Output
2 x XLR 3-Pin Main Output
1 x XLR 3-Pin Mono-Summed Output
2 x 1/4" TRS Monitor Output
1 x 1/4" TRS Headphone Output
1 x Stereo RCA Tape Output (1 Stereo Pair)

Phantom Power

+48 V ±2 V (Selectable on Individual Inputs)

Digital I/O

1 x RJ45 (Control, 1 Gb/s)
1 x RJ45 AVB (I/O)
1 x XLR AES3 Output

MIDI I/O

No

USB I/O

1 x USB-B 2.0

USB I/O Capacity

64x Input / 64x Output

Expansion Ports

No

Wireless

Bluetooth 4.1

External Display I/O

No

Recording

Max Multitrack Recording

38 Tracks

Compatibility

OS Compatibility

macOS 10.8 or Later / Windows 7 or Later

Mobile Compatibility

iOS / Android
iPad
Android Smartphone
Android Tablet

RAM Requirements

4 GB (8 GB Recommended)

Power

Input Power

90 to 230 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

32.4 x 23 x 6.5" / 82.2 x 58.3 x 16.5 cm

Weight

37.2 lb / 16.9 kg

Packaging Info

Package Weight

52 lb

Box Dimensions (L x W x H)

37.5 x 31 x 12.5"
