Key Specifications

Max I/O Capacity

38x Input / 26x Output

Number of Analog Input Channels

16 (16 Mono / 0 Stereo)

Number of Mic Preamps

16

Number of Analog Output Channels

10

Mix Routing

16x Bus

Groups

24x DCA Group

Presets

Yes

Faders & Level Adjustment

17 Motorized Faders (Touch Sensitive)

Meters

2 x 12-Segment LED

Signal Processing

Gain / Trim Range

Up to +60 dB

Input Polarity

Normal / Reverse

Dynamic Processing

Compressor, Limiter, Gate

EQ

Input Channels: 4-Band EQ
Output Buses: 4-Band EQ

Graphic EQ

Yes

Solo / Mute

Solo, Mute per Input Channel

Audio Delay

Yes

Automatic Mic Mixing

Yes

Digital Audio

Sample Rates

44.1 / 48 kHz

Bit Depth

24-Bit

Performance

Frequency Response

20 Hz to 20 kHz ±0.5 dBu

Max Input Level

Mic: +12 dBu at Unity Gain
Line/Tape: +18 dBu at Unity Gain

Analog Dynamic Range

115 dBA

Headphone Output Power

100 mW per Channel into 60 Ohms (Max)

I/O Impedance

Mic Input: 1 Kilohm
Line Input: 10 Kilohm
Main/Mix/Monitor/Tape Output: 100 Ohms

SNR

Mic/Line Input to Main Output: 94 dBA

THD

Mic/Line Input to Main Output: 0.005% at Unity Gain

Signal Generator

Yes

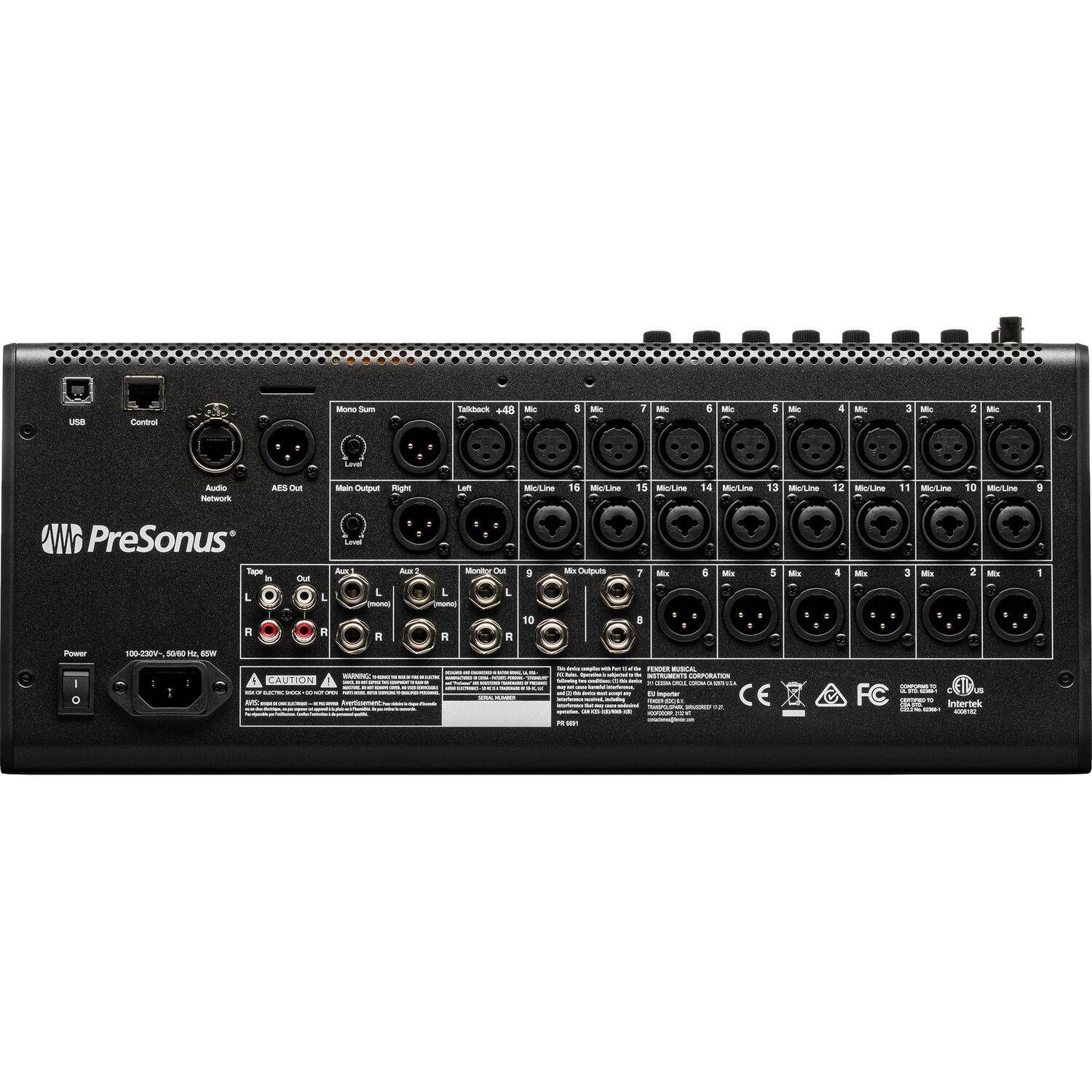

Connectivity

Analog Inputs

8 x XLR TRS Balanced Mic Input
8 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input
1 x Stereo RCA Tape Input (1 Stereo Pair)
1 x XLR Talkback Input

Analog Outputs

1 x Stereo RCA Tape Output (1 Stereo Pair)
2 x XLR 3-Pin Main Output
1 x XLR 3-Pin Mono-Summed Output
2 x 1/4" TRS Monitor Output
1 x 1/4" TRS Headphone Output
6 x XLR 3-Pin Subgroup/Aux/Matrix Output
4 x 1/4" TRS Subgroup/Aux/Matrix Output

Phantom Power

+48 V ±2 V (Selectable on Individual Inputs)

Digital I/O

1 x RJ45 (Control, 1 Gb/s)
1 x RJ45 AVB (I/O)
1 x XLR AES3 Output

MIDI I/O

No

USB I/O

1 x USB-B 2.0

Expansion Ports

No

Wireless

No

External Display I/O

No

Recording

Max Multitrack Recording

34 Tracks

Media Support

SD, USB Drive

Compatibility

OS Compatibility

macOS 10.8 or Later / Windows 7 or Later

Mobile Compatibility

iOS / Android
iPad
Android Smartphone
Android Tablet

RAM Requirements

4 GB (8 GB Recommended)

Power

Input Power

90 to 230 VAC, 50 / 60 Hz

Physical

Rack Mountable

Yes

Operating Conditions

32 to 104°F / 0 to 40°C

Dimensions

17.6 x 6.5 x 23" / 44.7 x 16.5 x 58.4 cm

Weight

23.1 lb / 10.5 kg

Packaging Info

Package Weight

32.82 lb

Box Dimensions (L x W x H)

31.6 x 23.25 x 12.5"
