Key Specifications

Performance

• Frequency Response: 35 Hz - 120 Hz
• Max SPL @ 1m: 133 dB

Transducers

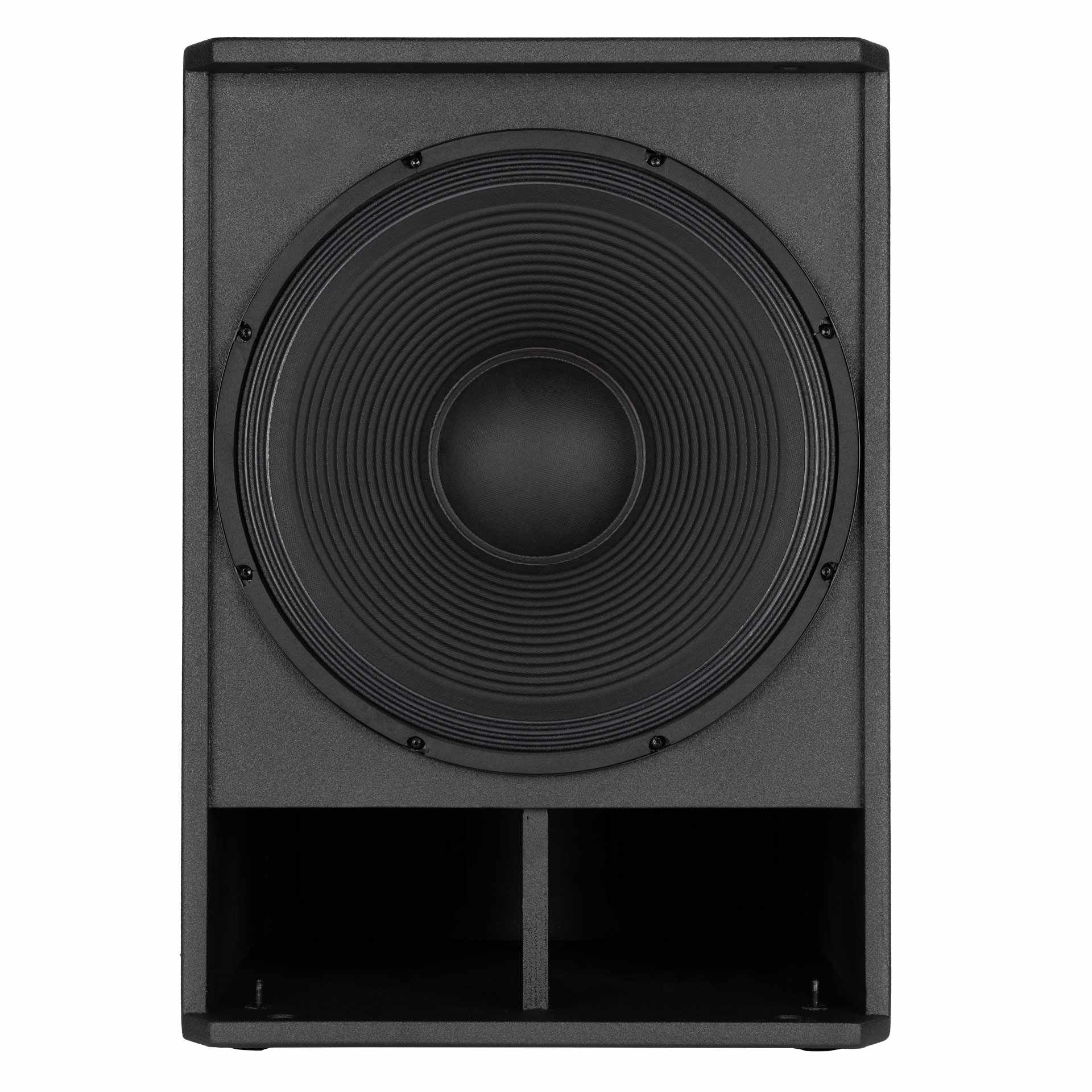

• Woofer: 1 x 15'', 3.0'' v.c.

Digital Mixing & Processing

Mixer Section

• Inputs: Dual Combo XLR/Jack (bal/unbal)
• Digital Features: 8-band Parametric EQ, Routing, Snapshots
• Remote Control: Bluetooth® via LiveRemote App

DSP & Control

• Interface: Color Touch Screen & Data Encoder
• Functions: Cardioid Mode, Alignment Delay, Crossover Presets
• Alignment: Top/Sub time-alignment in m, ft, or ms

Power Section

Amplification

• Total Power: 2200 W Peak / 1100 W RMS
• Cooling: Convection
• Protections: Thermal, RMS
• Limiter: Soft Limiter

Input / Output Section

• Output Connectors: Dual XLR Link, Dual XLR Xover Out
• Input Sensitivity: -2 dBu / +4 dBu
• Power: Powercon TRUE1 TOP IN/OUT

Physical Specifications

Construction

• Cabinet: Plywood / Steel Grille
• Hardware: M20 threaded pole mount

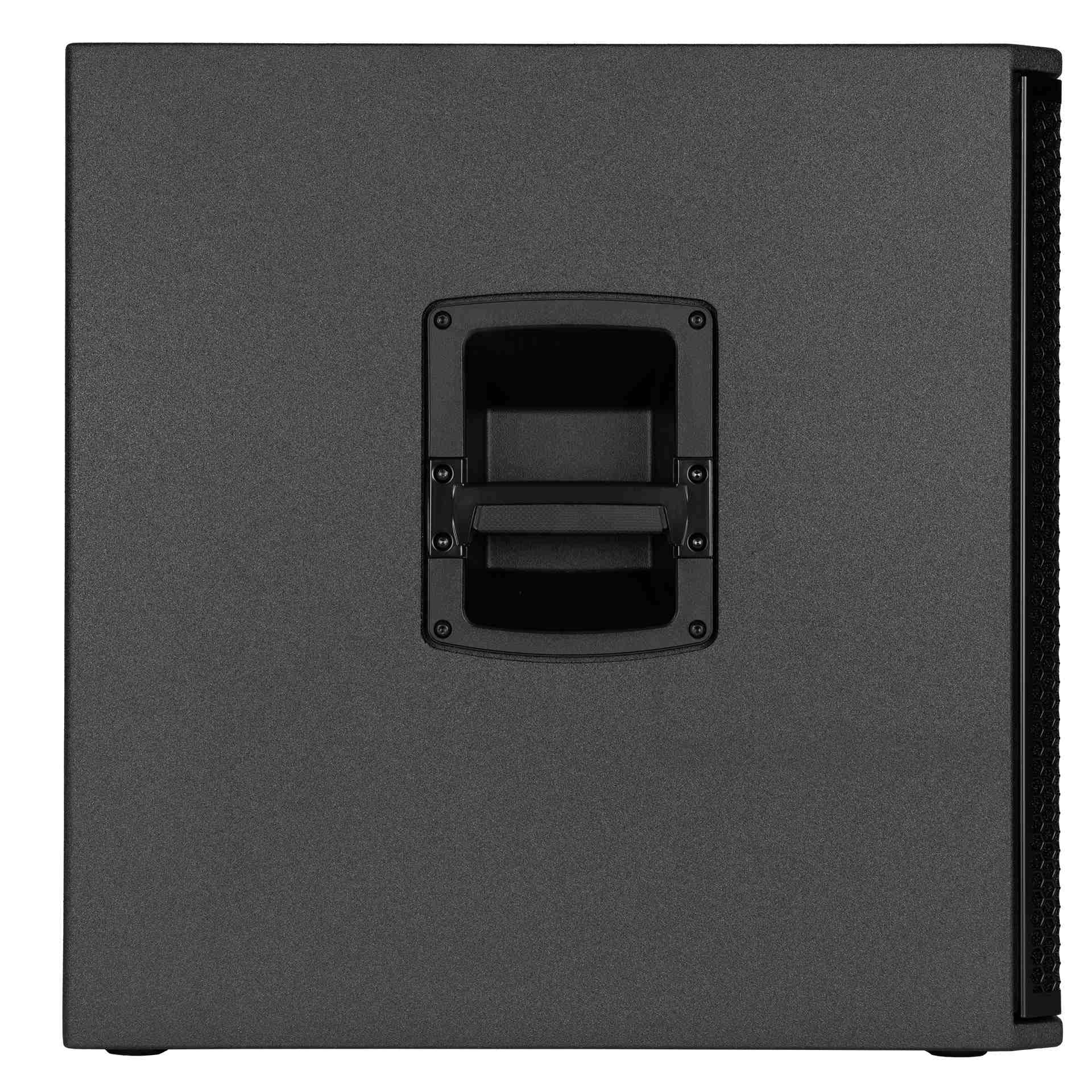

• Handles: One per side
• Color Options: Black, White

Size / Weight

• Dimensions: 16.54 x 23.23 x 23.23" / 420 x 590 x 590 mm
• Weight: 69.23 lbs / 31.4 kg

Packaging Info

• Package Weight: 80.47 lbs / 36.5 kg
• Box Dimensions: 25.59 x 25.2 x 18.9"
