Key Specifications

Performance

• Frequency Response: 35 Hz - 120 Hz
• Max SPL @ 1m: 135 dB

Transducers

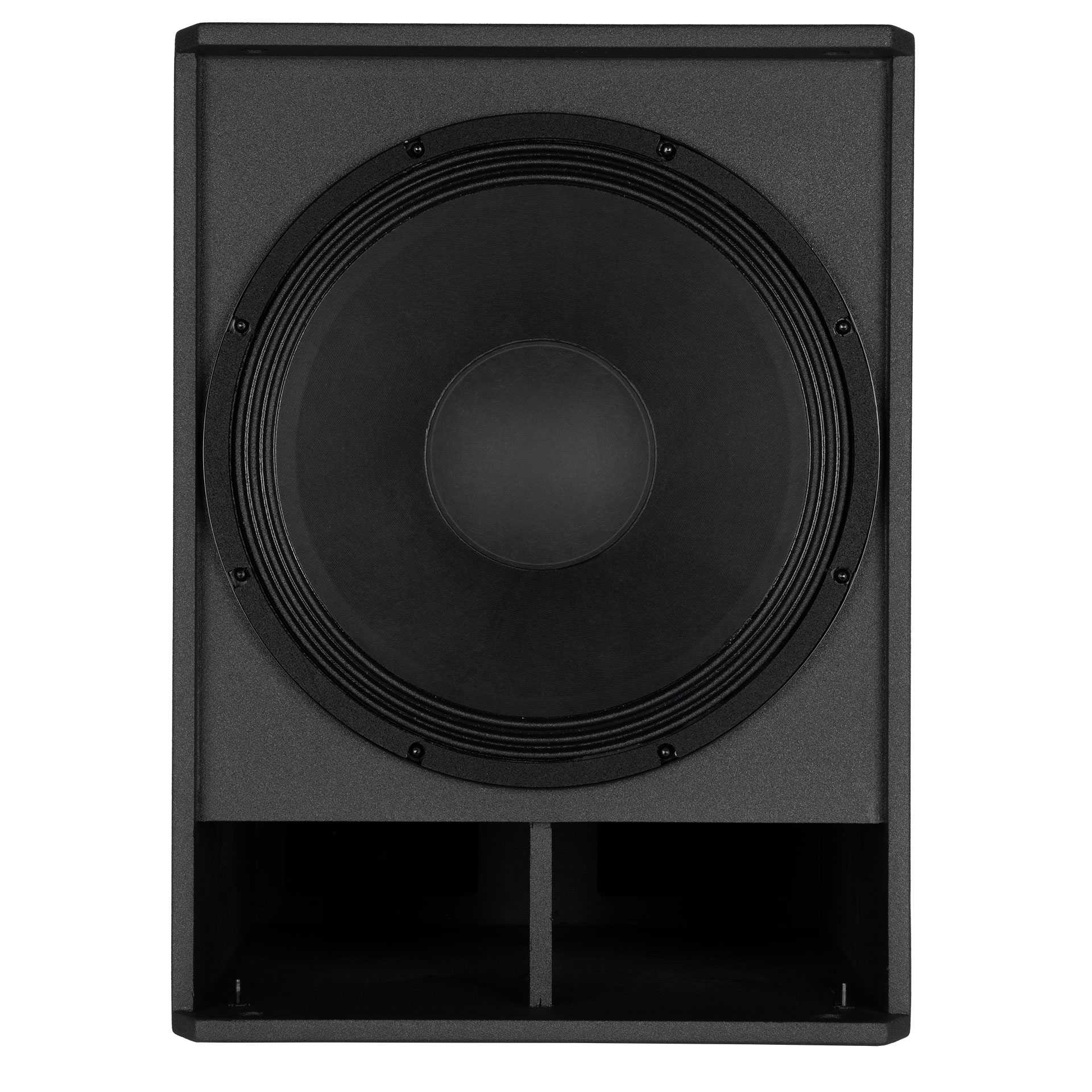

• Woofer: 1 x 18'', 4.0'' v.c.

Digital Mixing & Processing

Mixer Section

• Features: 8-band Parametric EQ, Routing, Delays
• Remote Control: Bluetooth® via LiveRemote App
• Management: 8 Recallable Snapshots

DSP & Control

• Interface: 2.4" Color Touch Panel & Rotary Encoder
• Alignment: Top/Sub Alignment (m, ft, ms)
• Presets: Internal crossover presets for RCF speakers
• Functions: Cardioid Mode, L/R Balance for 2.1 systems

Power Section

Amplification

• Total Power: 2200 W Peak / 1100 W RMS
• Cooling: Convection
• Protections: Thermal, RMS
• Limiter: Soft Limiter

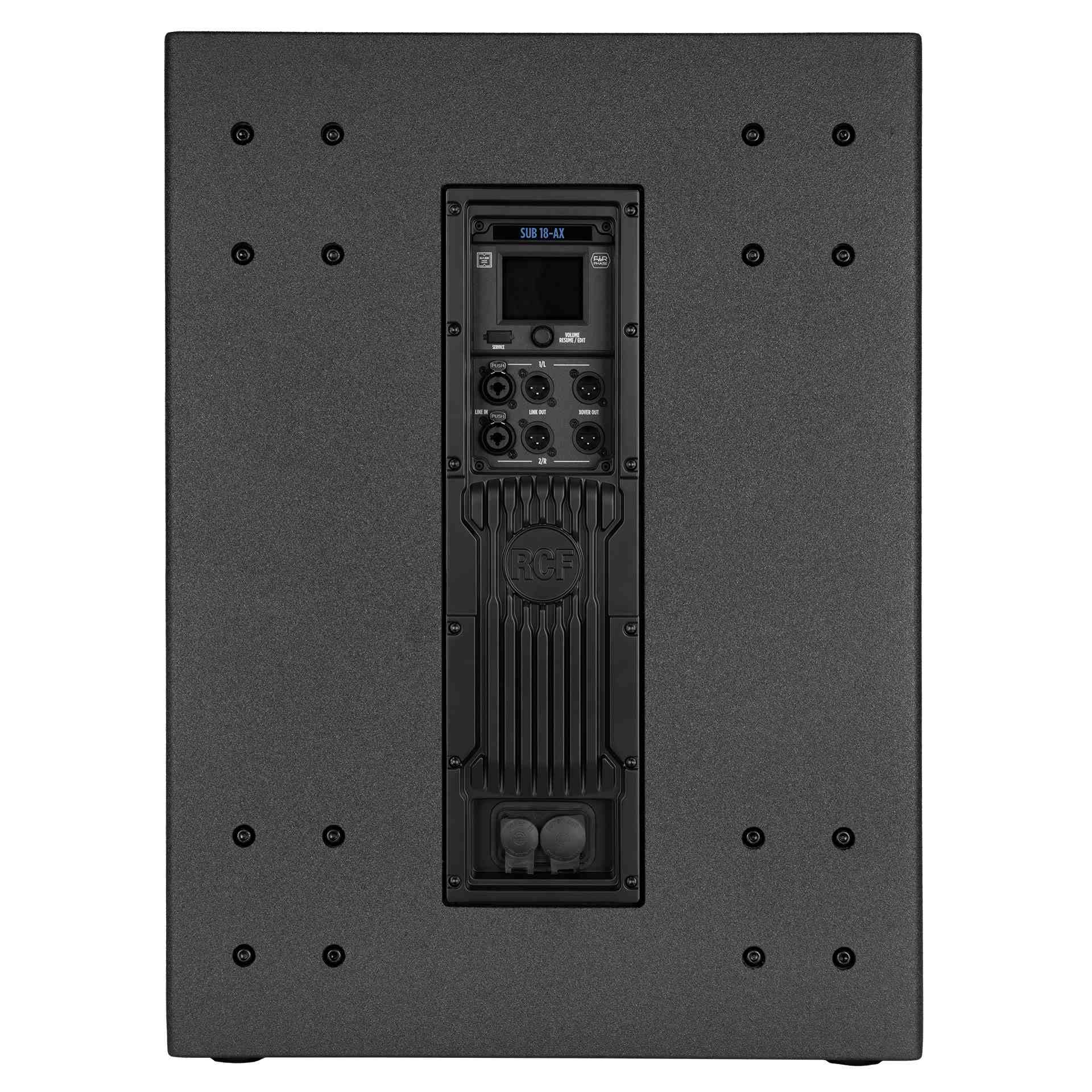

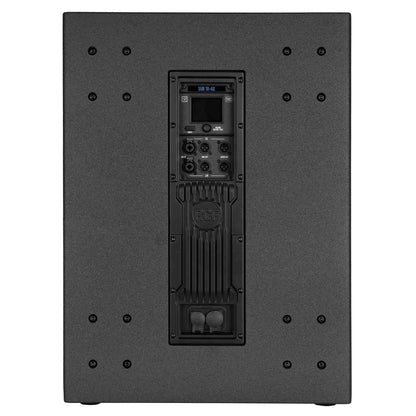

Input / Output Section

• Input Connectors: Dual Combo XLR/Jack (bal/unbal)
• Output Connectors: Dual XLR Link, Dual XLR Xover Out
• Sensitivity: -2 dBu / +4 dBu
• Power: Powercon TRUE1 TOP IN/OUT

Physical Specifications

Construction

• Cabinet: Plywood with Polyurea finish

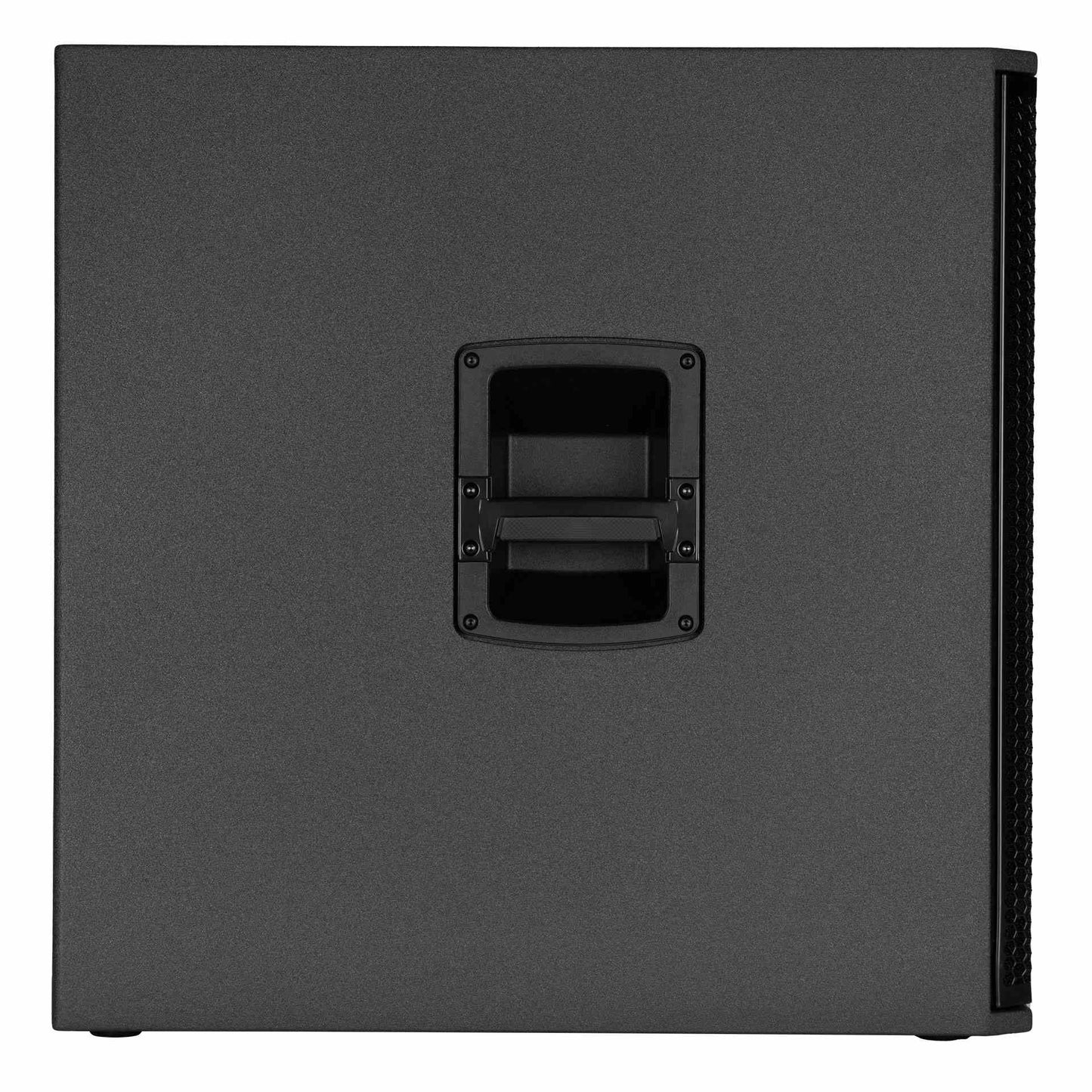

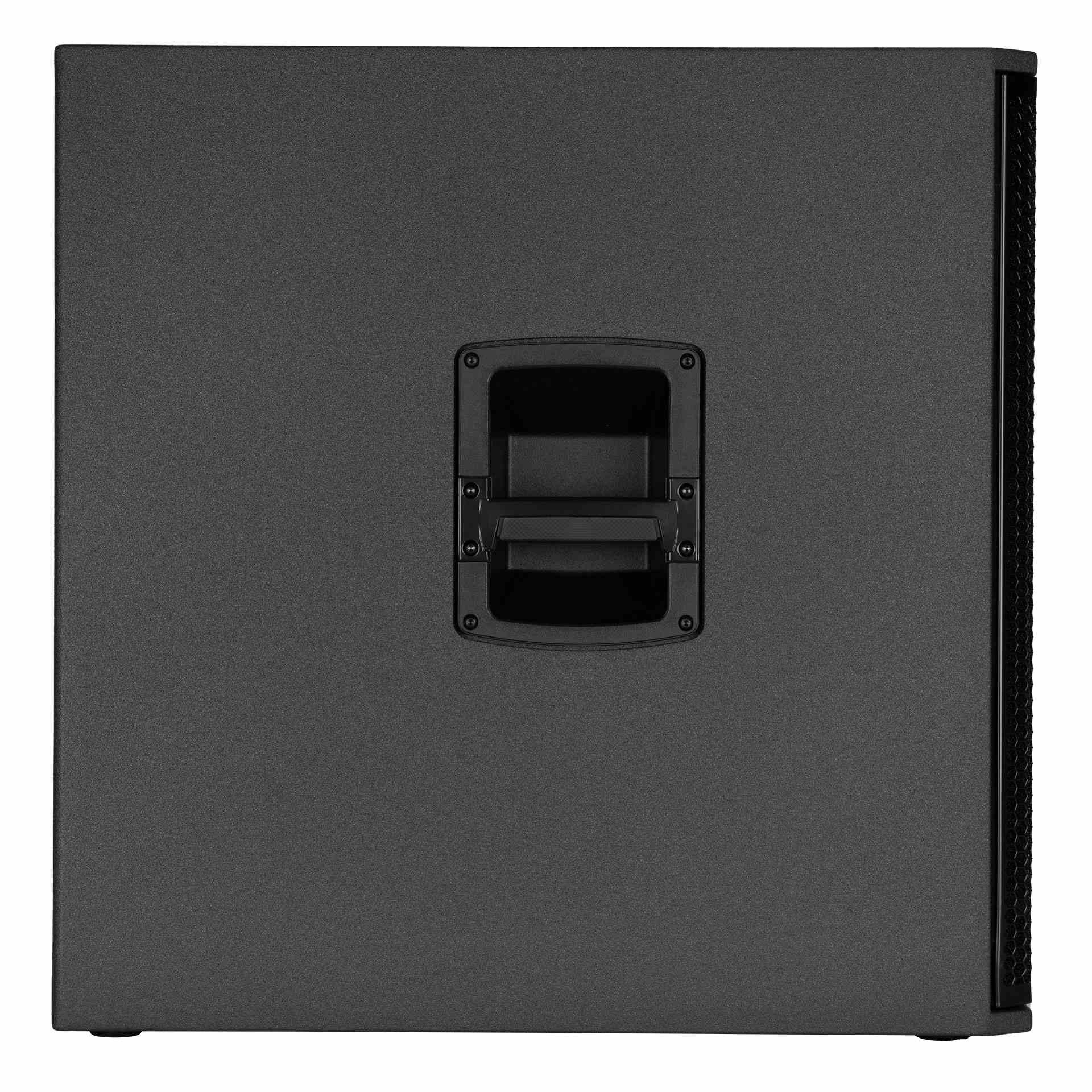

• Handles: One per side with rubber grips
• Hardware: M20 threaded pole mount
• Color: Black or White available

Size / Weight

• Dimensions: 19.88 x 27.28 x 26.97" / 505 x 693 x 685 mm
• Weight: 94.58 lbs / 42.9 kg

Packaging Info

• Package Weight: 108.03 lbs / 49 kg
• Box Dimensions: 29.33 x 28.94 x 22.24"
