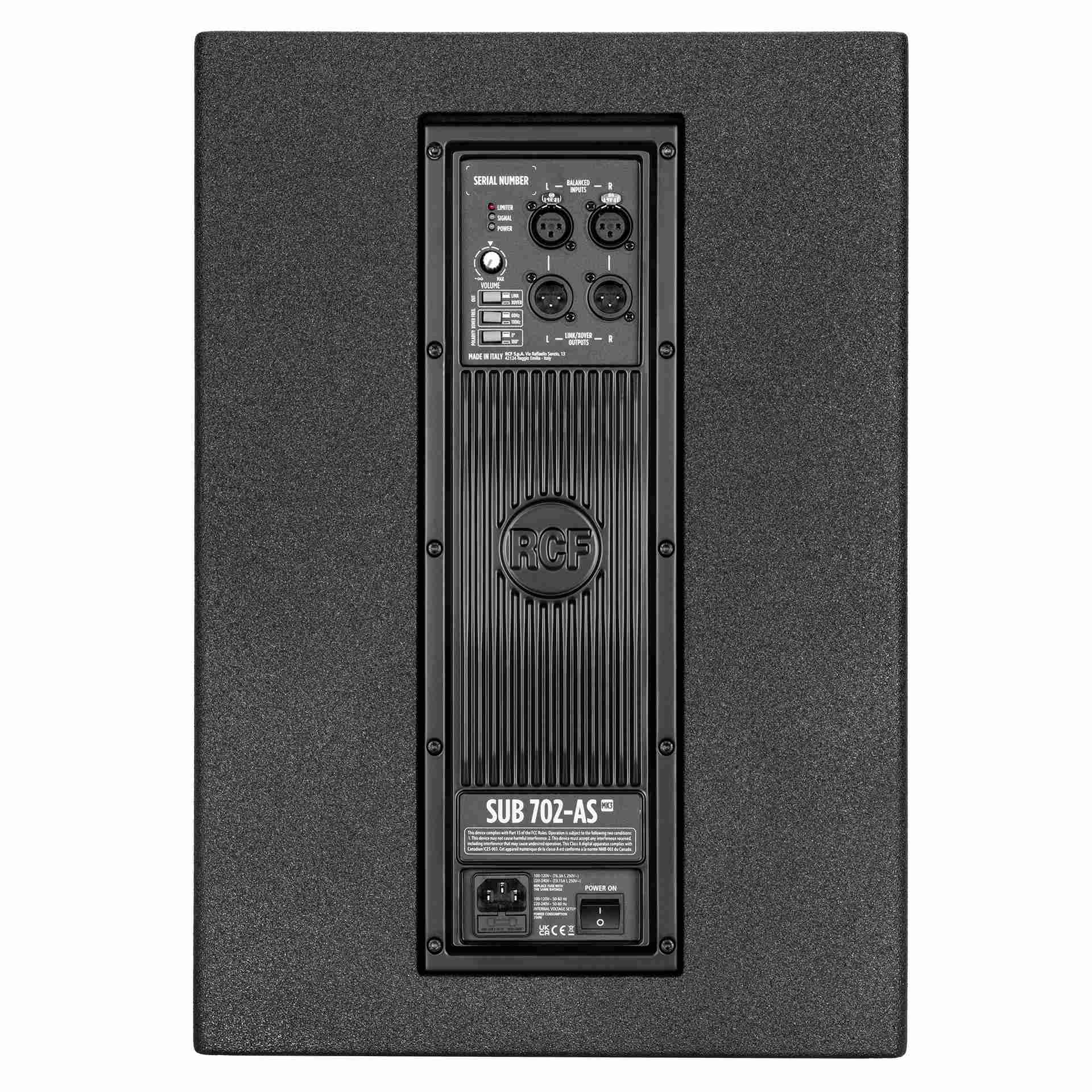

The SUB 702-AS mk3 is a portable 12" high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8" or 10" loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection.
RCF SUB 702-AS MK3
Key Specifications
Performance
Frequency Response: 40 Hz - 120 Hz
Max SPL @ 1m: 129 dB
Transducers
Woofer: 12'', 2.5'' v.c.
Processor & Power Section
Amplification
Total Power: 1400 W Peak / 700 W RMS
Cooling: Convection
Protections: Thermal, RMS
Limiter: Soft Limiter
DSP & Controls
Crossover: 80 Hz (LPF) / 110 Hz (HPF)
Controls: Volume, EQ, Phase, Xover
Input / Output Section
Connectors: XLR In, XLR Out
Signal: Balanced / Unbalanced
Sensitivity: -2 dBu / +4 dBu
Power: VDE
Physical Specifications
Construction
Cabinet: Baltic Birch Plywood
Hardware: M20 pole mount thread
Handles: One per side
Grille: Steel with clothing
Color: Black
Compliance: CE compliant
Size / Weight
Dimensions: 20.59 x 14.17 x 20.28" / 523 x 360 x 515 mm
Weight: 47.4 lbs / 21.5 kg
Packaging Info
Package Weight: 56.22 lbs / 25.5 kg
Box Dimensions: 22.24 x 22.64 x 16.54" / 565 x 575 x 420 mm
