Key Specifications

Performance

• Frequency Response: 30 Hz - 120 Hz
• Max SPL @ 1m: 137 dB

Transducers

• Woofer: 2 x 18'', 4.0'' v.c.

Processor & Power Section

Amplification

• Total Power: 4400 W Peak
• Cooling: Convection / Forced
• Protections: Thermal, Excursion, RMS
• Limiter: Soft Limiter

DSP & Control

• Crossover: Selectable Frequencies
• Controls: Phase switch, Deep/Punch, Output Delay Setting

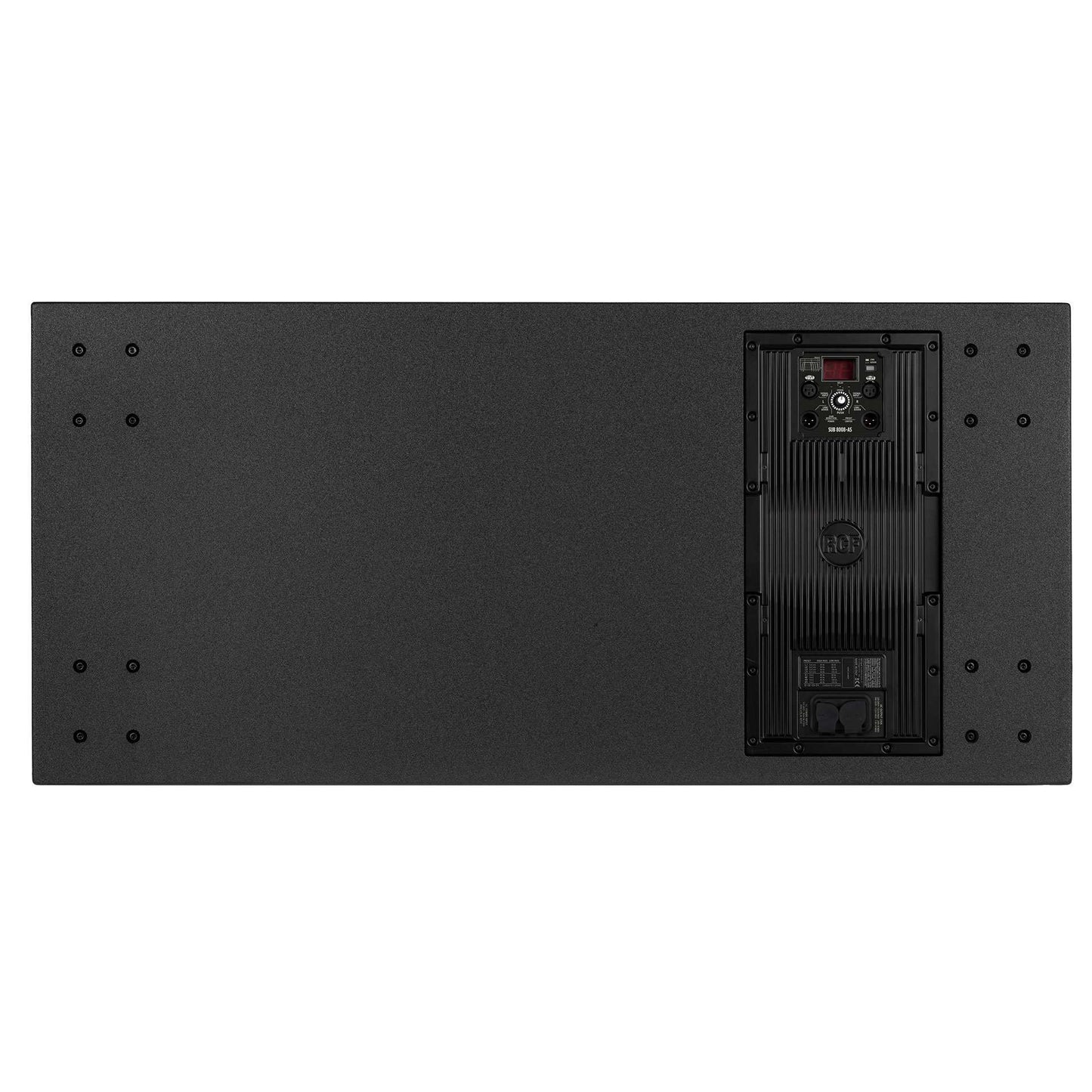

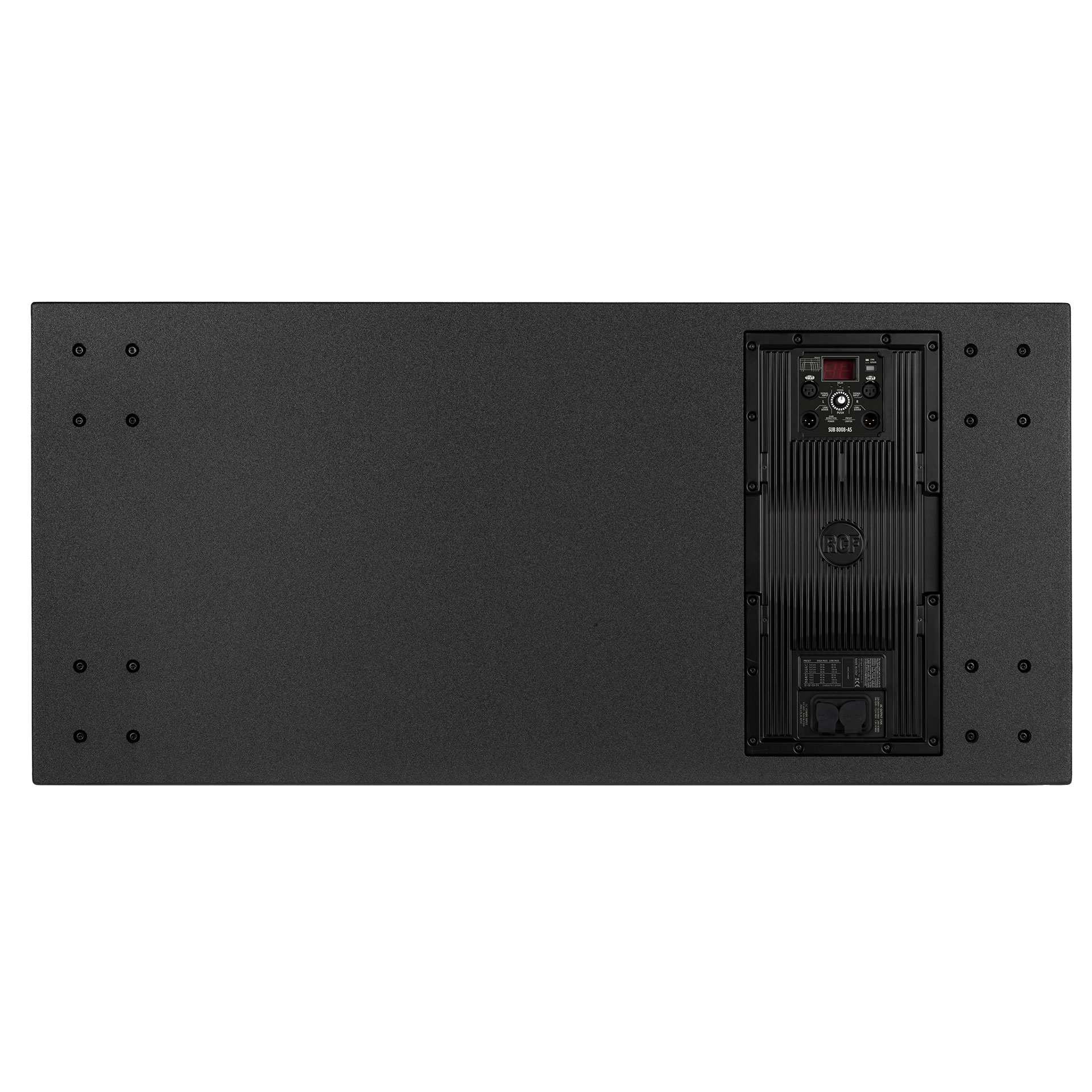

Input / Output Section

• Input Signal: Balanced / Unbalanced
• Connectors: XLR (In/Out)
• Input Sensitivity: -2 dBu / +4 dBu
• Power Connection: Powercon TRUE1 TOP IN/OUT

Physical Specifications

Construction

• Cabinet: Plywood / Steel Grille
• Hardware: 2 x M20 thread pole mount

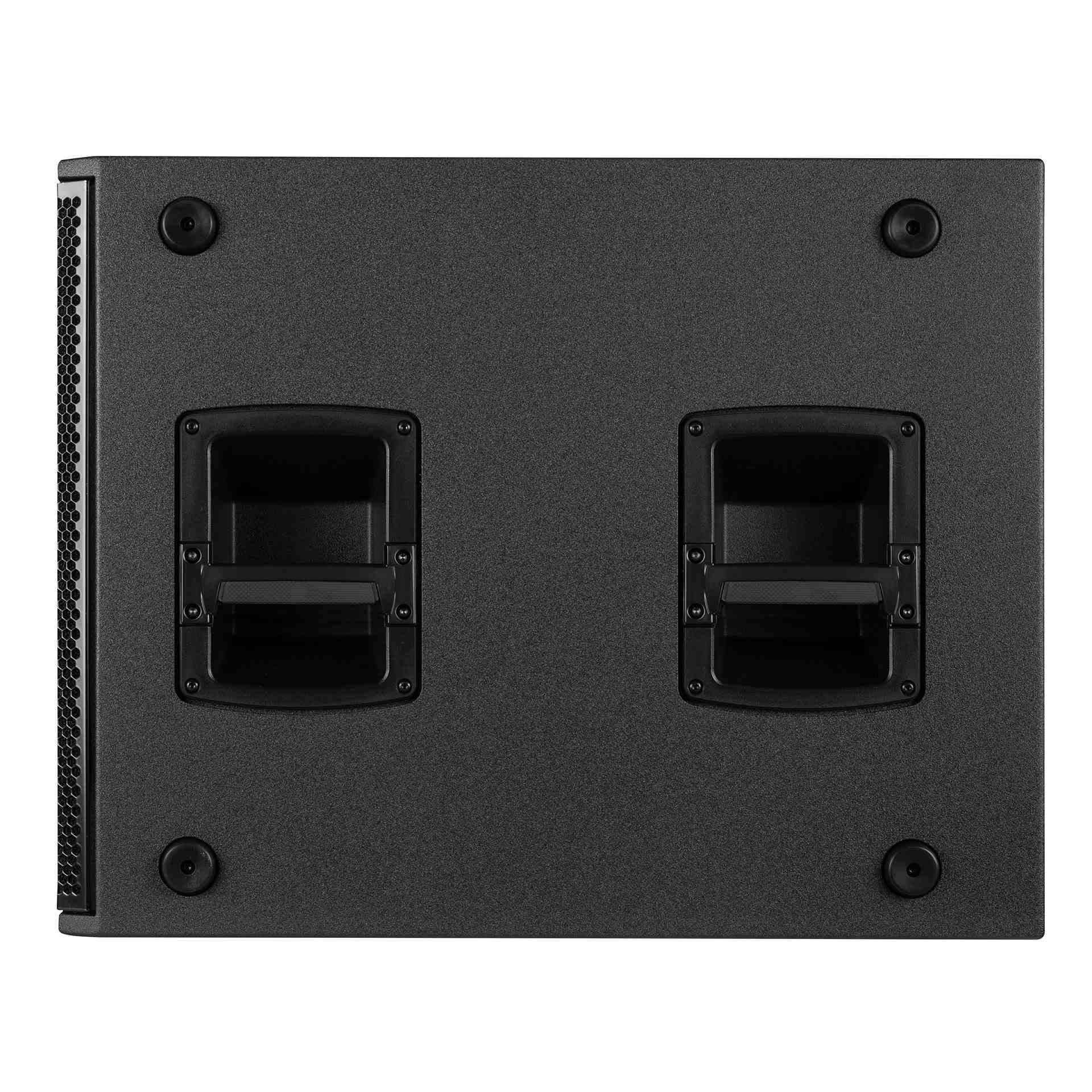

• Handles: 2 x Side (one per side)
• Color: Black

Size / Weight

• Dimensions: 46.46 x 21.65 x 27.56" / 1180 x 550 x 700 mm
• Weight: 176.37 lbs / 80 kg

Packaging Info

• Package Weight: 189.6 lbs / 86 kg
• Box Dimensions: 53.94 x 23.62 x 35.43"

Compliance

• Safety Agency: CE compliant
