Key Specifications

Frequency Range / Response

40 Hz to 400 Hz

Speaker Type

Active Subwoofer

Enclosure Type

Bass-Reflex

Total Output Power

2000 W Peak

Amplifier Class

Class-D

Drivers

LF Driver

8x 8" / 20.3 cm Woofer

Voice Coil

2.5" / 63.5 mm

Performance

Frequency Range / Response

40 Hz to 400 Hz

Maximum SPL

129 dB

Protections

RMS, Thermal

Signal Processing

EQ & Filters

Preset EQ Curves

Dynamic Processing

Soft Limiter

Alignment Delay

Yes (Delay Time/Distance Unspecified)

Digital Signal Processing

Delay, Venue Settings

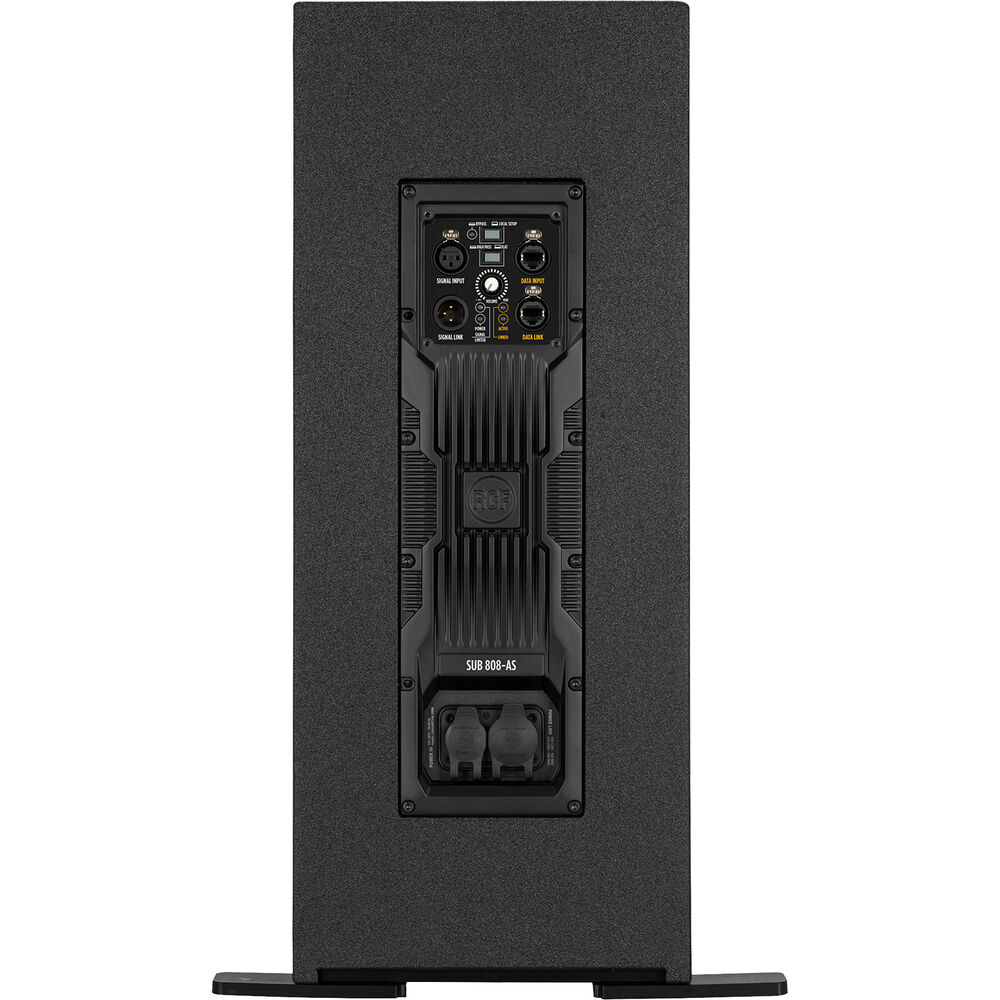

Connectivity

Audio I/O

1x XLR 3-Pin Line Input
1x XLR 3-Pin Link Output

Network I/O

2x etherCON/RJ45 (RDNet)

USB I/O

No

Wireless

No

Mobile App Compatible

Yes (Android & iOS)

App Name

RDTap

App Functionality

Adjust Settings, Firmware Update, Setup

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x powerCON Input
1x powerCON Output

Power Consumption

300 W

Physical

Color

Black

Mounting

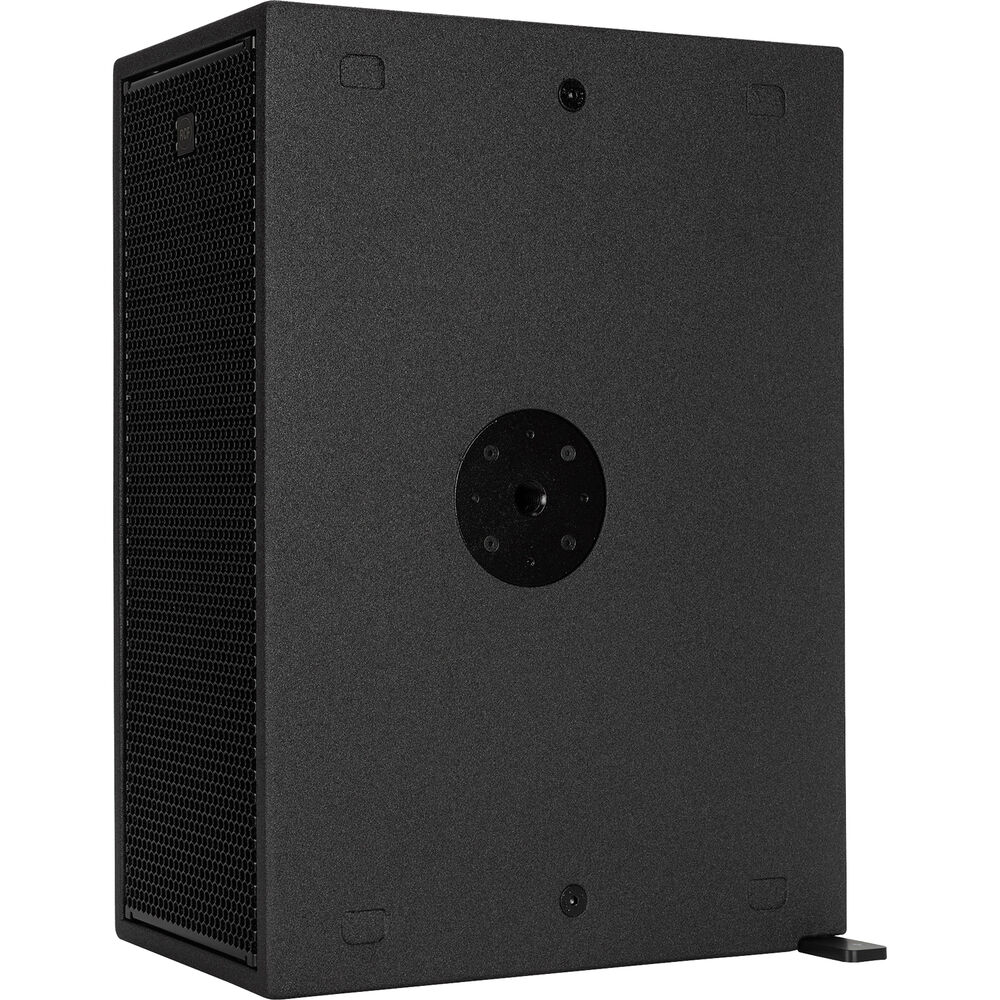

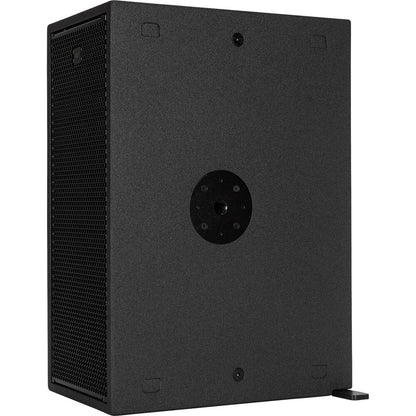

2x M20-Threaded Pole Socket (Side, Top)

Handles

1x Each Side

Construction Material

Plywood, Steel

Environmental Resistance

No

Dimensions

23.6 x 22.4 x 20.9" / 59.9 x 56.9 x 53.1 cm

Weight

99.2 lb / 45 kg
