Key Specifications

Performance

• Frequency Response: 30 Hz - 200 Hz
• Max SPL @ 1m: 137 dB

Transducers

• Woofer: 1 x 16'' neo, 4.0'' v.c.

Processor & Power Section

Amplification

• Total Power: 4000 W Peak
• Cooling: Convection / Forced
• Protections: Thermal
• Limiter: Soft Limiter

DSP & Control

• Network: RDNet Onboard (Ethercon)
• Controls: MUTE, VOL, PRESETS, RDTAP

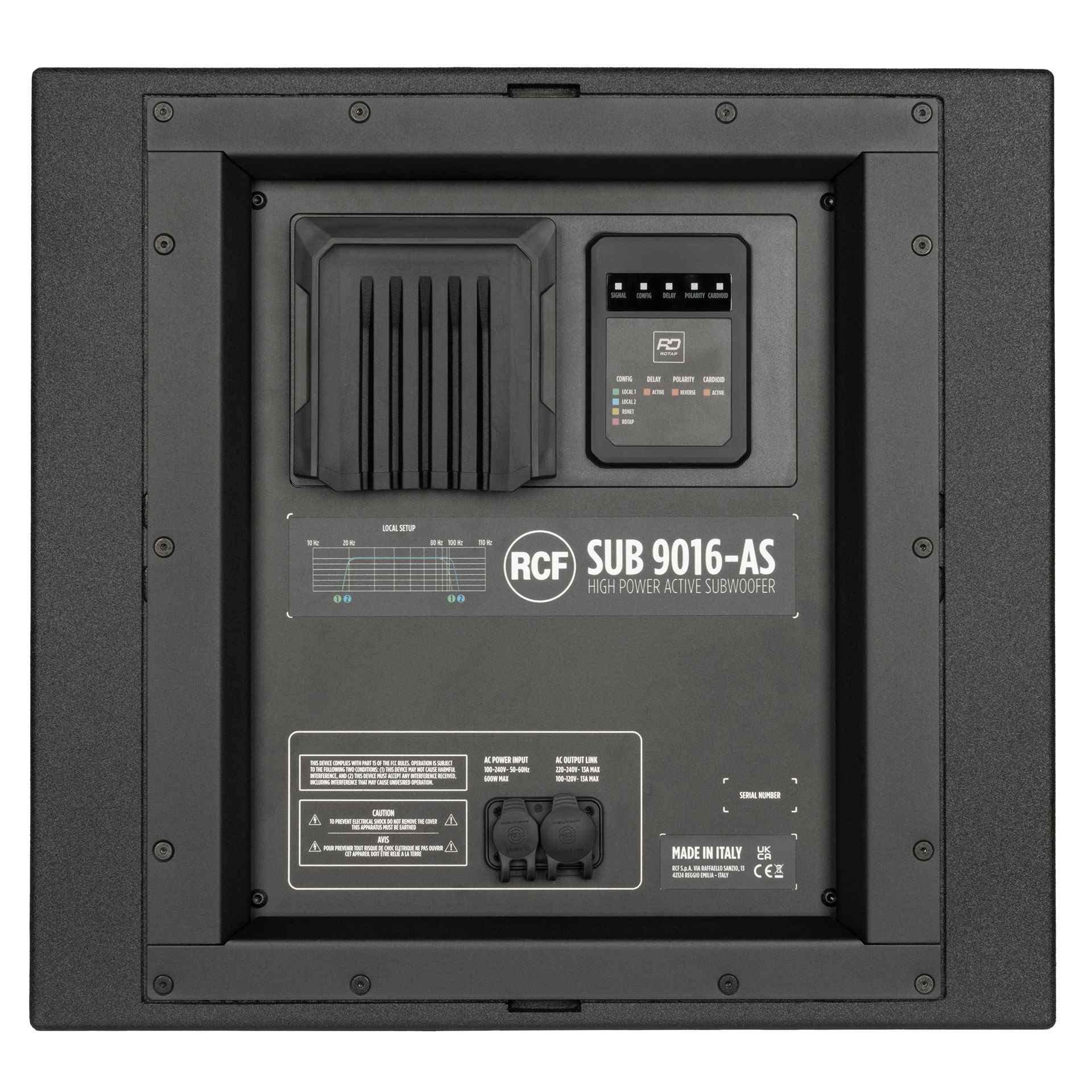

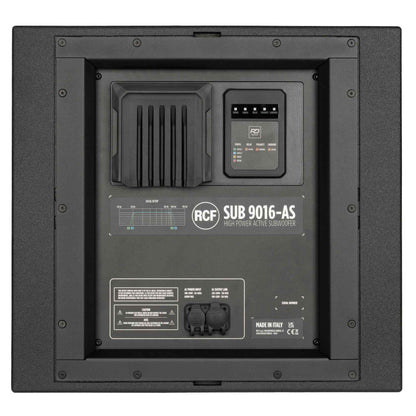

Input / Output Section

• Audio Connectors: XLR (In/Out)
• Network Connectors: RDNet Ethercon (In/Out)
• Power: Powercon TRUE1 TOP IN/OUT
• Input Sensitivity: -2 dBu / +4 dBu

Physical Specifications

Construction

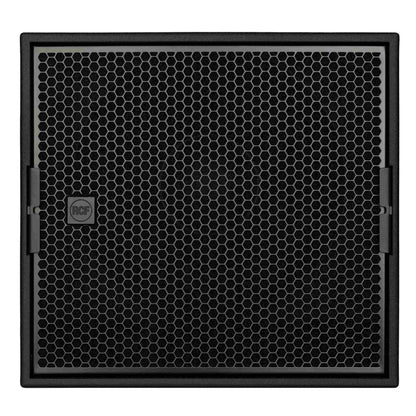

• Cabinet: Plywood with Steel/Clothing Grille

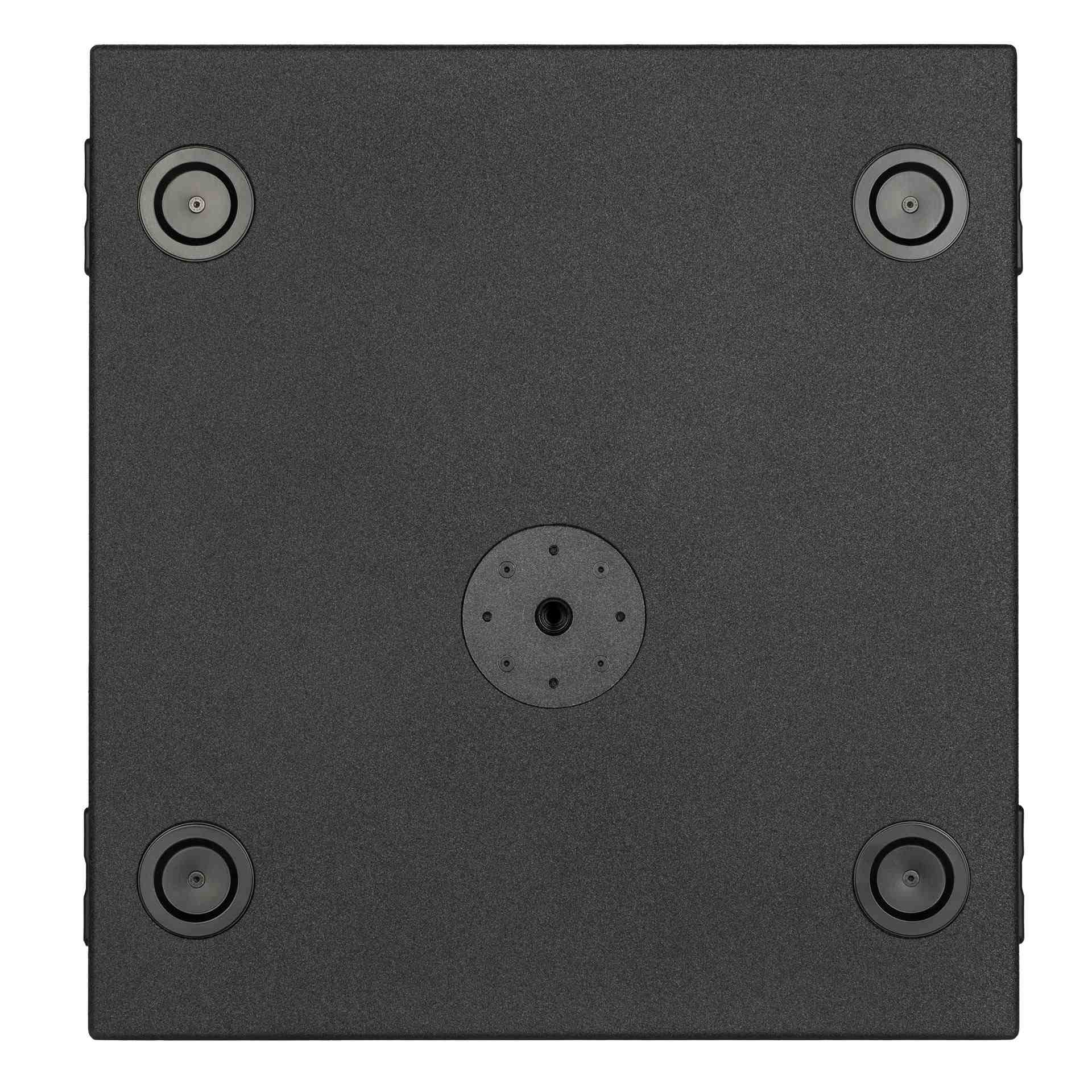

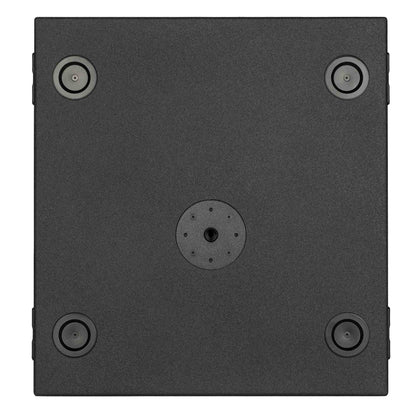

• Hardware: 2 x M20 thread pole mount

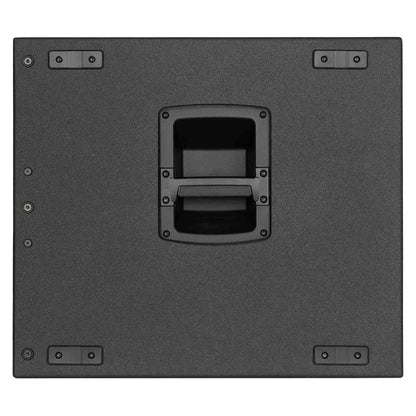

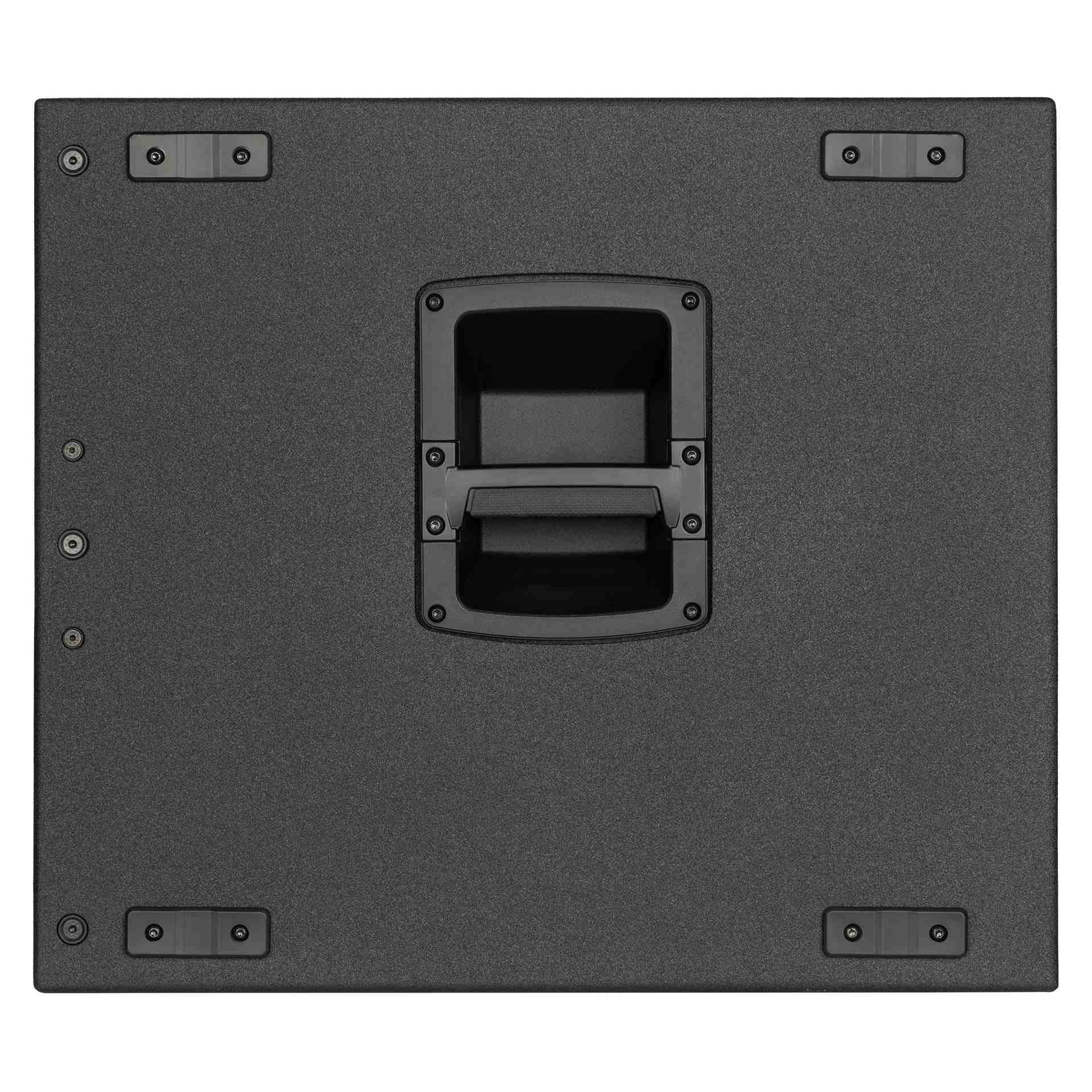

• Handles: 1 per side
• Color: Black

Size / Weight

• Dimensions: 22.44 x 20.98 x 23.62" / 570 x 533 x 600 mm
• Weight: 99.21 lbs / 45 kg

Packaging Info

• Package Weight: 110.23 lbs / 50 kg
• Box Dimensions: 23.43 x 22.05 x 25.47"

Compliance

• Safety Agency: CE compliant
