Key Specifications

Performance

• Frequency Response: 30 Hz - 200 Hz
• Max SPL @ 1m: 138 dB

Transducers

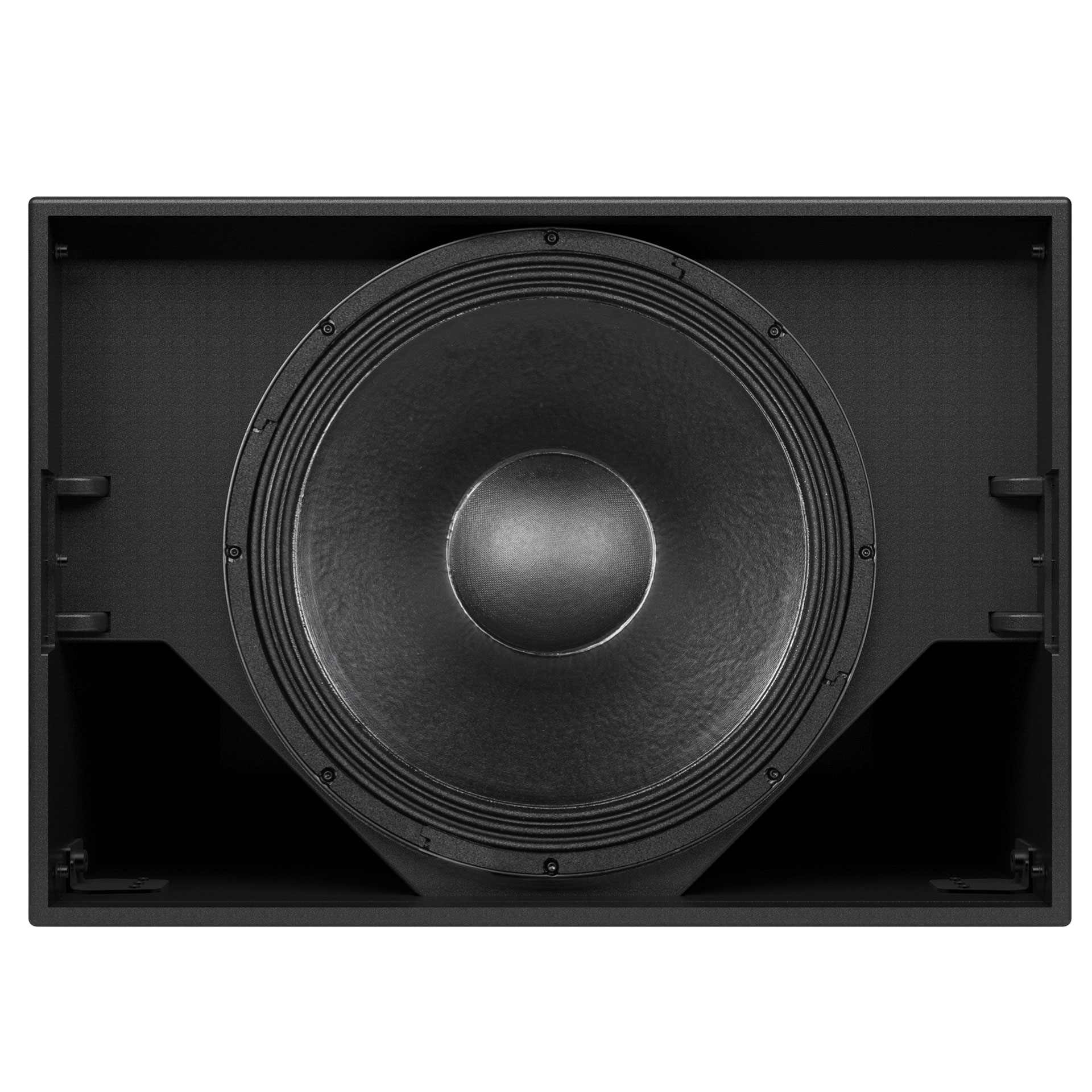

• Woofer: 1 x 19'' neo, 4.0'' v.c.

Processor & Power Section

Amplification

• Total Power: 4000 W Peak
• Cooling: Convection / Forced
• Protections: Thermal
• Limiter: Soft Limiter

DSP & Control

• Network: RDNet Onboard (Ethercon)
• Controls: MUTE, VOL, PRESETS, RDTAP

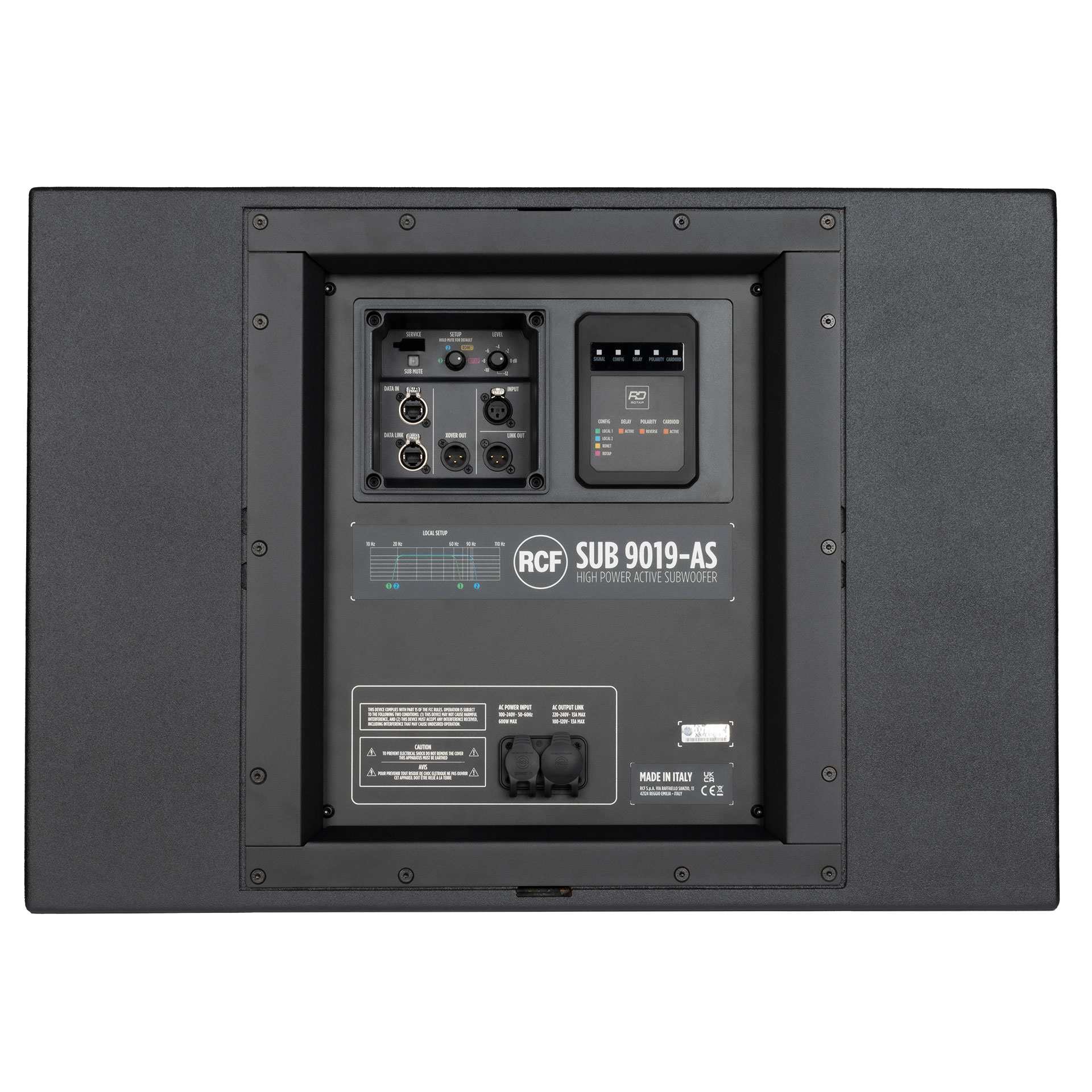

Input / Output Section

• Audio Connectors: XLR (In/Out)
• Network Connectors: RDNet Ethercon (In/Out)
• Power: Powercon TRUE1 TOP IN/OUT
• Input Sensitivity: -2 dBu / +4 dBu

Physical Specifications

Construction

• Cabinet: Plywood with Steel/Clothing Grille
• Hardware: 2 x M20 thread pole mount
• Handles: 1 per side
• Color: Black

Size / Weight

• Dimensions: 29.72 x 20.98 x 28.07" / 755 x 533 x 713 mm
• Weight: 117.73 lbs / 53.4 kg

Packaging Info

• Package Weight: 127.87 lbs / 58 kg
• Box Dimensions: 31.5 x 22.05 x 29.53"

Compliance

• Safety Agency: CE compliant
