Key Specifications

Performance

• Frequency Response: 25 Hz - 200 Hz
• Max SPL @ 1m: 142 dB

Transducers

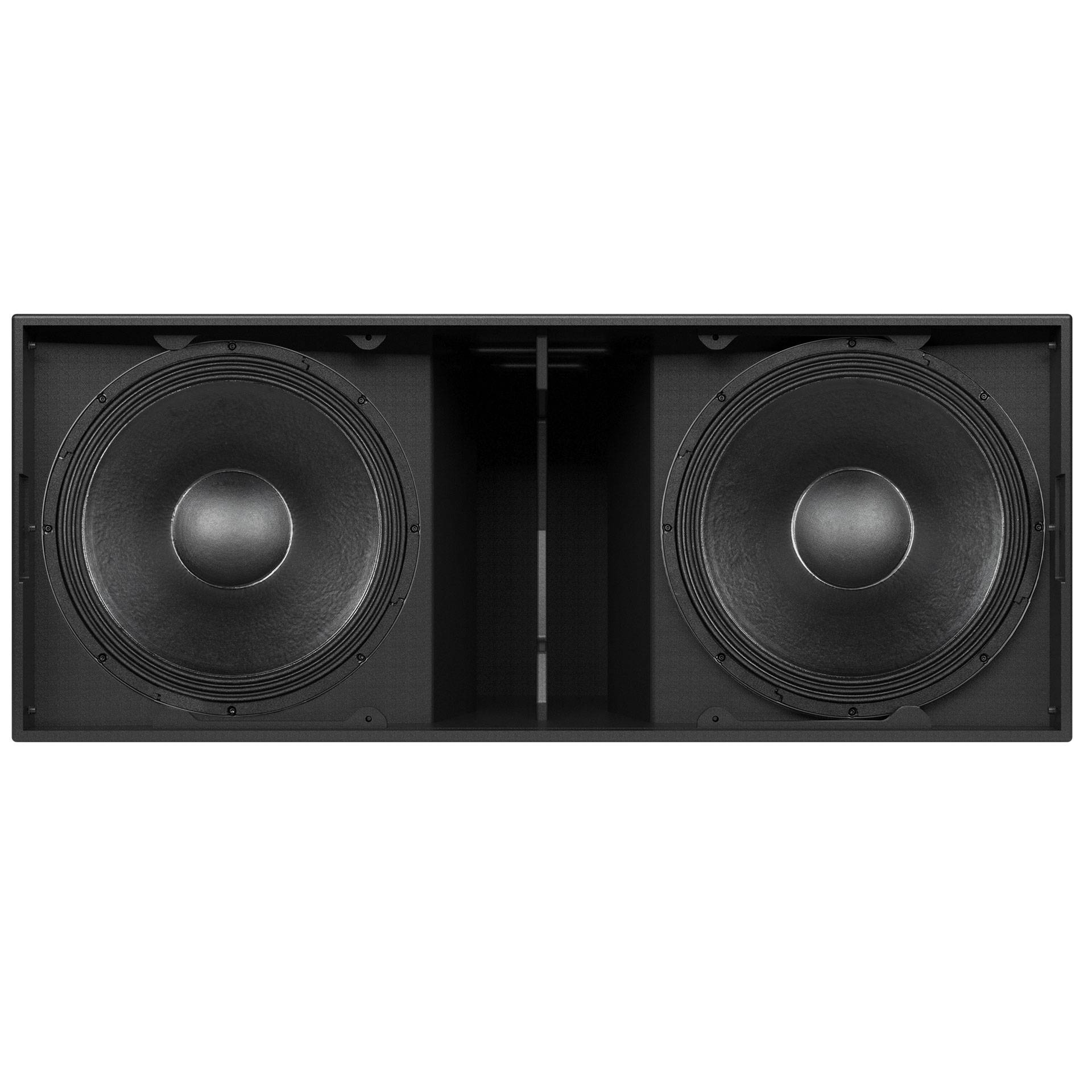

• Woofer: 2 x 19'' neo, 4.0'' v.c.

Processor & Power Section

Amplification

• Total Power: 8000 W Peak
• Cooling: Convection / Forced
• Protections: Thermal
• Limiter: Soft Limiter

DSP & Control

• Network: RDNet Onboard (Ethercon)
• Controls: MUTE, VOL, PRESETS, RDTAP

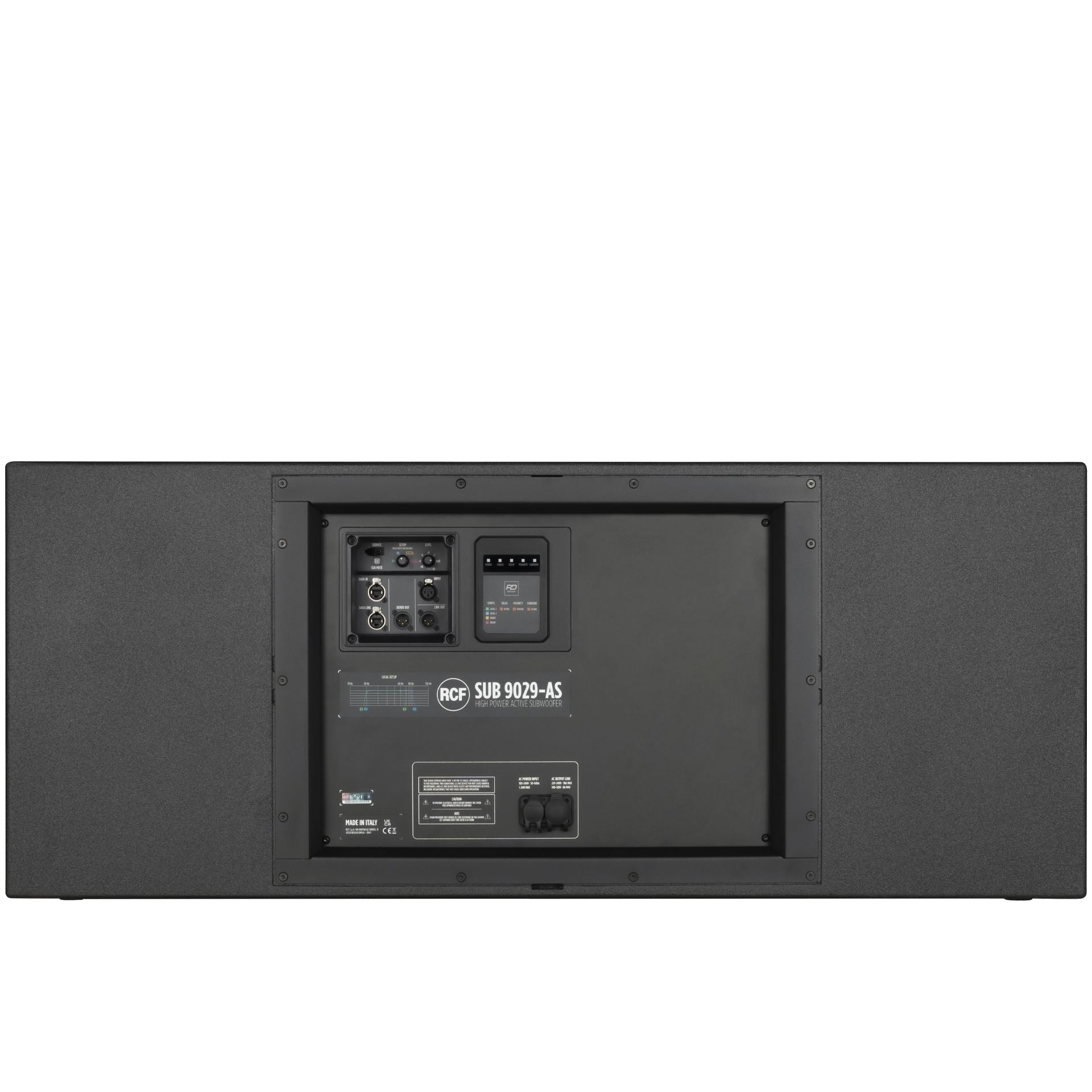

Input / Output Section

• Audio Connectors: XLR (In/Out)
• Network Connectors: RDNet Ethercon (In/Out)
• Power: Powercon TRUE1 TOP IN/OUT
• Input Sensitivity: -2 dBu / +4 dBu

Physical Specifications

Construction

• Cabinet: Plywood with Steel/Clothing Grille
• Hardware: 2 x M20 thread pole mount

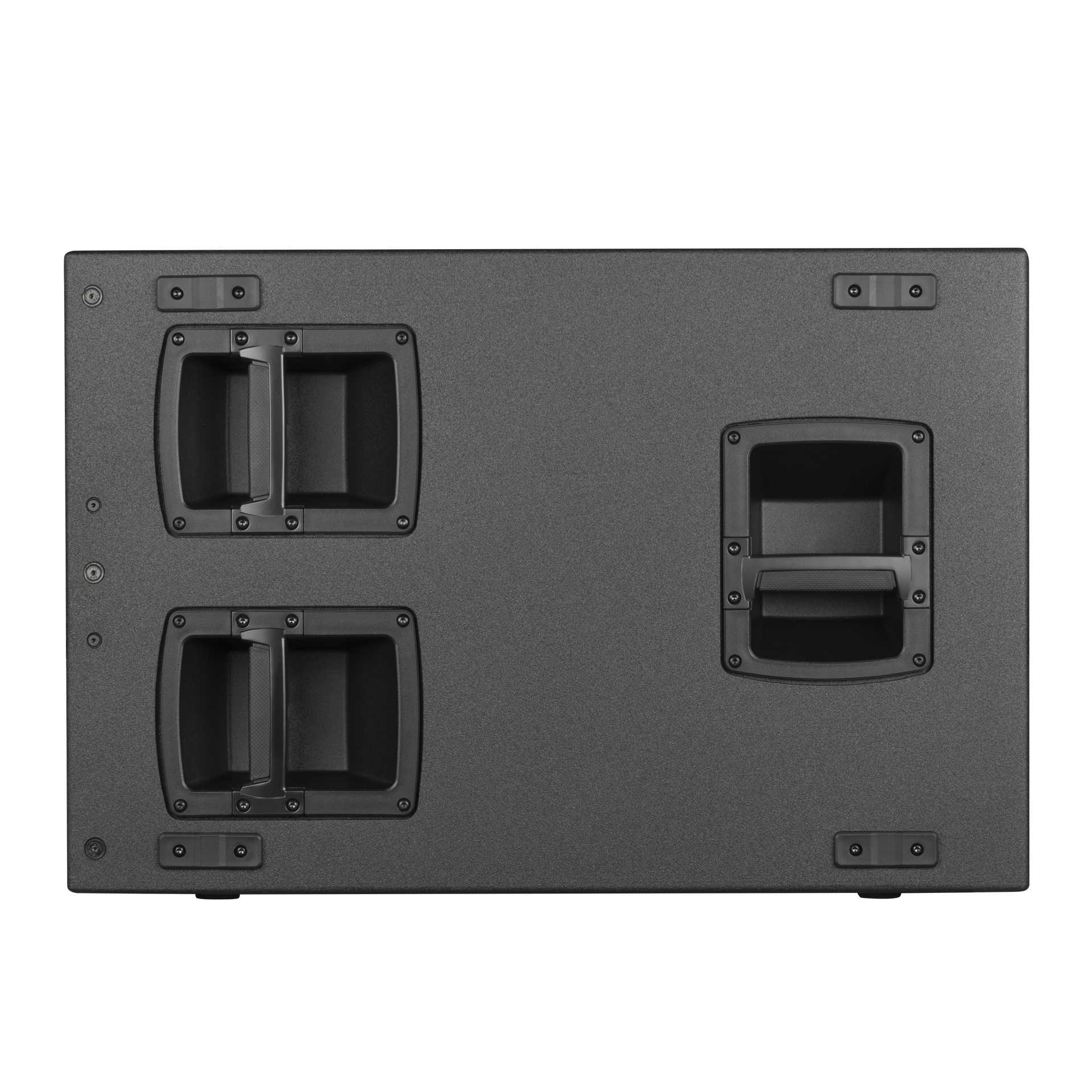

• Handles: 3 per side (6 total)
• Color: Black

Size / Weight

• Dimensions: 51.57 x 20.98 x 30.91" / 1310 x 533 x 785 mm
• Weight: 205.03 lbs / 93 kg

Packaging Info

• Package Weight: 216.05 lbs / 98 kg
• Box Dimensions: 53.15 x 32.68 x 22.44"
