Key Specifications

Frequency Range/Response

29 Hz to 260 Hz (-10 dB)
37 Hz to 180 Hz (-3 dB)

Enclosure Type

Bass-Reflex

Total Output Power

1000 W

Amplifier Class

Class-D

Drivers

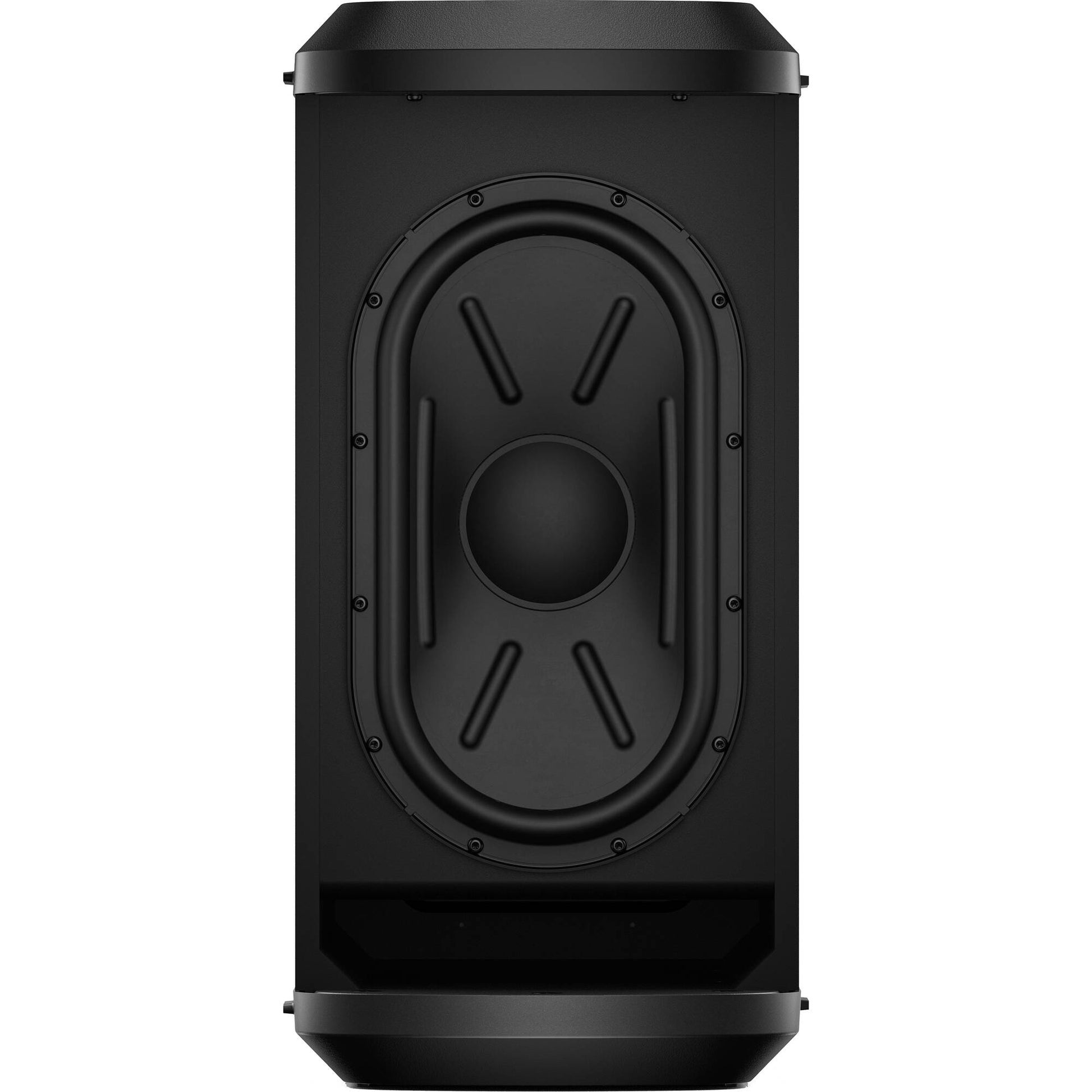

LF Driver

1x 18" / 45.7 cm Oval Woofer
Voice Coil: 3" / 76.2 mm

Performance

Frequency Range/Response

29 Hz to 260 Hz (-10 dB)
37 Hz to 180 Hz (-3 dB)

Maximum SPL

123.8 dB (Continuous)
129.8 dB (Peak)

Protections

Dynamic Clip, Signal Limiter

Signal Processing

Crossover Frequency

200 Hz

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

Connectivity

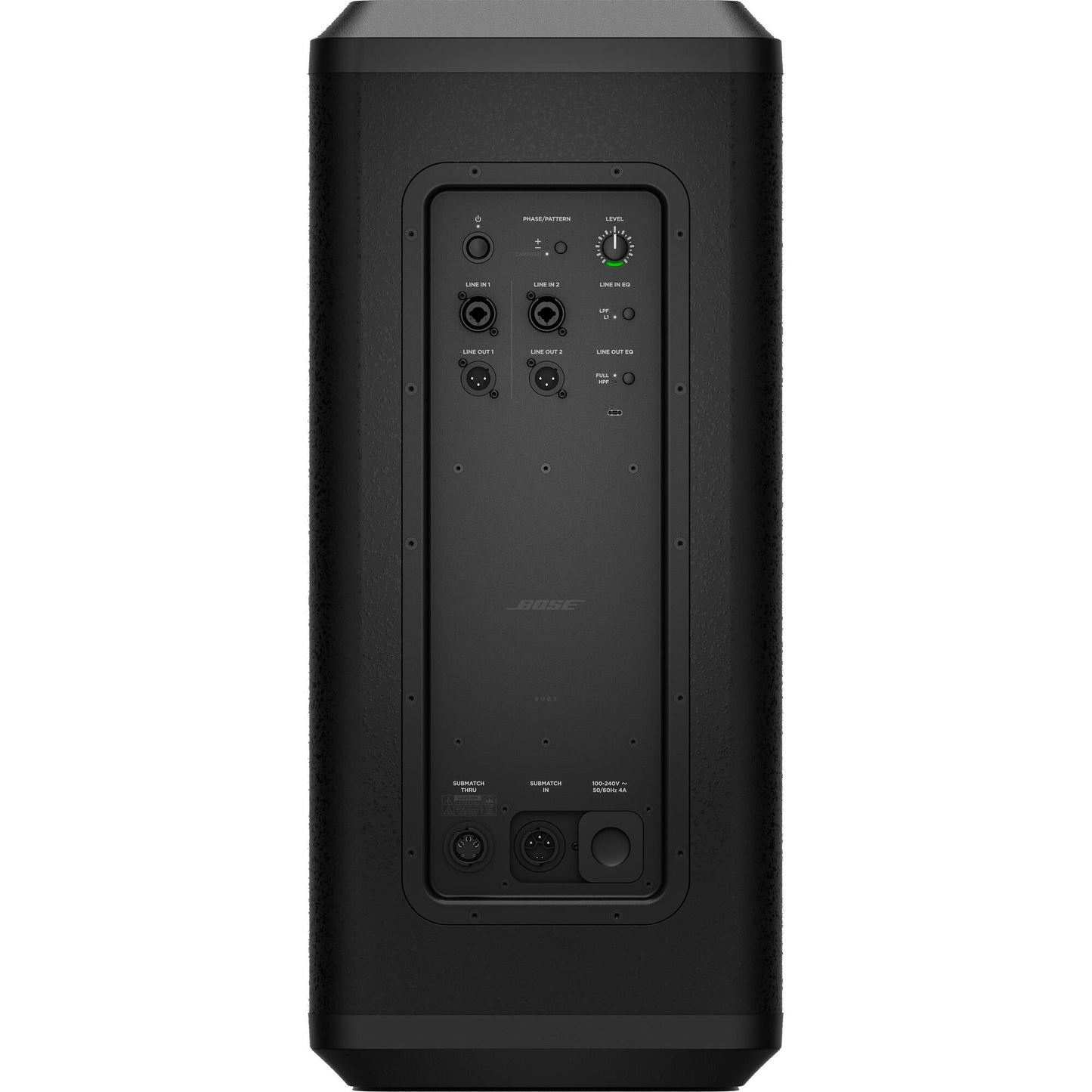

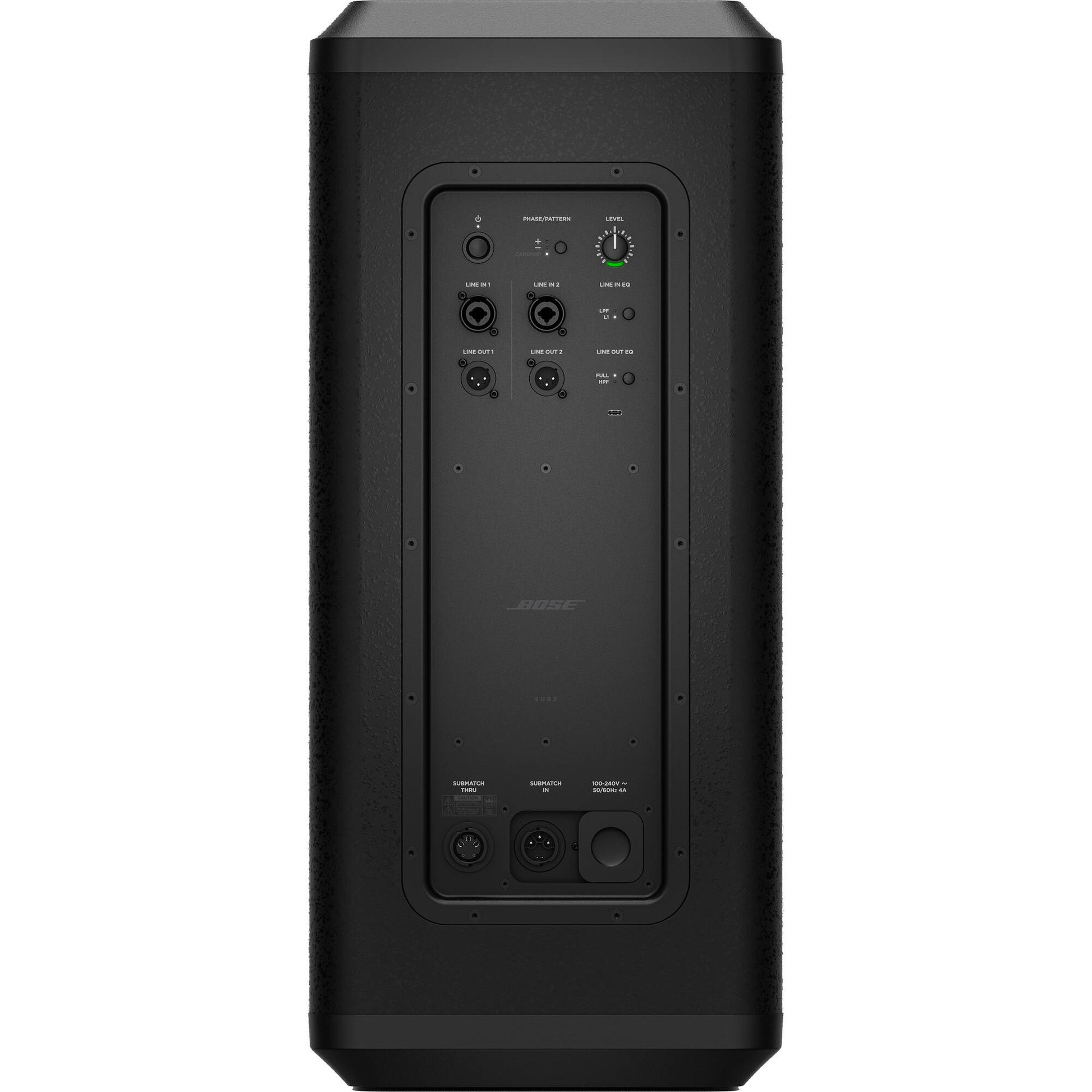

Audio I/O

2x Combo XLR-1/4" TRS Hi-Z/Line/Mic Input

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1x IEC Input

Physical

Color

Black

Handles

1x Top

Environmental Resistance

No

Dimensions (H x W x D)

27.3 x 21.7 x 12.5" / 69.3 x 55.1 x 31.8 cm

Weight

50.7 lb / 23 kg

Packaging Info

Package Weight

61.7 lb

Box Dimensions (LxWxH)

31 x 25.5 x 15.25"
