Key Specifications

System Acoustic Principle

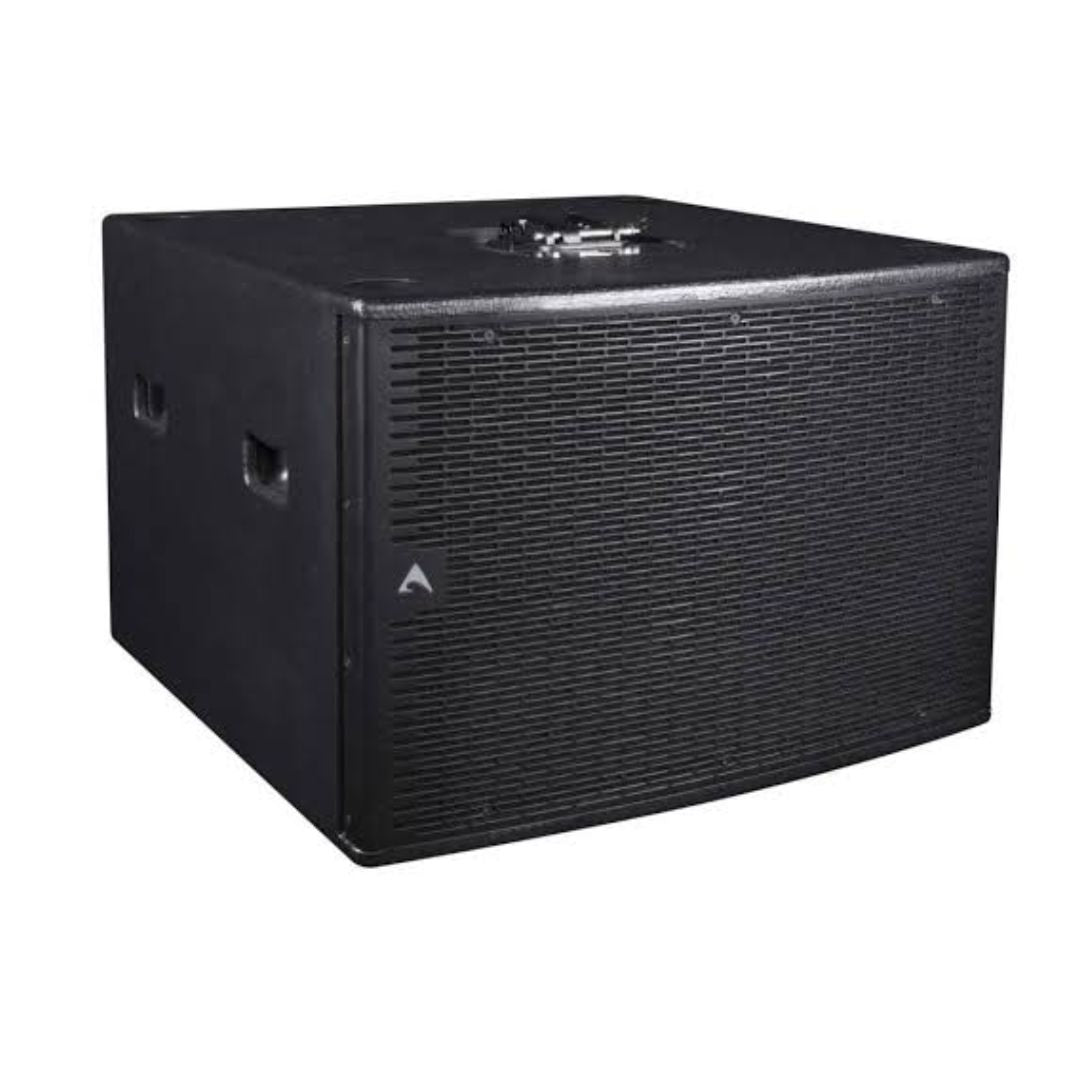

Band-Pass / Bass-Reflex Active Subwoofer

Enclosure Material & Finish

18 mm Reinforced Phenolic Birch Plywood, High-Resistance Water-Based Paint

Transport Hardware

4x Heavy-Duty 100 mm (4") Castors, 4x Integrated Handles

Transducer Specifications

Low-Frequency Transducer

21" Neodymium Magnet Woofer (4" / 100 mm Voice Coil)

Cone & Voice Coil Design

High-Stiffness Complex Composite Water-Repellent Cone, Interleaved Sandwich Voice Coil (ISV), Triple-Roll Suspension

Acoustic & Performance Specifications

Frequency Response (-6 dB)

34 Hz to 180 Hz (Processed)

Maximum Peak SPL (@ 1m)

138 dB SPL

Amplification & Electrical Specifications

Amplifier Type

Class-D with SMPS & Power Factor Correction (PFC), Variable Switching Frequency

Amplifier Output Power

2000 W + 2000 W (Out 1: Subwoofer / Out 2: AX12C or Other External Loudspeakers)

Input Impedance & Sensitivity

20 kΩ Balanced / 10 kΩ Unbalanced | Input Sensitivity: +4 dBu / 1.25 V

Mains Voltage Input

90 V AC – 260 V AC, 50/60 Hz

Digital Signal Processing (DSP) & Networking

DSP Architecture

CORE Processing, 96 kHz / 40-bit Floating Point SHARC DSP, 24-bit AD/DA Converters

Direct Access Controls

4 Factory Presets (2x AX12C / 4x AX12C / 1x AX12C / User), Network Termination, GND Link

Remote Control & Protocol

PRONET Control Software over CANBUS Network Protocol

Connectivity, Cooling & Physical Specifications

Signal & Network Connectors

Input / Output: Neutrik® XLR-M / XLR-F
Network In / Out: etherCON® (NE8FAV)

Mains Power Connectors

powerCON® TRUE1 Input & Link (NAC3PX)

Cooling System

Variable-Speed DC Fan

Item Dimensions (W×H×D)

760mm x 511mm x 770mm (29.9" x 20.1" x 30.3")
Depth Including Castors: 881mm (34.6")

Net Weight

61.0 kg (134.2 lbs)
