Key Specifications

Active or Passive

Active

System Type

Subwoofer

Configuration

Bass-reflex

System Continuous Power

700 W

System Peak Power

1400 W

Max SPL @ 1m

132 dB (Half Space)

Freq Range (-10 dB)

40 Hz - 250 Hz

Freq Response (+/-3 dB)

45 Hz - 200 Hz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

None

Driver Brand

Wharfedale Pro

LF Driver Size

15"

LF Voice Coil Size

Quad Layer 3"

LF Rated Impedance

4 Ω

LF Power (RE:AES2-2012)

350 W

Preset Library

No

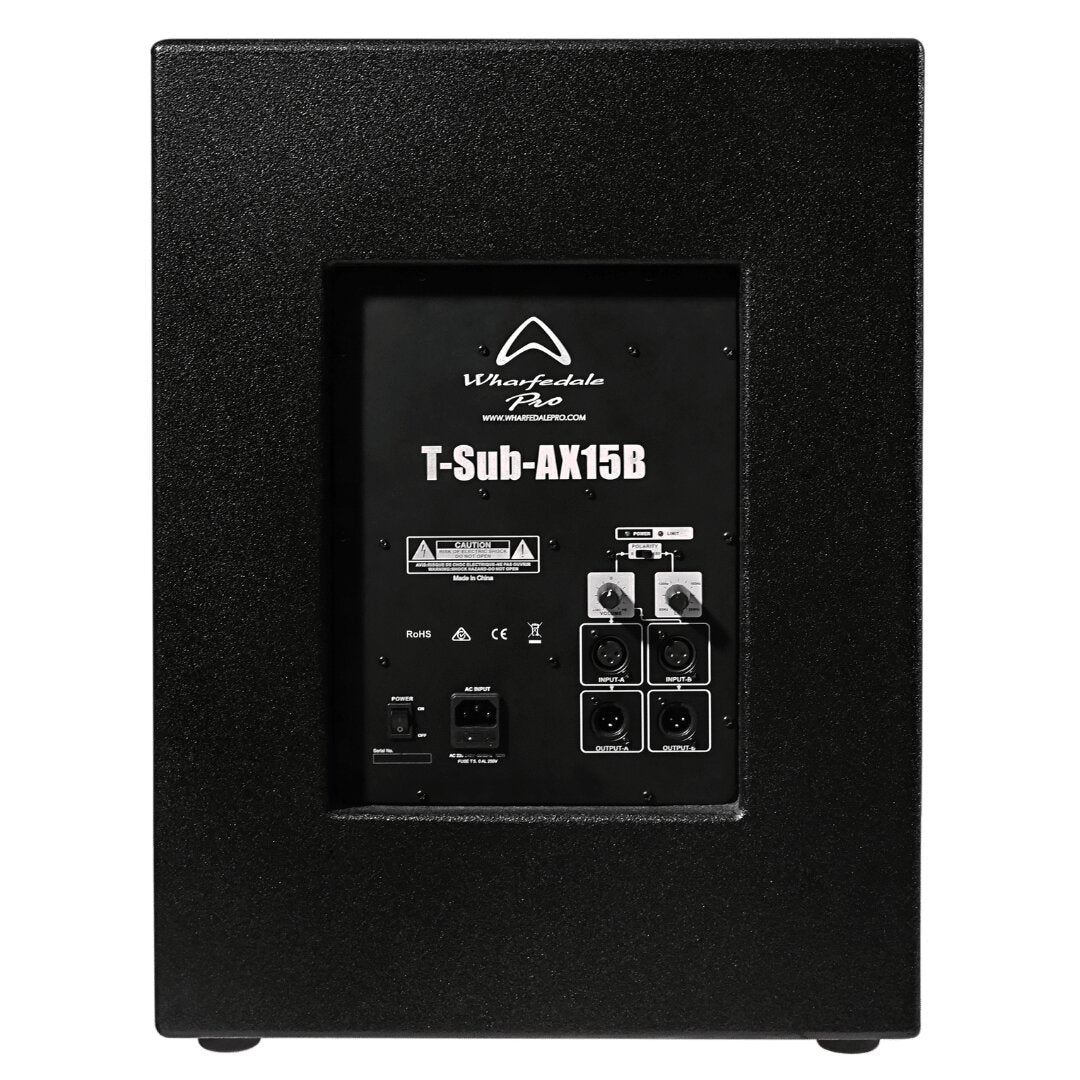

Input Connector

2 x XLR

Enclosure Material

Birch Plywood

Grille Material and Finish

Steel Black

Finish

Black Tough-Tone

Handles

2

Deployment

Ground

Pole Mount

35 mm

Brackets Included

No

Rigging

No

Sensitivity 2.83v / 1m

n/a dB

System Rated Impedance

n/a

Crossover Frequency

LPF 80-200 Hz (adjustable)

Recommended HPF = BW 18 dB/OCT.

40 Hz

Amplifier design

Class D

DSP Controls

Polarity switch 0° / 180°, LPF 80-200 Hz (adjustable)

Active loudspeaker Input Impedance

47 KΩ Balanced

Link Connector

2 x pin XLR

Input sensitivity

-10 dBu

Max input level

5 V

Main Power

100 V-120 V and 200 V-240 V

Power Supply

SMPS

Included Accessory

Quick Start Guide, AC Cable

Unpacked - Height (mm)

591

Unpacked - Width Front (mm)

454

Unpacked - Width Rear (mm)

454

Unpacked - Depth (mm)

524

Packed - Height (mm)

689

Packed - Width Front (mm)

544

Packed - Width Rear (mm)

544

Packed - Depth (mm)

610

Weight - Nett (kg)

25.7

Weight - Gross (kg)

29.5
