Key Specifications

Product Type

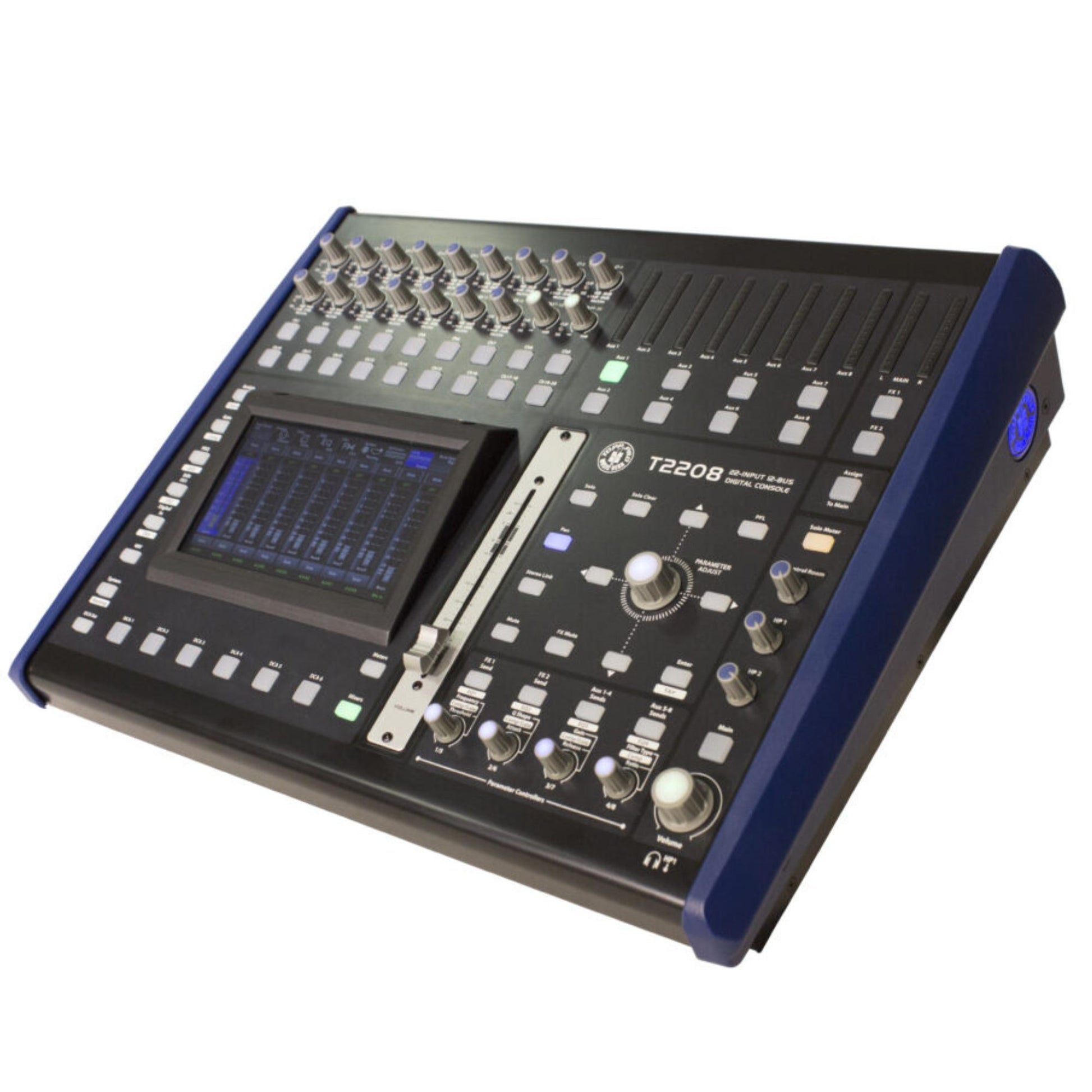

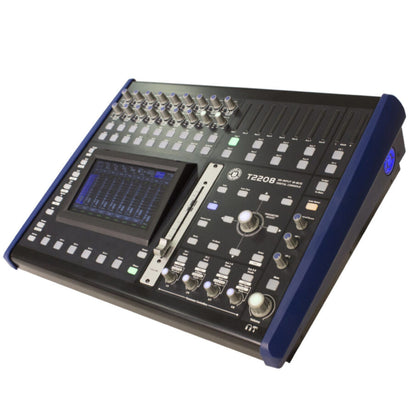

Professional Digital Mixing Console

Internal Processing

32-bit Floating Point

ADC / DAC Performance

24-bit Depth | 114 dB Dynamic Range

SNR (Signal to Noise Ratio)

104 dB

Audio Performance

Frequency Response

20 Hz to 20 kHz (±1.5 dB)

Distortion (THD+N)

< 0.01% (@ 0 dBu, 1 kHz)

System Crosstalk

-87 dBu (Input to Output) | -86 dBu (Adjacent)

Bus Noise

-90 dBu

Input & Output Stages

Mic Max Input Level

+22 dBu (Balanced)

Line Gain Range

-15 dBu to +35 dBu

Phantom Power

+48V DC (±3V)

Max Output Level

+20 dBu (Main / AUX / Control Room)

DSP & Signal Processing

4-Band Parametric EQ

21 Hz to 19.2 kHz (±24 dB Gain per band)

Compressor

Ratio 1:1 to 24:1 | Attack 10ms - 150ms

Noise Gate

Threshold -84 dBu to 0 dB | Attack 0.5ms

Impedance & Environmental

Input Impedance

Mic: 1.4k Ω | Insert: 2.5k Ω | Others: >10k Ω

Output Impedance

120 Ω (All Outputs)

Operating Temp

0°C to 40°C (32°F to 104°F)
