TA-80 kit

Transforms any microphone into a handheld wireless transmitter
Balanced XLR input jack effortlessly plugs onto any wired microphone
Provides +48V phantom power for condenser mics
Compact aluminum housing offers exceptional resistance to interference
Built-in high-efficiency antenna ensures clean transmission in crowded RF environments
Frequency response, distortion characteristics, noise floor, and transient handling rival those of a wired microphone
Vivid backlit LCD screen provides instant access to all its operational parameters
High-capacity, 8-hr. rechargeable lithium-ion battery

MIPRO

₱51,000.00 VAT INC.

₱51,000.00

UNIT: PIECE/S

Product Code: SKU:MPRO-TA80-CHN-459

Transforms any microphone into a handheld wireless transmitter
Balanced XLR input jack effortlessly plugs onto any wired microphone
Provides +48V phantom power for condenser mics
Compact aluminum housing offers exceptional resistance to interference
Built-in high-efficiency antenna ensures clean transmission in crowded RF environments
Frequency response, distortion characteristics, noise floor, and transient handling rival those of a wired microphone
Vivid backlit LCD screen provides instant access to all its operational parameters
High-capacity, 8-hr. rechargeable lithium-ion battery

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

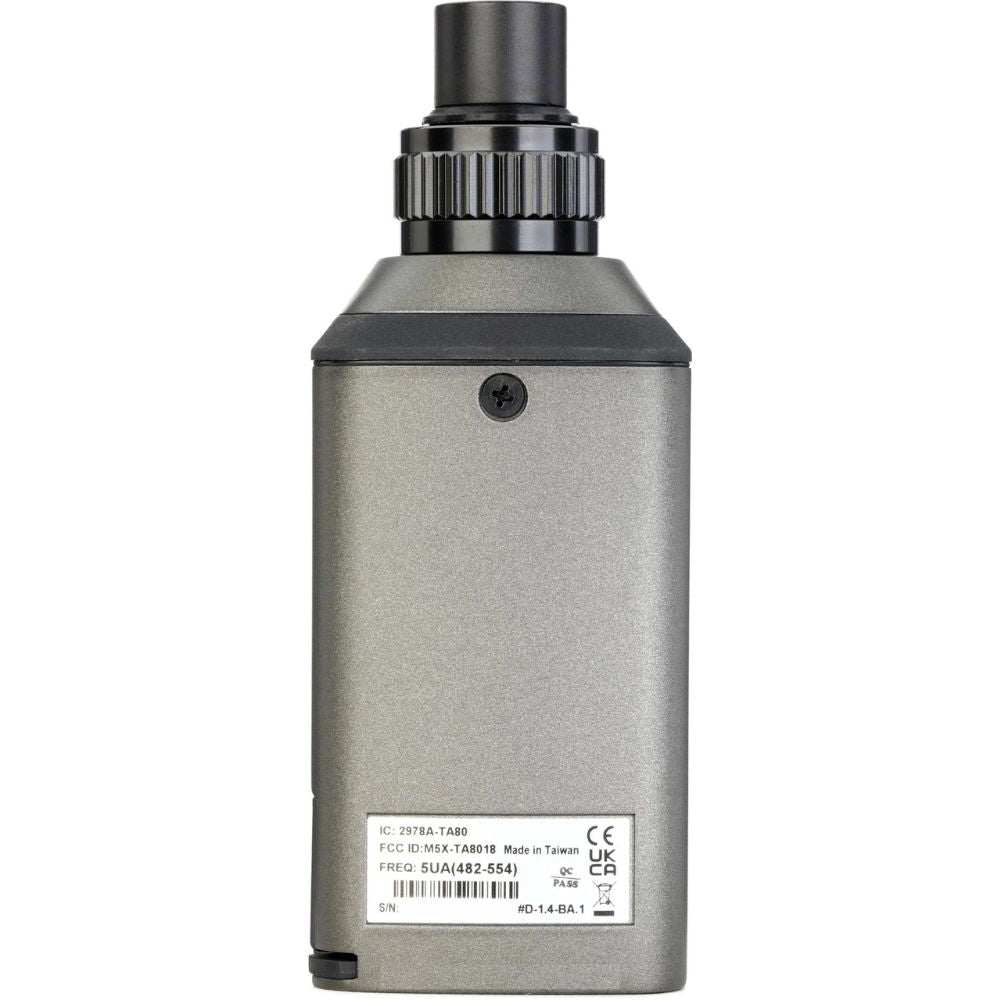

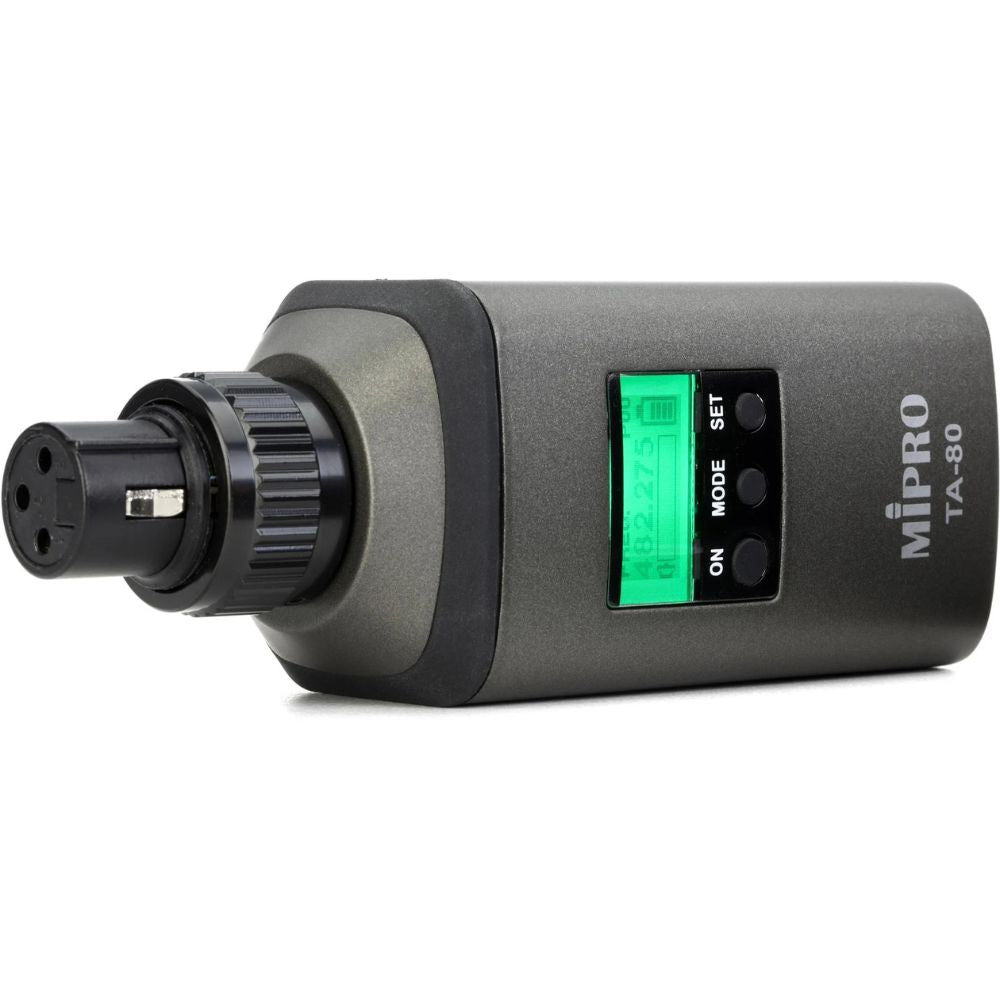

MIPRO TA-80 kit

Key Specification
Model	TA-80
Name	UHF Digital Wireless Plug-on Transmitter
Frequency Range	480 ~ 960 MHz (country dependent)
Bandwidth	72 MHz
RF Output Power	10 mW / 50 mW switchable (country dependent)
Spurious Emission	≦ -60 dBc
Modulation Mode	New digital modulation
AF Input Level	2V max at 0 dB gain, 7V max at -12 dB gain, 20V P-P (protected)
Phantom Power	Selectable 12 V / 48 V at 10 mA max
Battery Type	1 × ICR 18500 lithium-ion battery
Battery Life	> 8 hours (10 mW RF, phantom off) > 4.5 hours (50 mW RF, 48 V / 2 mA phantom on)
Charger	MP-8T / MP-80 (with MPA-80 adaptor)
Dimensions	44 × 114 × 37 mm (W × H × D)
Net Weight	Approx. 165 g
Note	Refer to the actual product in the event of product discrepancy.
