Key Specification

Model

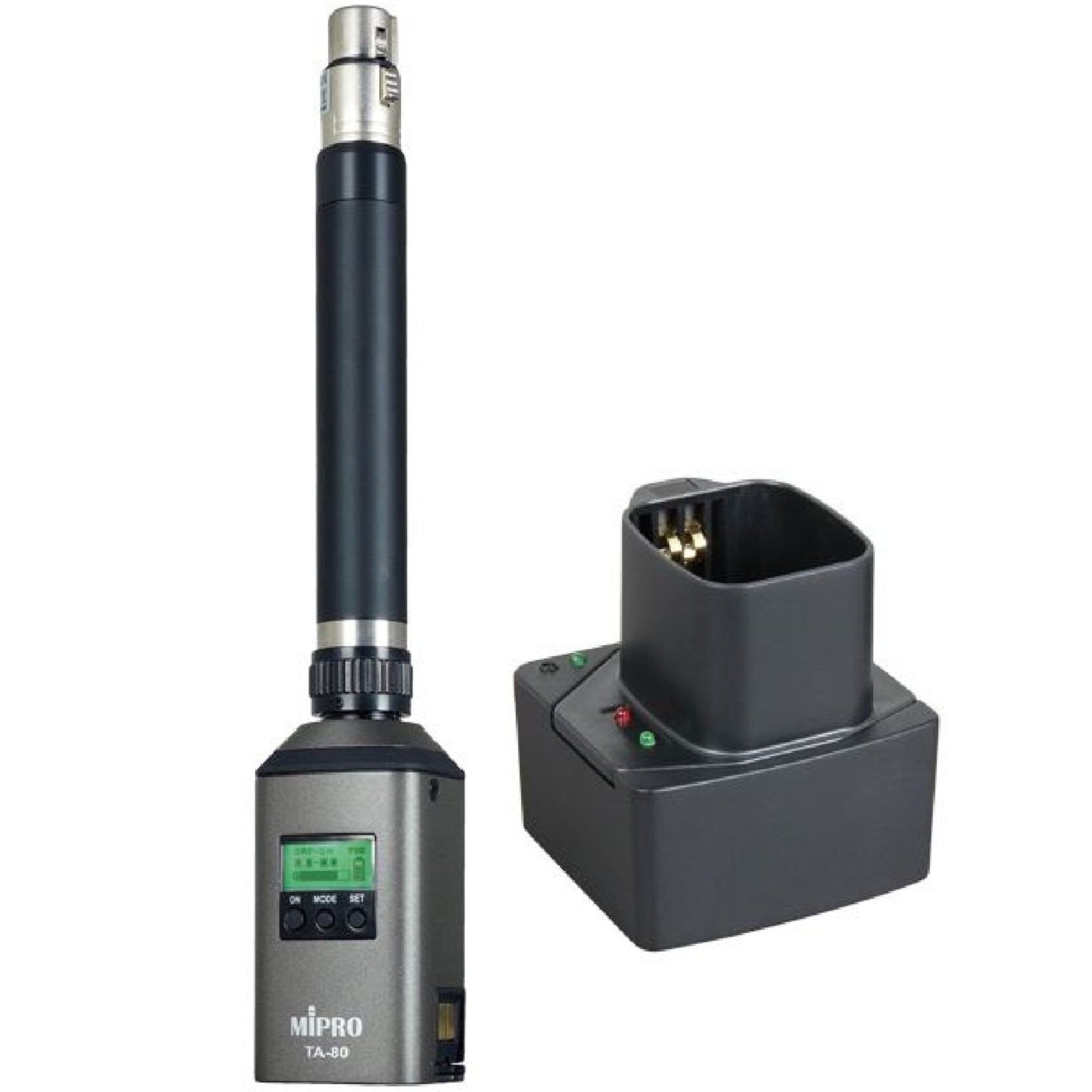

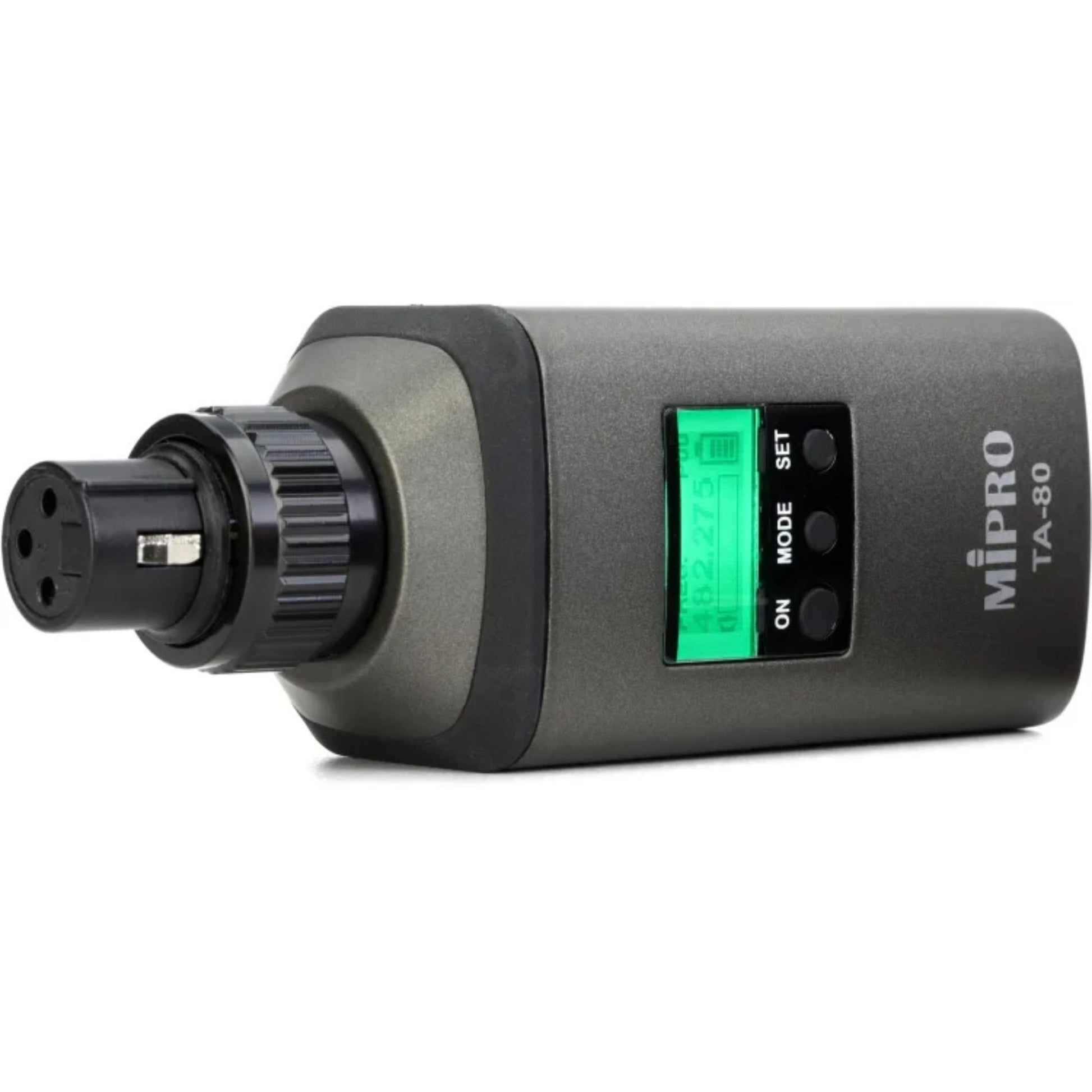

TA-80

Housing

Aluminum alloy

Frequency Range

UHF 480 – 960 MHz

Switching Bandwidth

64 MHz

RF Output Power

10 mW / 50 mW switchable (country dependent)

Spurious Emissions

-60 dBc

Antenna

Internal

Modulation Type

Digital modulation fixed envelope

AF Input Level

2 V max (0 dB), 7 V max (-12 dB), 20 V P-P by protective circuit

LCD Display

Group, Channel, Frequency, AF gain, Low-cut, Limiter, Encryption status, RF power, Phase, Lock, Mute mode, Battery & Error codes

Gain Setting

+30 dB to -18 dB (9 steps), 0 dB = mic sensitivity

Phantom Power

Selectable 12 V / 48 V (10 mA max.)

AF Frequency Response

20 Hz – 20 kHz, selectable 100 Hz low cut filter

Mic Input

Balanced XLR

Battery Type

ICR 18500 lithium battery

Battery Life

> 8 hours (10 mW, phantom off) / > 4.5 hours (50 mW, 48 V phantom)

Current Consumption

Approx. 140 mA (low power, phantom off)

Dimensions (W × H × D)

44 × 114 × 37 mm / 1.7 × 4.5 × 1.5 "

Net Weight

Approx. 165 g / 5.8 oz
