TCG24/90M

PRICE FOR INQUIRY

Each pair is individually insulated with black and number-printed PVC jacket
Excellent to work with due to the use of a special AL/PT-foil
Flexible due to the special wire construction
Good shielding due to the overall and individual wire pair shielding
Reasonable cable for the construction of stage box systems and multi-pair systems
Dependable cable for permanent installation in installation technologies

ROXTONE

Price for Inquiry

UNIT: PIECE/S

Product Code: SKU:ROXT-TCG24/90M-CHN-0683

Each pair is individually insulated with black and number-printed PVC jacket
Excellent to work with due to the use of a special AL/PT-foil
Flexible due to the special wire construction
Good shielding due to the overall and individual wire pair shielding
Reasonable cable for the construction of stage box systems and multi-pair systems
Dependable cable for permanent installation in installation technologies

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

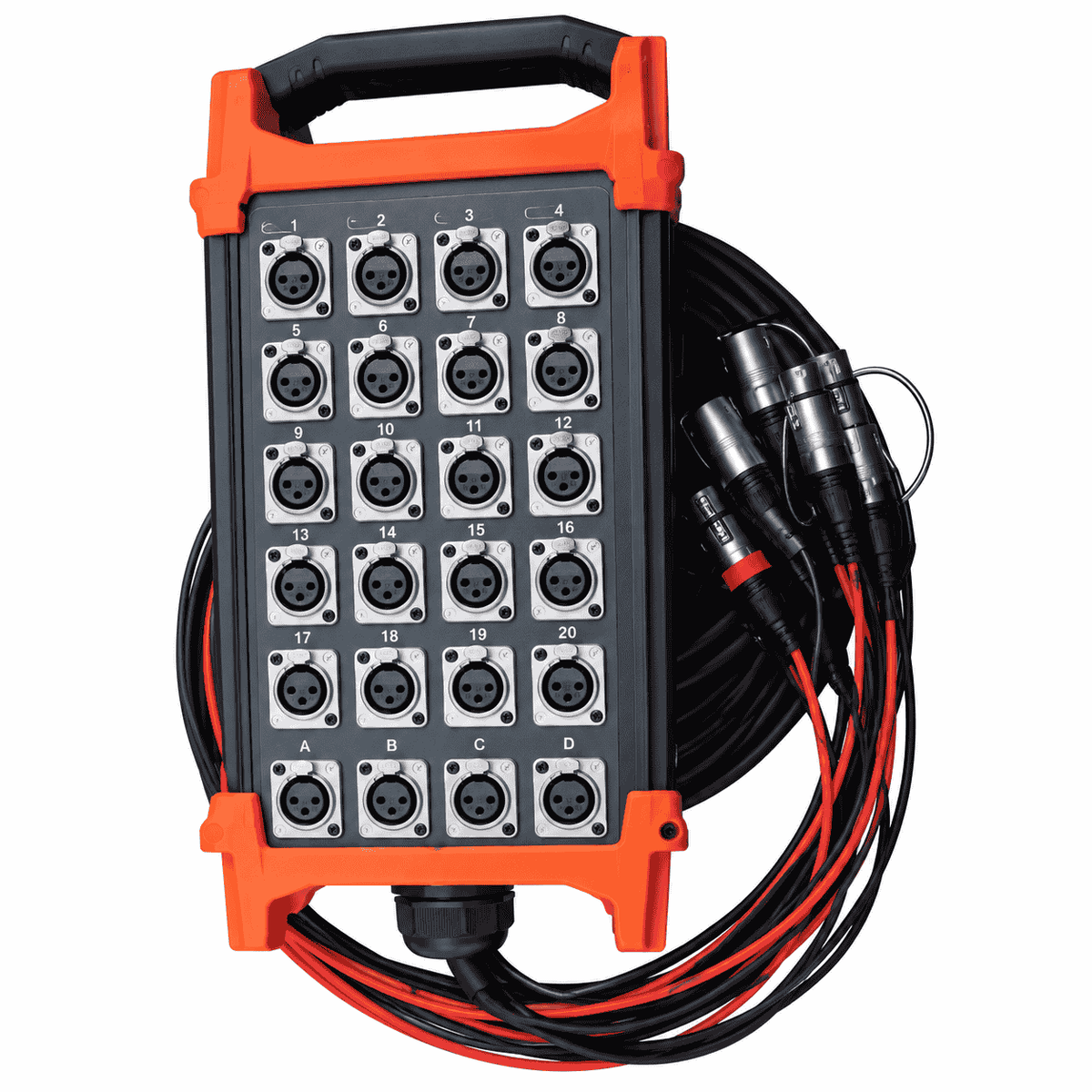

ROXTONE TCG24/90M

Key Specifications
System Type	24 × 2 × 0.22 mm² (Multi-pair)
Outer Diameter	25 mm
Conductor Gauge	AWG 24 (28 × 0.10 mm strands)
Shielding	AL/PT-foil + Tin-plated Drain Wire
Shielding Factor	100% Coverage
Electrical Performance (per 1m / 1km)
Capacitance (Cond./Cond.)	63 pF / m
Conductor Resistance	< 87 Ω / km
Insulation Resistance	> 1 GΩ / km
Physical & Environmental
Jacket Material	Flexible PVC (Black)
Temperature Range	-20 °C to +70 °C
