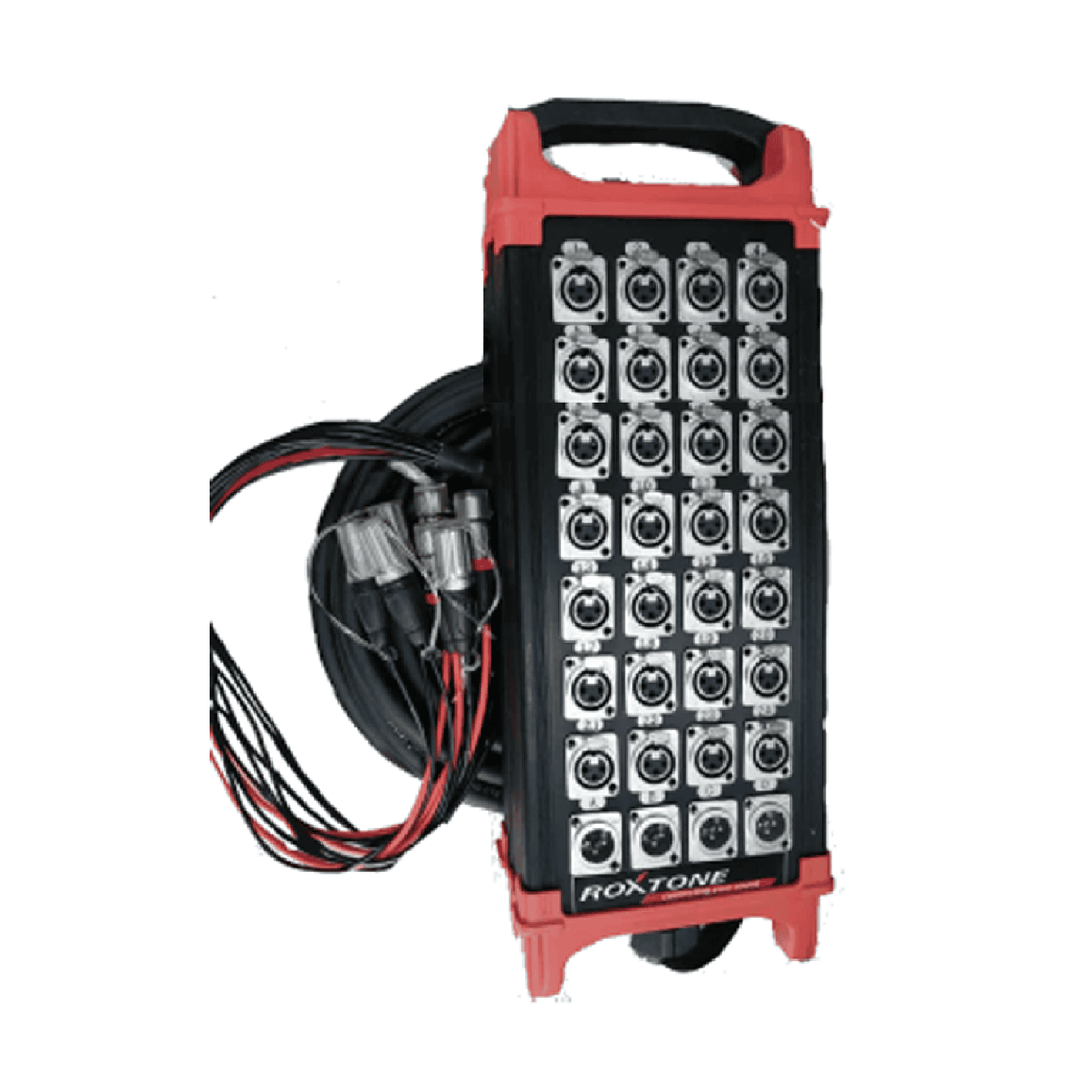

Key Specifications

Outer PVC Jacket Diameter

28 mm

Individual Pair Jacket Diameter

3.5 mm (Conductive PVC)

AWG

24

Number of Inner Conductors

32 x 2 x 0.22 mm² (32 Balanced Pairs)

Copper Strand (per Cond.)

28 x 0.10 mm

Conductor Insulation

PE (Polyethylene) 1.3 mm

Shielding

AL/PT-foil + Drain Wire (7 x 0.18 mm tinned copper)

Shielding Factor

100 %

Temperature Range

-20 °C to +70 °C

Electrical Data

Capacitance (Cond./Cond.)

63 pF per 1 m

Capacitance (Cond./Shield.)

107 pF per 1 m

Conductor Resistance

< 87 Ω per 1 km

Shielding Resistance

99 Ω per 1 km

Insulation Resistance

> 1 GΩ per 1 km

Attenuation (per 100 meters)

1 MHz / 3 MHz

2.10 dB / 3.60 dB

6 MHz / 8 MHz

5.00 dB / 5.80 dB

10 MHz

6.50 dB
