Key Specifications

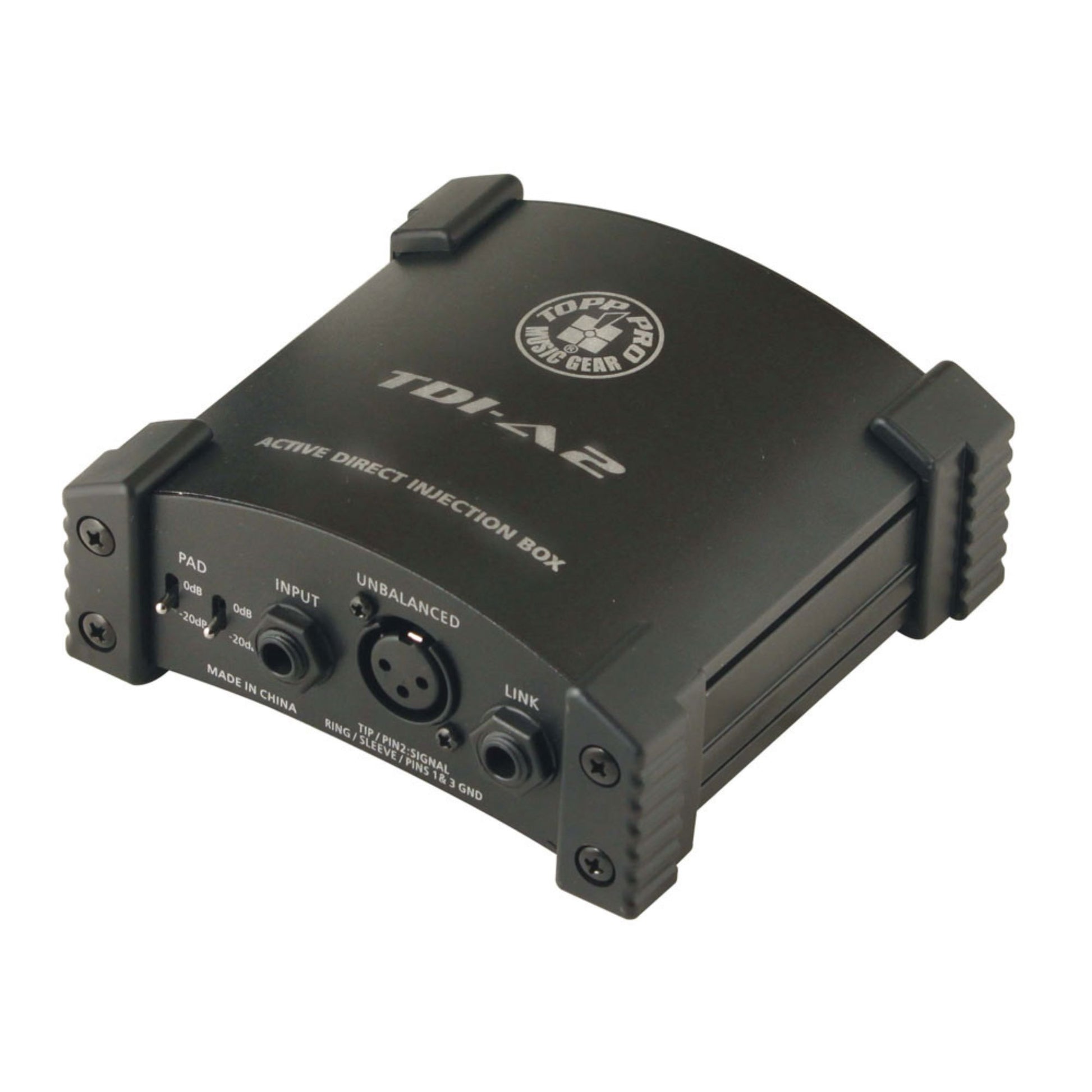

Product Model

TDI-A2

Device Type

Active Direct Injection (DI) Box

Input Impedance (0dB)

1 MΩ (High Impedance)

Max Input Level

+13 dB (at 0dB) / +33 dB (at 20dB)

Audio Performance

Frequency Response

10 Hz to 30 kHz (±1dB)

Noise / THD

-108 dBu / < 0.02% (@ 1 kHz)

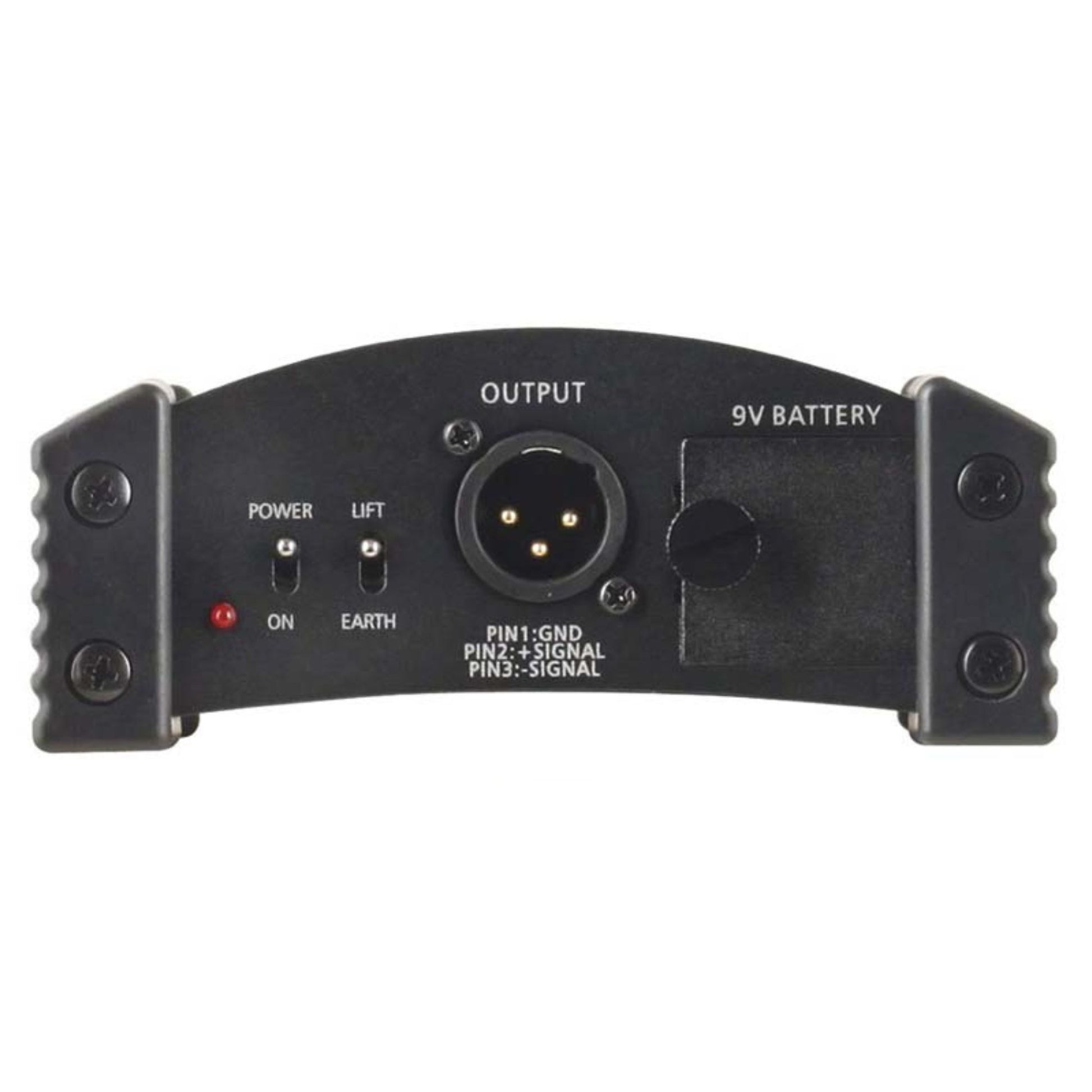

Output Type

3-Pin XLR, Transformer Balanced

Power & Connectivity

Phantom Power

+20V DC to +48V DC

Current Drain

< 8mA (Phantom) / < 2mA (Battery)

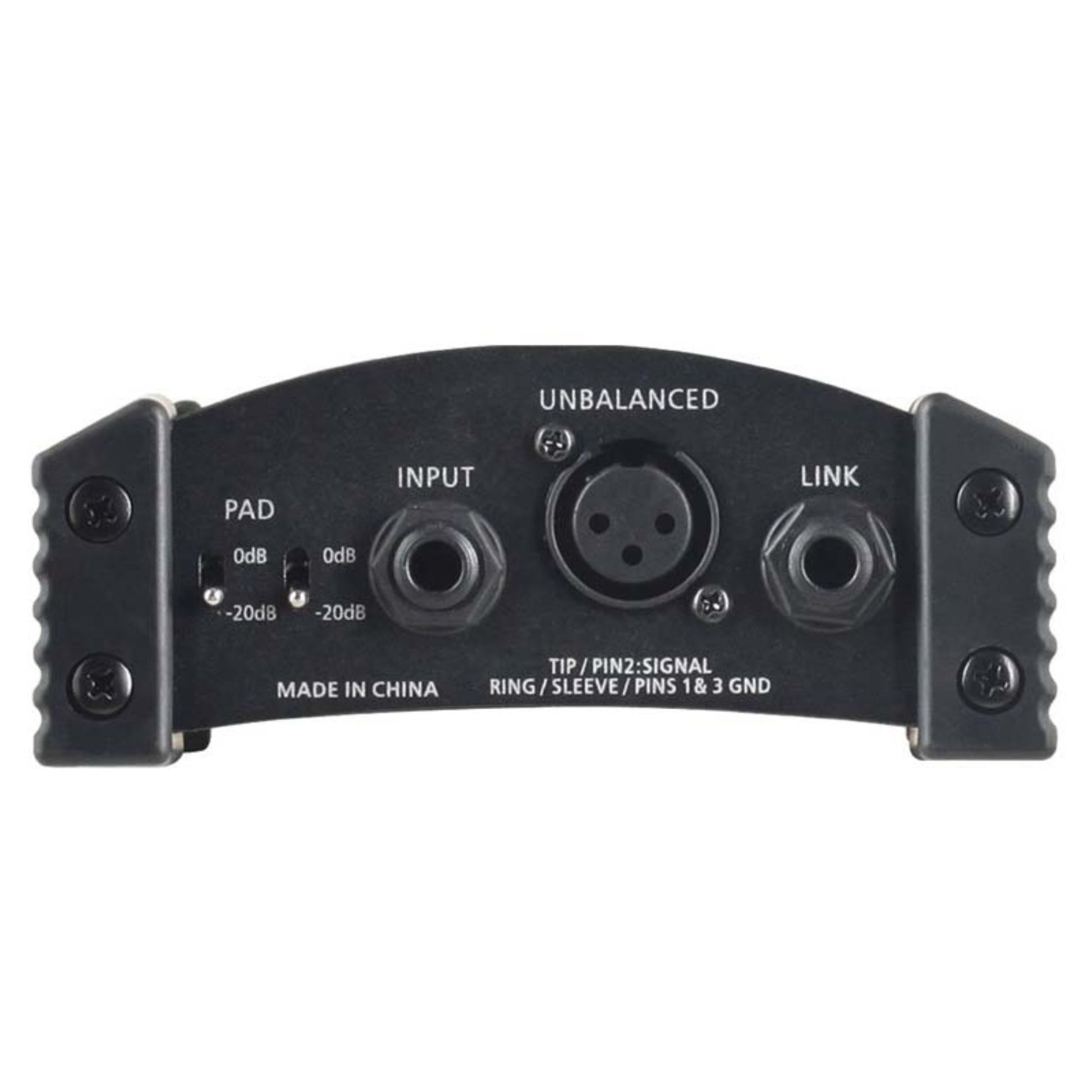

Input Connectors

1/4" Mono Jack, 3-Pin XLR, 1/4" Link Out

Physical

Dimensions (WxDxH)

130 x 127 x 45 mm

Weight

0.6 kg (1.32 lbs)
