Key Specifications

Product Model

TEQ-231 MKII / 231 SW

Device Type

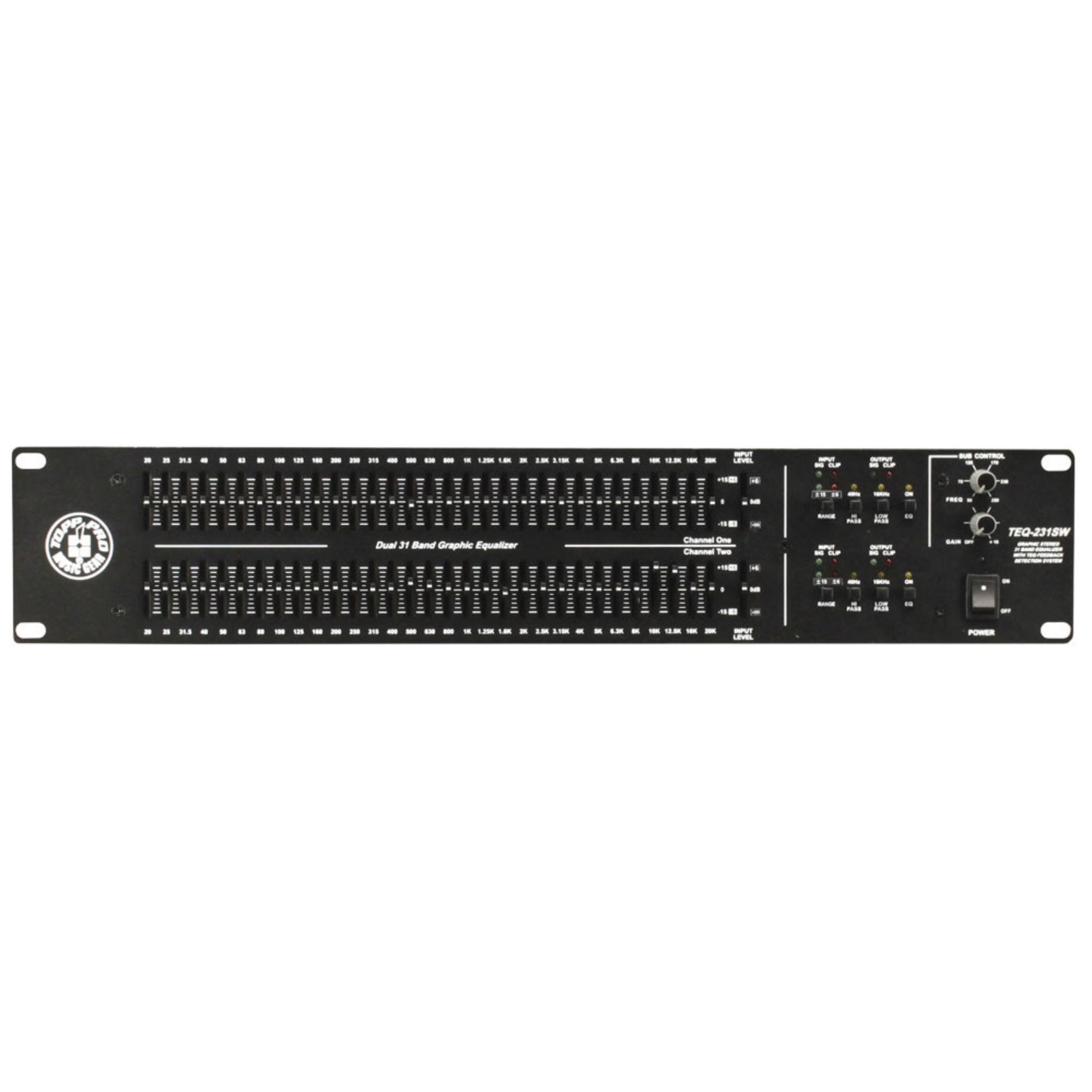

Dual 31-Band Graphic Equalizer

Filter Spacing

1/3 Octave (ISO Spacing)

Slider Type

20 mm with Positive Center Detent

Audio Performance

Frequency Response

20 Hz to 50 kHz (-1.5 dBu)

S/N Ratio

>110 dB

THD + N

< 0.01% (@ 1 kHz)

Selectable Range

±6 dB or ±12 dB

Connectivity & Filters

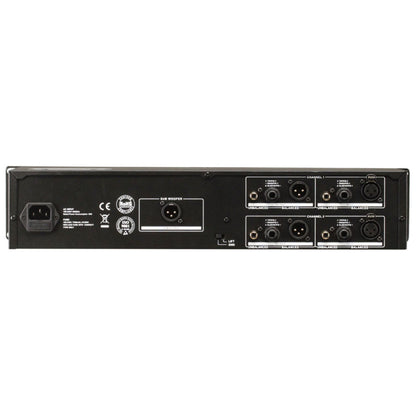

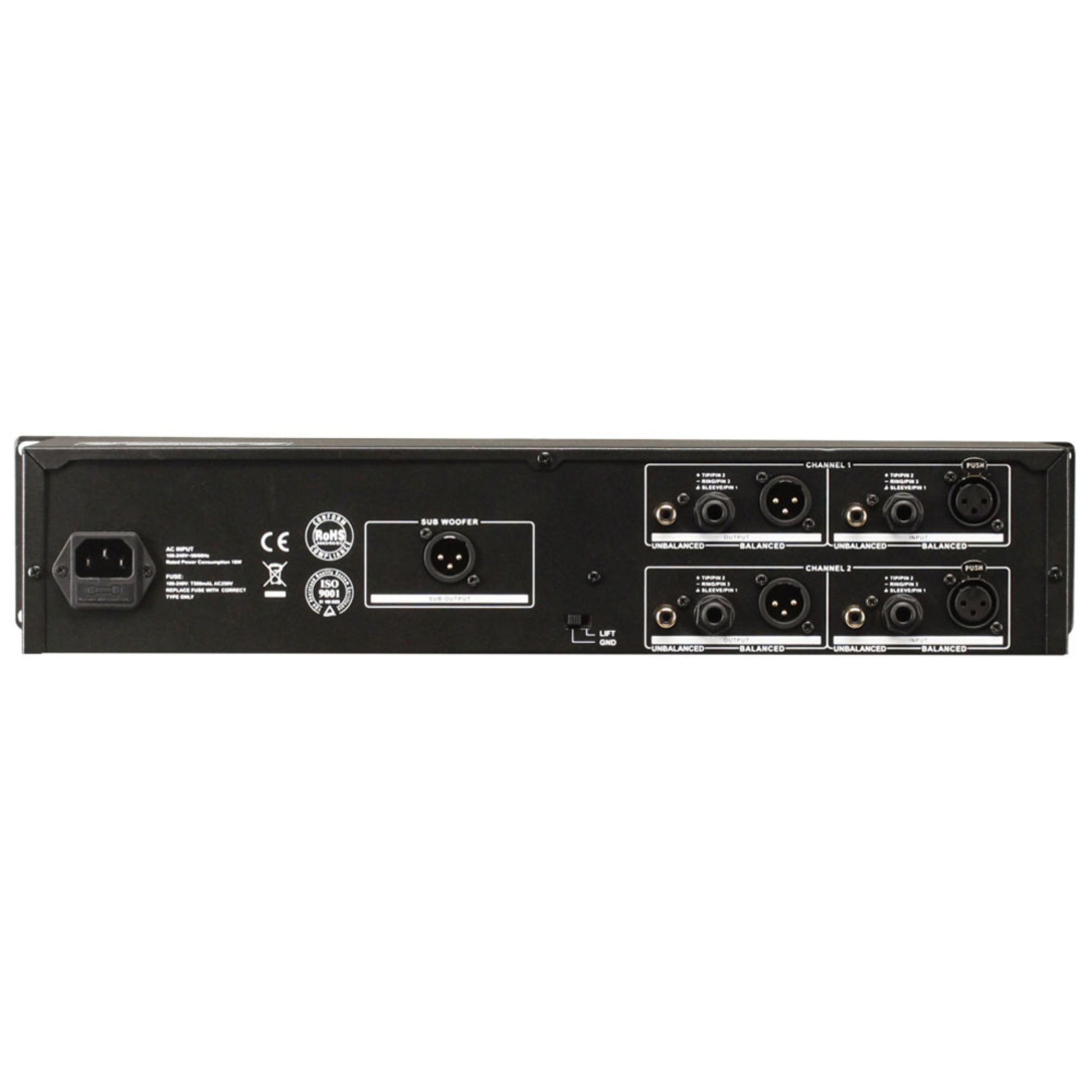

Input/Output Connectors

XLR, 1/4" TRS (Balanced), RCA (Unbalanced)

High Pass Filter

40 Hz (12 dB/oct)

Low Pass Filter

16 kHz (12 dB/oct)

Physical & Power

Dimensions (WxDxH)

483 x 220 x 88 mm (2U Rack)

Power Consumption

18 Watts
