Key Specifications

I/O

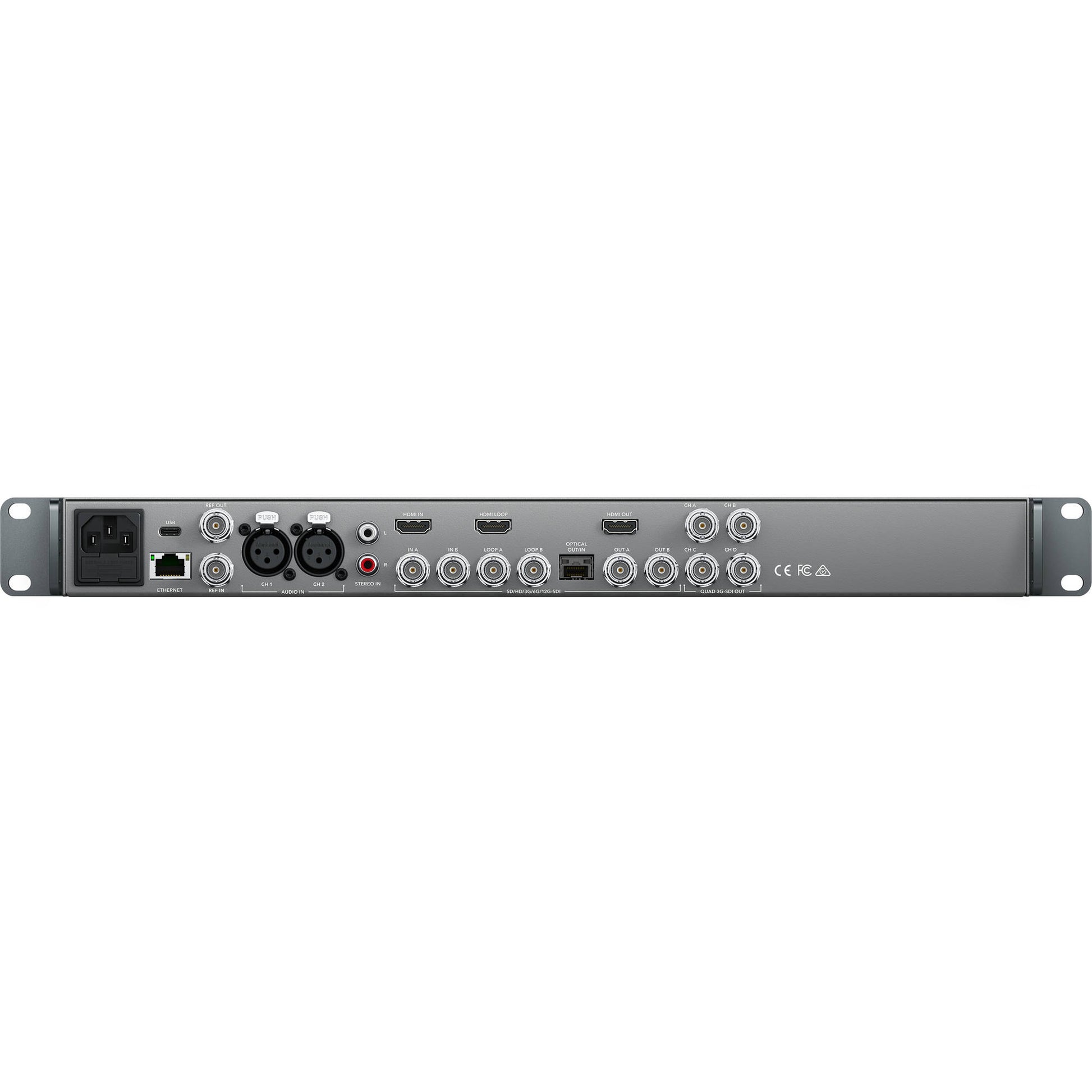

• Inputs: 2 x BNC (12G-SDI), 1 x HDMI 2.0, 1 x Optical Fiber (optional), 1 x Stereo RCA, 2 x XLR, 1 x BNC (reference), 1 x USB-C, 1 x RJ45 (Ethernet)
• Outputs: 2 x BNC (12G-SDI), 4 x BNC (3G-SDI), 1 x HDMI 2.0, 1 x Optical Fiber (optional), 1 x BNC (reference)

Format Support

• 4K/UHD: 3840x2160p and 2048x1080p up to 60 fps
• HD: 1080p, 1080i, 1080PsF, 720p
• SD: NTSC, PAL

Technical Standards

• SDI Compliance: SMPTE 259M, 292M, 296M, 372M, 425M
• SDI Metadata: VITC/ATC, SMPTE 12M, WSS, RP186, AFD, 608/708 Closed Captioning
• Video Sampling: 4:2:2
• Color Depth: 10-bit
• Color Space: REC 601, REC 709
• Audio Sampling: HD: 24-bit, 48 kHz; SD: 20-bit, 48 kHz

General & Power

• OS Compatibility: Mac OS X 10.10+; Windows 8.1, 10
• Power Input: 100-240 VAC, 50/60 Hz
• Dimensions: 19 x 1.75 x 5" (48.3 x 4.4 x 12.7 cm)
• Weight: 4.4 lb (2 kg)

Environmental

• Operating Temp: 41 to 122°F (5 to 50°C)
• Storage Temp: -4 to 113°F (-20 to 45°C)
• Relative Humidity: 0-90% non-condensing
