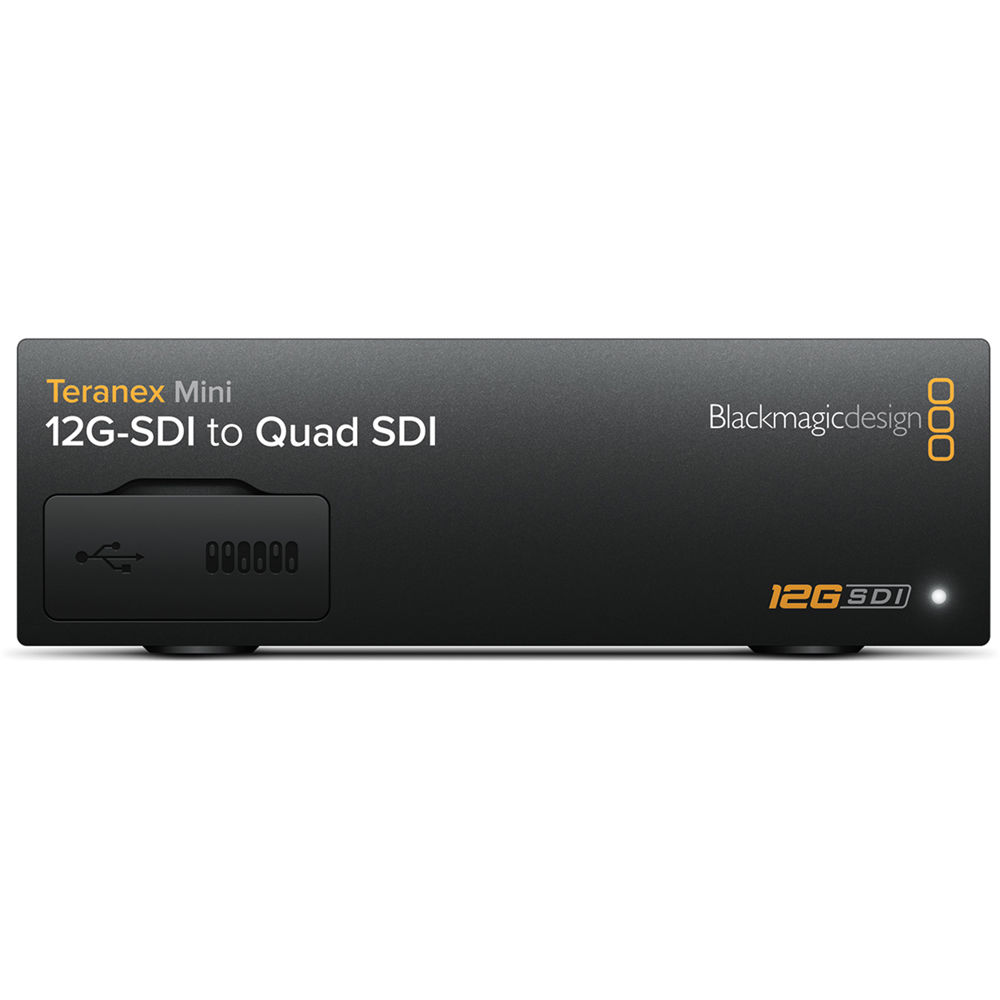

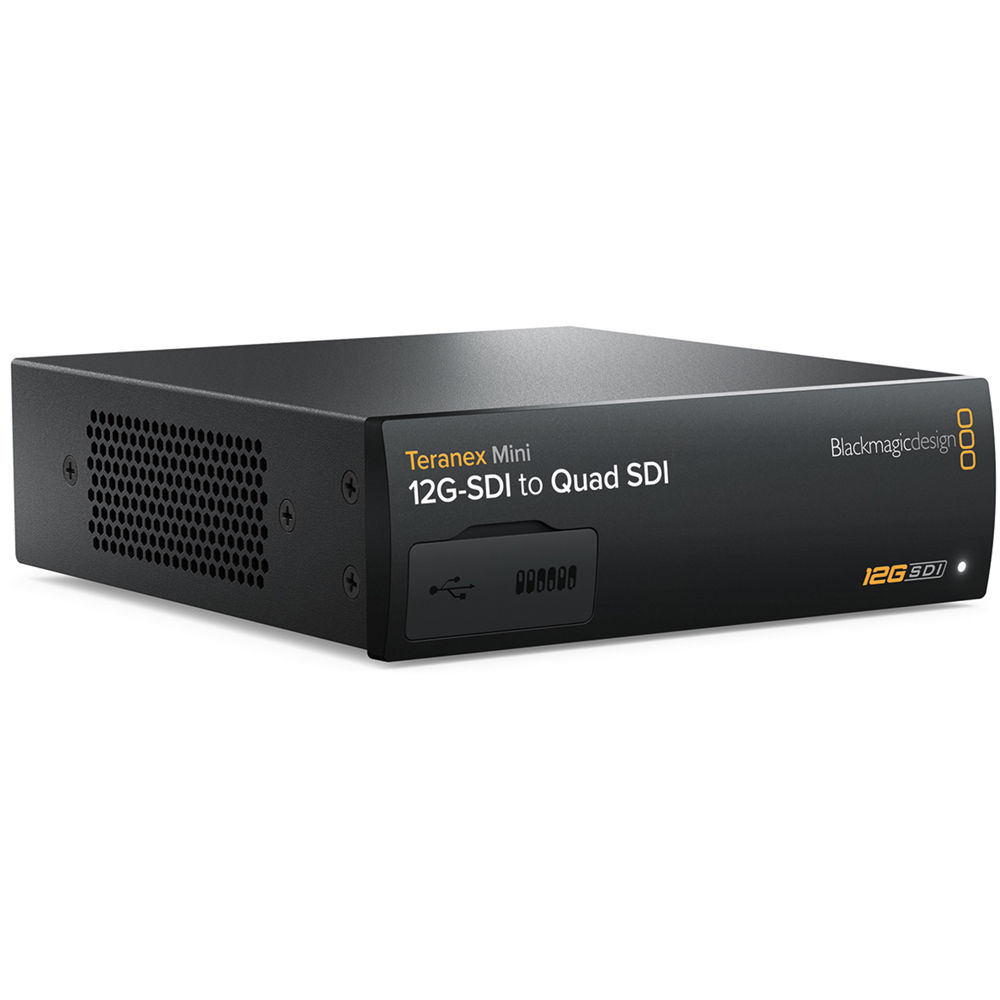

TERANEX MINI 12G-SDI TO QUAD SDI

Name: TERANEX MINI 12G-SDI TO QUAD SDI
Brand: BLACKMAGICDESIGN
SKU: BMD-TERAM12GTOQSDI-CHN-465
Price: 46948.00 PHP
Availability: InStock

1 3

Key Features

1 x 12G-SDI Input, 12G-SDI Loop Output
4 x 3G-SDI Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
16-Channel, 24-Bit, 48 kHz Audio Support
Control via DIP Switches or Software
Power via PoE or IEC C14 Power Cable
Ethernet or USB for Firmware Updates

TERANEX MINI 12G-SDI TO QUAD SDI

BLACKMAGICDESIGN

₱46,948.00 VAT INC.

~~₱48,600.00~~ ₱46,948.00

UNIT: PIECE/S

Product Code: SKU:BMD-TERAM12GTOQSDI-CHN-465

Key Features

1 x 12G-SDI Input, 12G-SDI Loop Output
4 x 3G-SDI Outputs
Supports SD, HD, UHD 4K & DCI 4K Signals
Automatic Input Signal Detection
16-Channel, 24-Bit, 48 kHz Audio Support
Control via DIP Switches or Software
Power via PoE or IEC C14 Power Cable
Ethernet or USB for Firmware Updates

Authorized Dealer

Certified Quality Products

After-Sales Support

Secure Payments

Quantity

Add to Quotation

View full details

BLACKMAGICDESIGN TERANEX MINI 12G-SDI TO QUAD SDI

Key Specifications

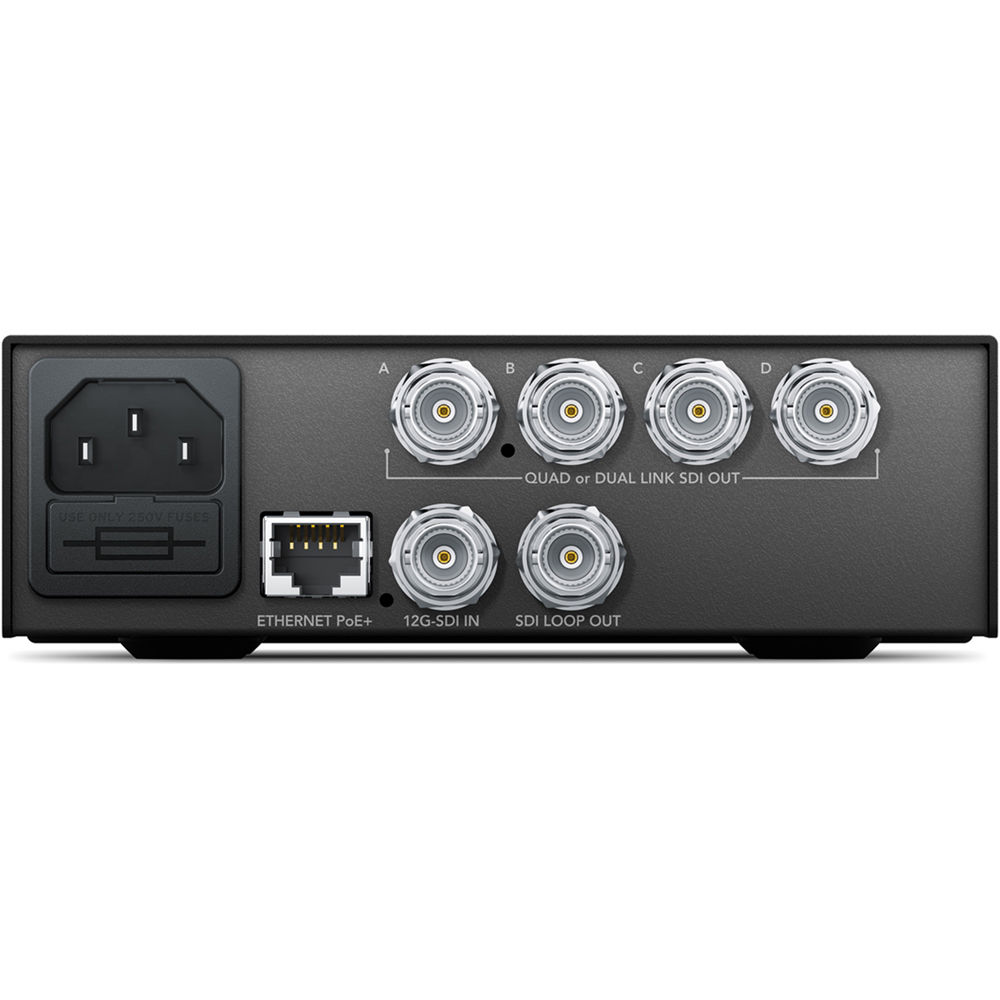

I/O	Video Input: 1 x 12G-SDI (BNC Female) Video Outputs: 4 x 3G-SDI (BNC Female) Video Loop Output: 1 x 12G-SDI (BNC Female) Audio: 16-Channel embedded SDI audio Other: 1 x RJ45 LAN (PoE), 1 x USB-A (Firmware)
Supported Formats	SDI (4:4:4/4:2:2 RGB, YUV) DCI 4K: 23.98/24/25 fps UHD 4K: up to 60 fps DCI 2K: up to 25 fps HD (1080p, 1080i, 720p): up to 60 fps SD (480i, 576i)
Standards & Compliance	Video Standard Compliance: SMPTE 259M/292M/296M/372M/424M-A/424M-B/425M, ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 HDR Support: Not specified
Power & Physical	Power Input: 1 x IEC C14, PoE+ 802.3at Power Consumption: 16 W (90 to 240 VAC) Dimensions: 6.69 x 5.51 x 1.75" / 16.99 x 14 x 4.45 cm Weight: 1.28 lb / 581 g
Environmental	Operating Temperature: 32 to 104°F / 0 to 40°C Storage Temperature: -4 to 140°F / -20 to 60°C Humidity: 0 to 90% non-condensing
