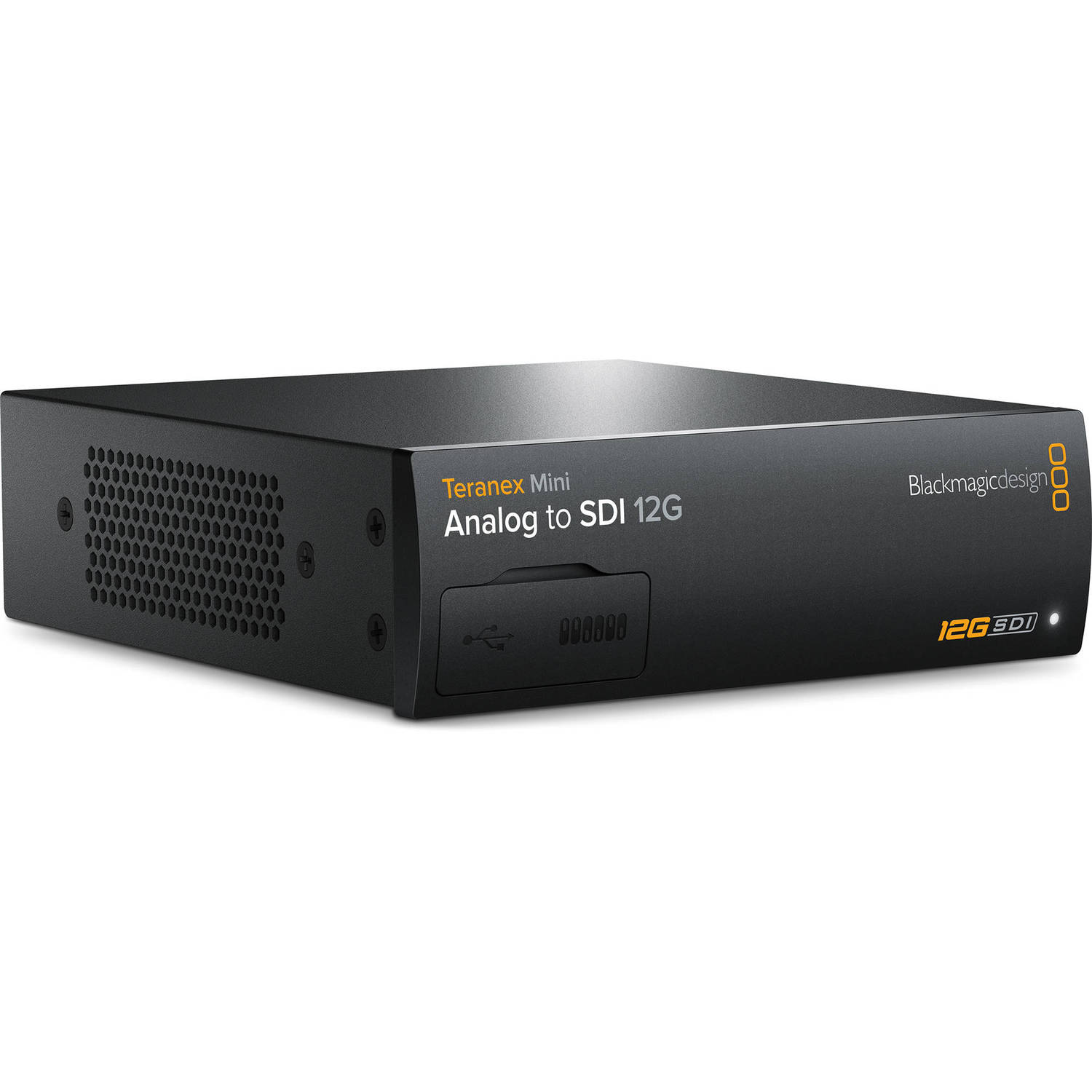

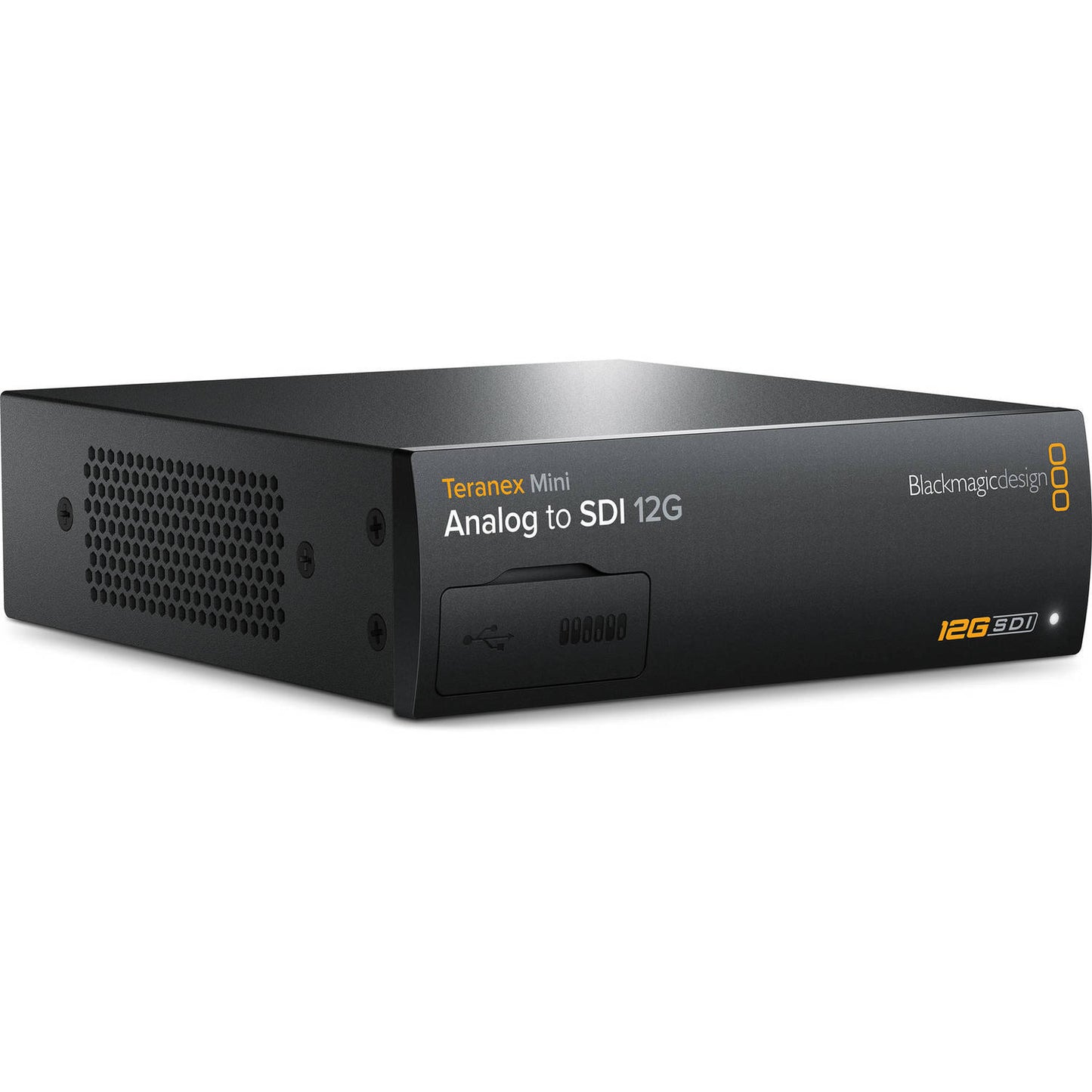

Supporting up to 12G-SDI data rates with intelligent heat dissipation, and offering features such as XLR connections and an Ethernet control and PoE port, the Teranex Mini Analog to SDI 12G Converter, from Blackmagic Design, is a highly improved solution for rack-mount as well as cable duct and desktop installations. Upconvert an analog video signal to up to Full 4K DCI 4096x2160p and route it out over up to two independent 12G-SDI outputs in SD, HD, 6G, or 12G-SDI formats. Run 4096x2160p signals approximately 70 ft using 6G-SDI cables, and carry lower-resolution signals, like 3G-SDI or HD-SDI, for much longer than standard lengths. When 12G-SDI cables will be available on the market, you'll be able to extend 4K DCI 4096x2160p signals for over 250 ft. You can also connect separate audio via full-size XLR inputs that are switchable between balanced analog and AES/EBU digital audio.

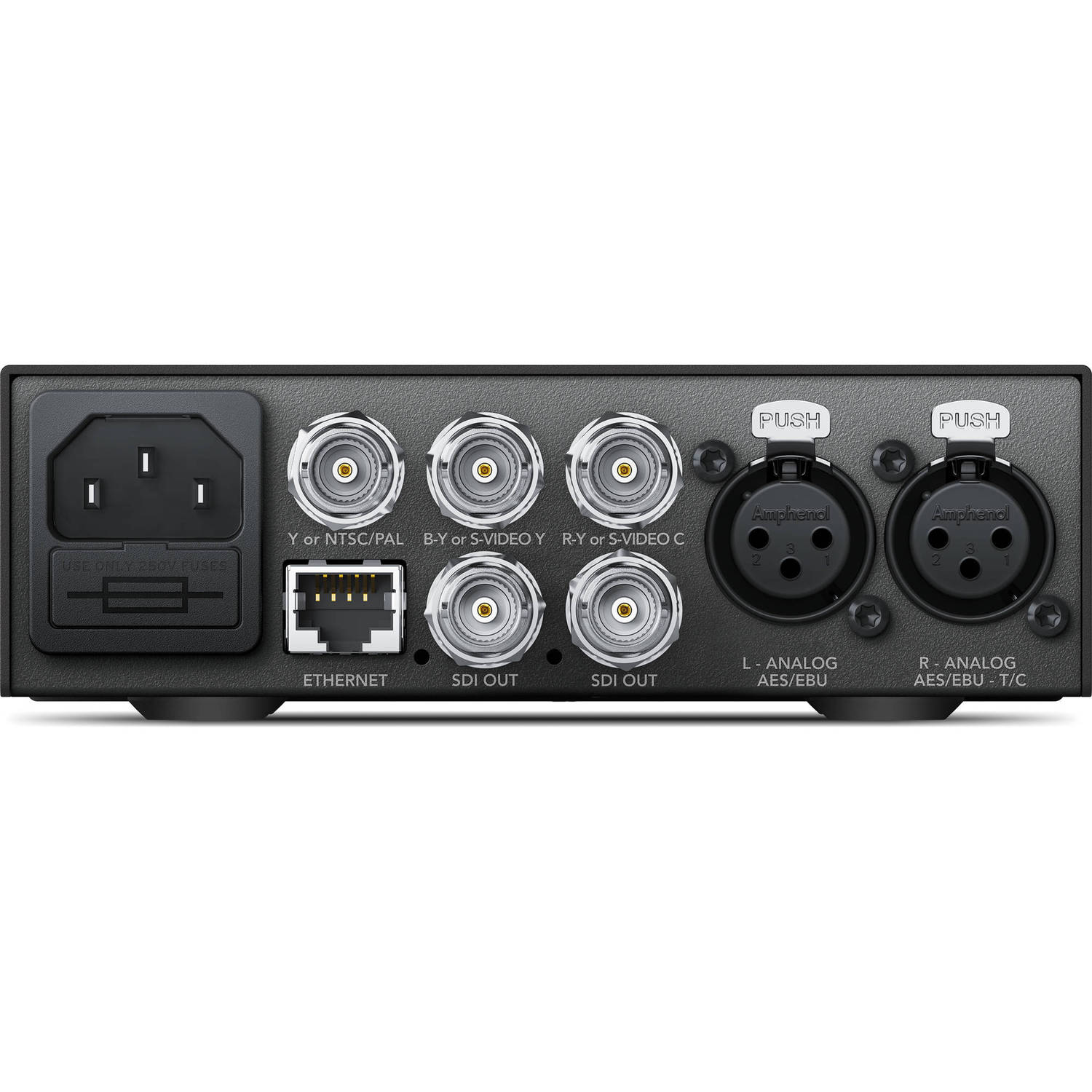

The compact size of the Teranex Mini makes it very useful for portable racks at live events or in broadcast trucks. Up to three units can easily be installed in an optional 1U 19" rack tray, and they can just as easily be removed, and all this with the advantage of 12G-SDI capability. The Ethernet port on the rear will allow you to manage the Teranex Mini remotely or can alternatively be used for power over Ethernet. If you don't want to use power over Ethernet, you won't have to deal with cumbersome power supplies, as the Teranex Mini features a built-in 90-240V power supply, and all you'll need is a standard IEC power cable, sold separately.
