Key Specifications

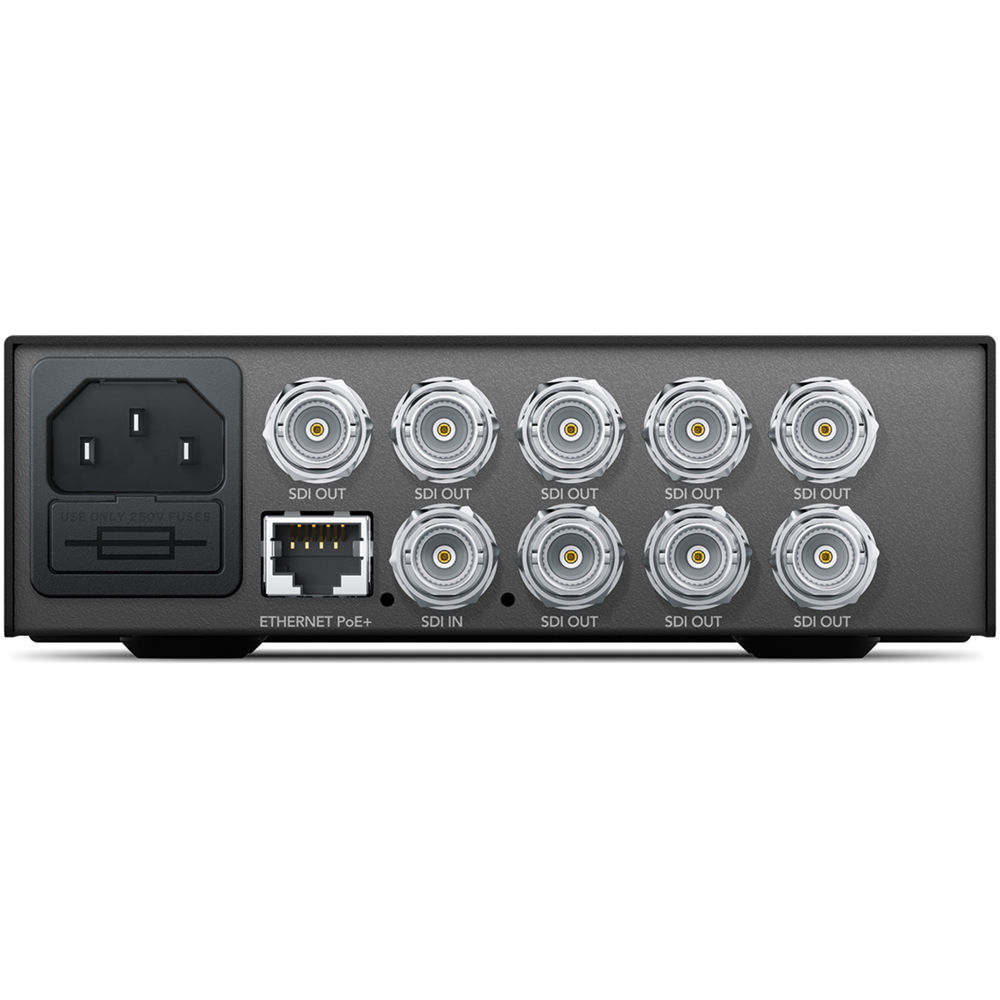

Inputs

1 x BNC (12G-SDI) Female

Outputs

8x BNC (12G-SDI) Female

Embedded Audio

SDI: 16-Channel

Video Format

• 4096 x 2160 (up to 25 fps)
• 3840 x 2160 (up to 60 fps)
• 2048 x 1080p/PsF (up to 25 fps)
• 1920 x 1080p/PsF (up to 60 fps)
• 720p (up to 60 fps)
• SD (720x576i, 720x480i)

Interfaces

Other I/O

• 1x RJ45 (10/100 Mbps Ethernet) Input/Output
• 1x Mini-USB (Firmware) Input

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M/425M/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Reclocking

Yes

HDR/HDCP/EDID Support

No

Transmission

Video Format

SDI (4:4:4/4:2:2)

Audio Format

Unspecified Digital Signal: 48 kHz / 24-Bit

Power

Power I/O

1x IEC C14 Input

Power Consumption

100 to 240 VAC (16 W)

General

Dimensions

6.7 x 5.5 x 1.8" / 170.2 x 139.7 x 45.7 mm

Weight

1.28 lb / 581 g

Operating Conditions

32 to 104°F / 0 to 40°C up to 90% Humidity

Packaging Info

Package Weight

2.2 lb

Box Dimensions (L x W x H)

9 x 7.7 x 2.5"
