Key Specifications

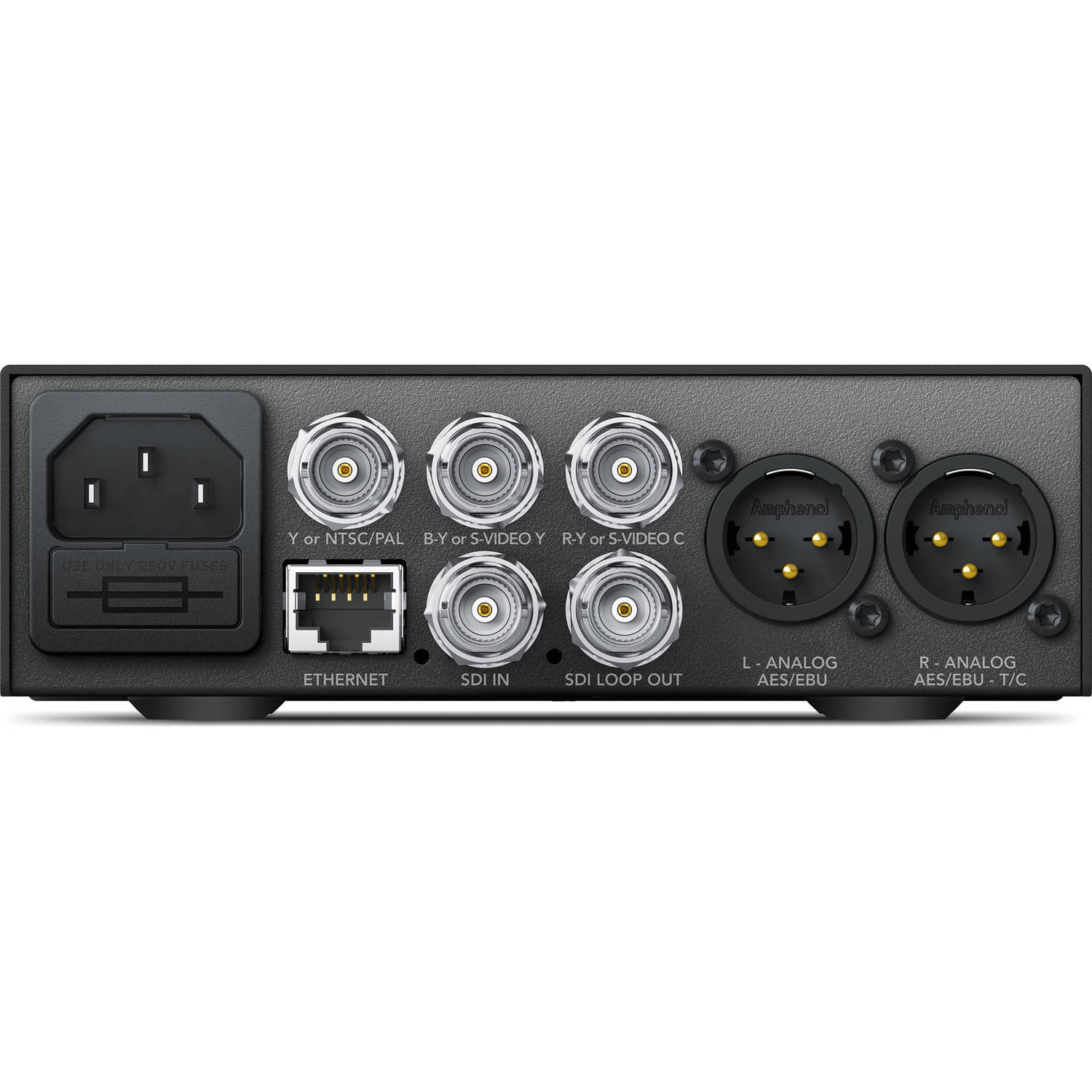

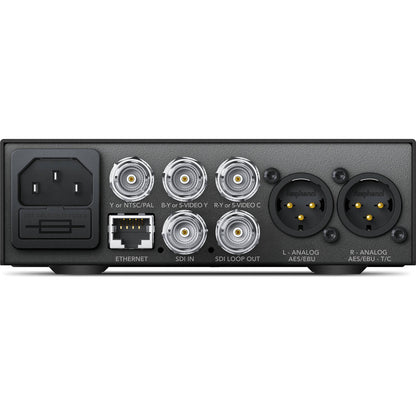

Video & Audio I/O

SDI Video Input

1x 12G-SDI SD/HD/2K/4K auto switching

SDI Video Output

1x 12G-SDI loop output

Analog Video Output

Component SD/HD, NTSC, PAL, and S‑Video

Analog Audio Output

2 channels balanced analog audio via XLR (Right XLR can be timecode)

AES/EBU Audio Output

4 channels 110 ohm balanced digital audio via XLR (Right XLR can be timecode)

SDI Standards & Sampling

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Re-Clocking

Yes

SDI Compliance

SMPTE 292M, 259M, 296M, 372M, 424M-B, 425M, ITU-R BT.656, BT.601

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

48 kHz, 24-bit

SDI Color Precision

4:2:2 and 4:4:4

Supported Formats

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

720p50/59.94/60, 1080i50/59.94/60, 1080PsF23.98/24, 1080p23.98/24/25/29.97/30/50/59.94/60

2K Format Support

2048 x 1080PsF23.98/24/25, 2048 x 1080p23.98/24/25

4K Format Support

3840 x 2160p and 4096 x 2160p (up to 60 fps)

Format Conversion

HD down conversion

Control & Power

Updates and Configuration

USB or Ethernet

Basic Settings Control

Mini Switches, USB, and Ethernet

Power Supply

Built-in international AC supply (90 - 240 VAC)

Power Over Ethernet (PoE)

Can be powered via 48 VDC using PoE

Power Consumption

15 W

Environmental & Physical

Operating Temperature

32 to 104°F (0 to 40°C)

Dimensions (W x H x D)

5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm)

Weight

1.5 lb (0.7 kg)

Packaging Info

Package Weight

1.95 lb

Box Dimensions (L x W x H)

10.1 x 7 x 2.5"
