Key Specifications

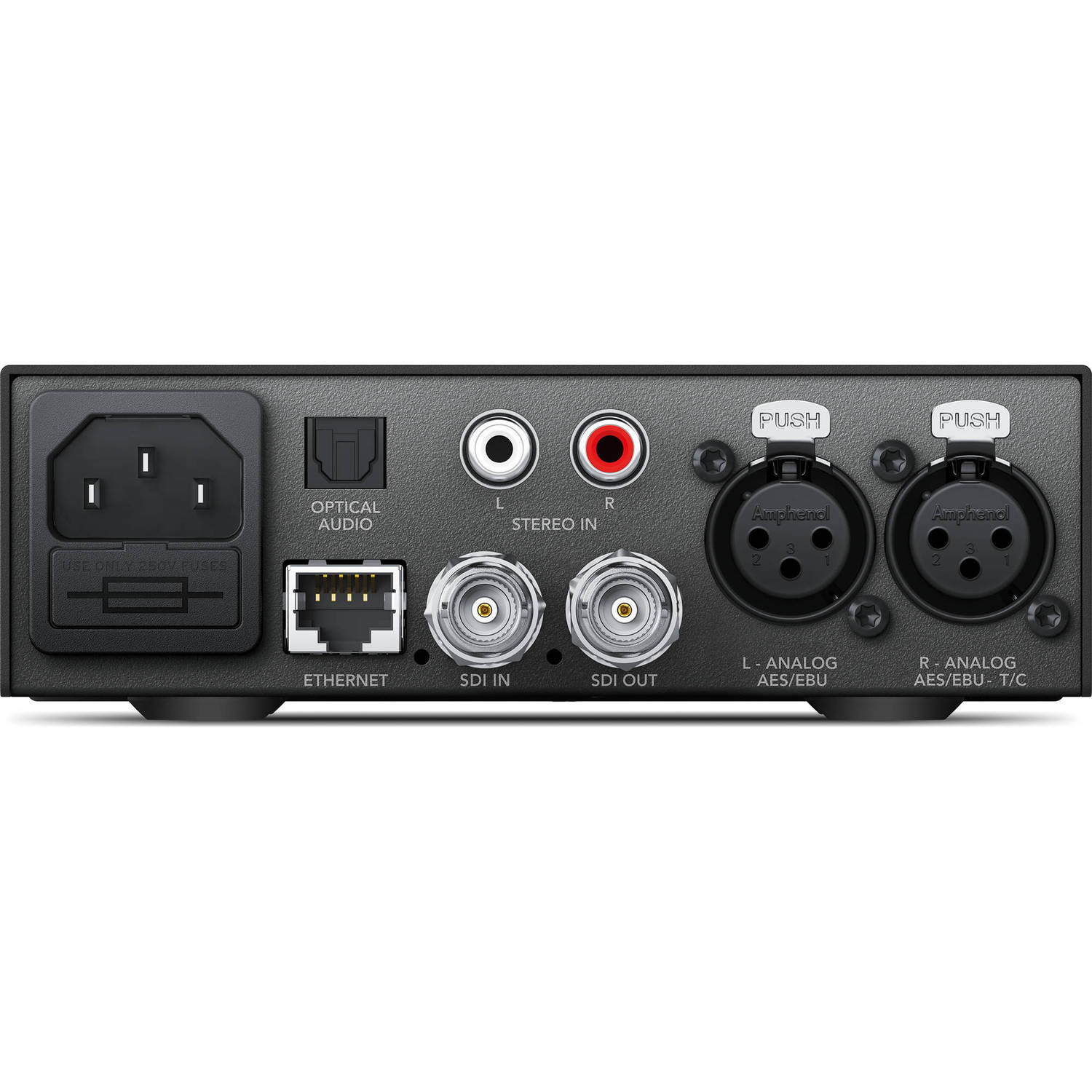

Video & Audio I/O

SDI Video Input

1x 12G-SDI (SD/HD/2K/4K auto switching)

SDI Video Output

1x 12G-SDI output

Analog Audio Output

• 2 channels balanced XLR (Right XLR can be timecode)
• 2 channel unbalanced RCA line level

AES/EBU Audio Output

4 channels 110 ohm balanced digital audio via XLR (Right XLR can be timecode)

Optical Audio Output

S/PDIF signal with TOSLINK connector

SDI Standards & Sampling

Multi Rate Support

Automatic switching between SD/HD/2K and 4K

Re-Clocking

Yes

SDI Video Rates

Auto switching (SD-SDI up to 12G-SDI)

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

48 kHz, 24-bit

SDI Color Precision

YUV 4:2:2 and RGB 4:4:4 in HD, 2K, and 4K

SDI Compliance

SMPTE 292M, 259M, 425M, ST-2036 and others

Supported Formats

SD Format Support

525/29.97 NTSC, 625/25 PAL

HD Format Support

720p50/59.94/60, 1080i50/59.94/60, 1080p/PsF (up to 60 fps)

2K Format Support

2048 x 1080p/PsF (up to 25 fps)

4K Format Support

3840 x 2160p and 4096 x 2160p (up to 60 fps)

Control & Power

Updates and Configuration

USB or Ethernet

Power Supply

Built-in international AC supply (90 - 240 VAC)

Power Over Ethernet (PoE)

Can be powered via 48 VDC using PoE

Power Consumption

15 W

Environmental & Physical

Operating Temperature

32 to 104°F (0 to 40°C)

Dimensions (W x H x D)

5.5 x 1.8 x 6.7" (14 x 4.6 x 17 cm)

Weight

1.3 lb (0.6 kg)

Packaging Info

Package Weight

1.85 lb

Box Dimensions (L x W x H)

8.819 x 7.638 x 2.205"
