Key Specification

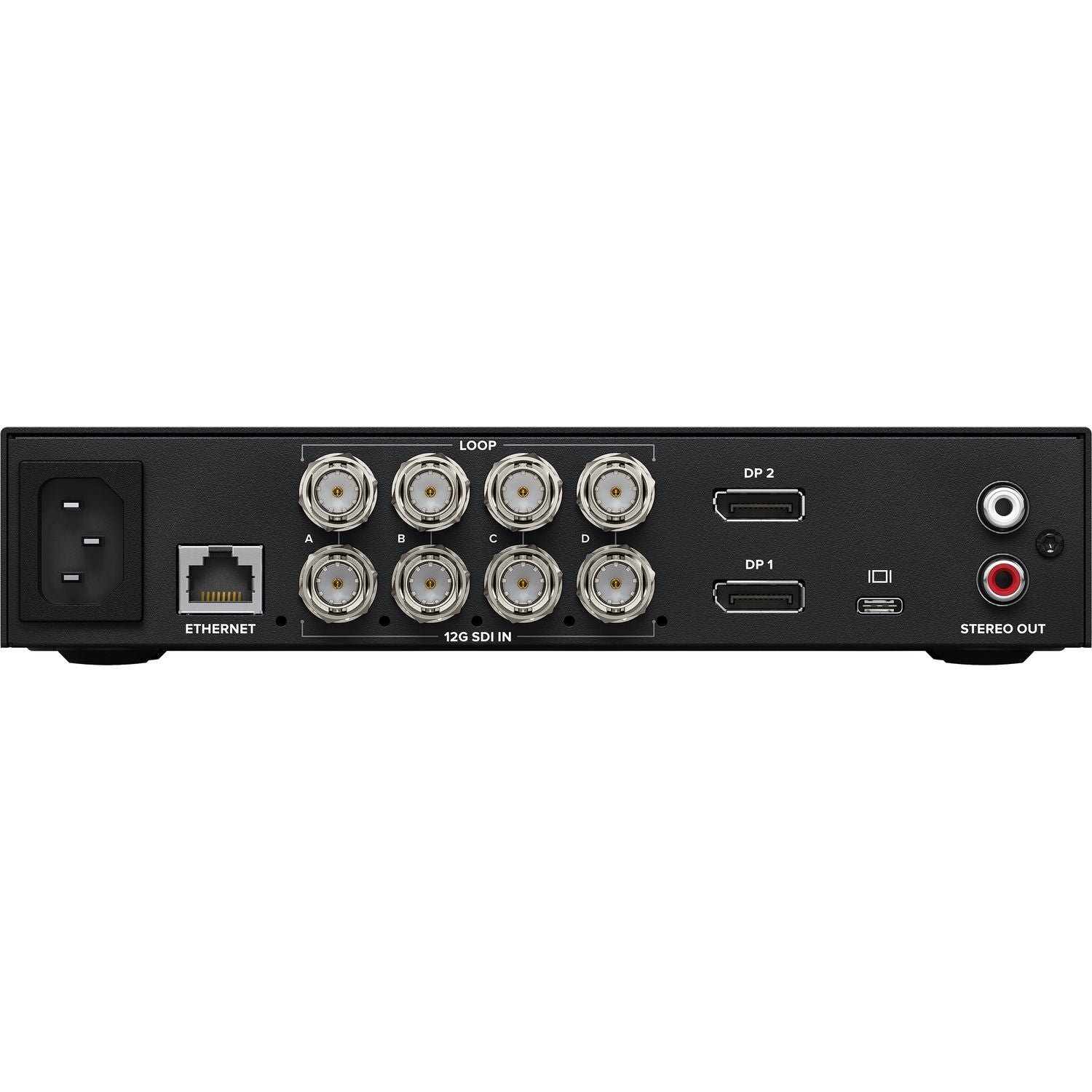

Inputs / Outputs

Video Inputs

4x BNC (12G-SDI)

Audio Inputs

No

Video Outputs

• 4x BNC (12G-SDI) (Loop Output)
• 2x DisplayPort (DisplayPort 1.4)
• 1x USB-C (DisplayPort 1.4)

Audio Outputs

2x RCA Analog

Other I/O

• 1x RJ45 Control
• 1x USB-C

Format Support

Input Video Format (SDI)

• DCI 8K, 8K, DCI 4K, UHD 4K, DCI 2K (up to 60 fps)
• 1080p, 1080i, 720p (up to 60 fps)

Output Video Format (SDI)

• DCI 8K, 8K, DCI 4K, UHD 4K, DCI 2K (up to 60 fps)
• 1080p, 1080i, 720p (up to 60 fps)

Output Audio Format

Analog: 48 kHz / 24-Bit

Embedded Audio

SDI: 16-Channel

Standards

Video Standard Compliance

SMPTE 259M/292M/296M/372M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10

Hardware

Display Size

2.2"

OS Compatibility

Windows 10, macOS 10.14 or Later

Power

Power I/O

1x IEC C14 Input

Power Consumption

100 to 240 VAC (35 W)

Environmental

Operating Temperature

32 to 104°F / 0 to 40°C

Storage Temperature

-4 to 140°F / -20 to 60°C

Operating Humidity

0 to 90%

General

Dimensions

8.27 x 6.93 x 1.73" / 21.01 x 17.6 x 4.39 cm

Weight

2.6 lb / 1.18 kg

Packaging Info

Package Weight

2.985 lb

Box Dimensions (L x W x H)

11.4 x 8.6 x 3.5"
