Key Specifications

Max I/O Capacity

48 × Input / 22 × Output

Number of Analog Input Channels

32 (32 Mono / 2 Stereo)

Number of Mic Preamps

24

Number of Analog Output Channels

16

Faders & Level Adjustment

33 × 3.9" / 100 mm Motorized Fader

Built-In Effects

8 × Effect (Type Unspecified)

Analog Inputs

1 × 1/4" TS Footswitch Input
32 × Combo XLR-1/4" TRS Balanced Mic/Line Input
2 × Stereo RCA Unbalanced Input

Analog Outputs

16 × XLR Balanced Output
1 × 1/4" TRS Unbalanced Headphone Output

Digital I/O

1 × RJ45 (Network)

USB I/O

1 × USB-B (Host Connection)
2 × USB-A (Control, External Memory)

Rack Mountable

No

Mixer

Max I/O Capacity

48 × Input / 22 × Output

Number of Analog Input Channels

32 (32 Mono / 2 Stereo)

Number of Mic Preamps

24

Number of Analog Output Channels

16

Mix Routing

1 × Main LRC
1 × Subgroup
6 × Stereo Aux Send
8 × Mono Aux Send

Groups

8 × DCA Group

Presets

Yes

Display

Touchscreen

Faders & Level Adjustment

33 × 3.9" / 100 mm Motorized Fader

Signal Processing

Gain/Trim Range

-6 dB to +66 dB

EQ

No

Graphic EQ

Yes

Built-In Effects

8 × Effect (Type Unspecified)

Audio Delay

Yes

Digital Audio

Sample Rates

48 kHz

Bit Depth

Record: 24-Bit

Performance

Frequency Response

20 Hz to 20 kHz +0.5/-1.5 dB

Max Input Level

Mic/Line Input: +30 dBu
Stereo Input: +10 dBV

Analog Dynamic Range

107 dB at Min Gain

Headphone Output Power

3 mW / 75 mW (Max)

I/O Impedance

Combo XLR-1/4" Input: 7.5 kΩ
Stereo RCA Input: 10 kΩ
XLR Output: 75 Ω
Headphone Output: 100 Ω

Noise Floor

-85 dBu A-Weighted

THD

< 0.05% at Min Gain (+4 dBu)

Signal Generator

Yes

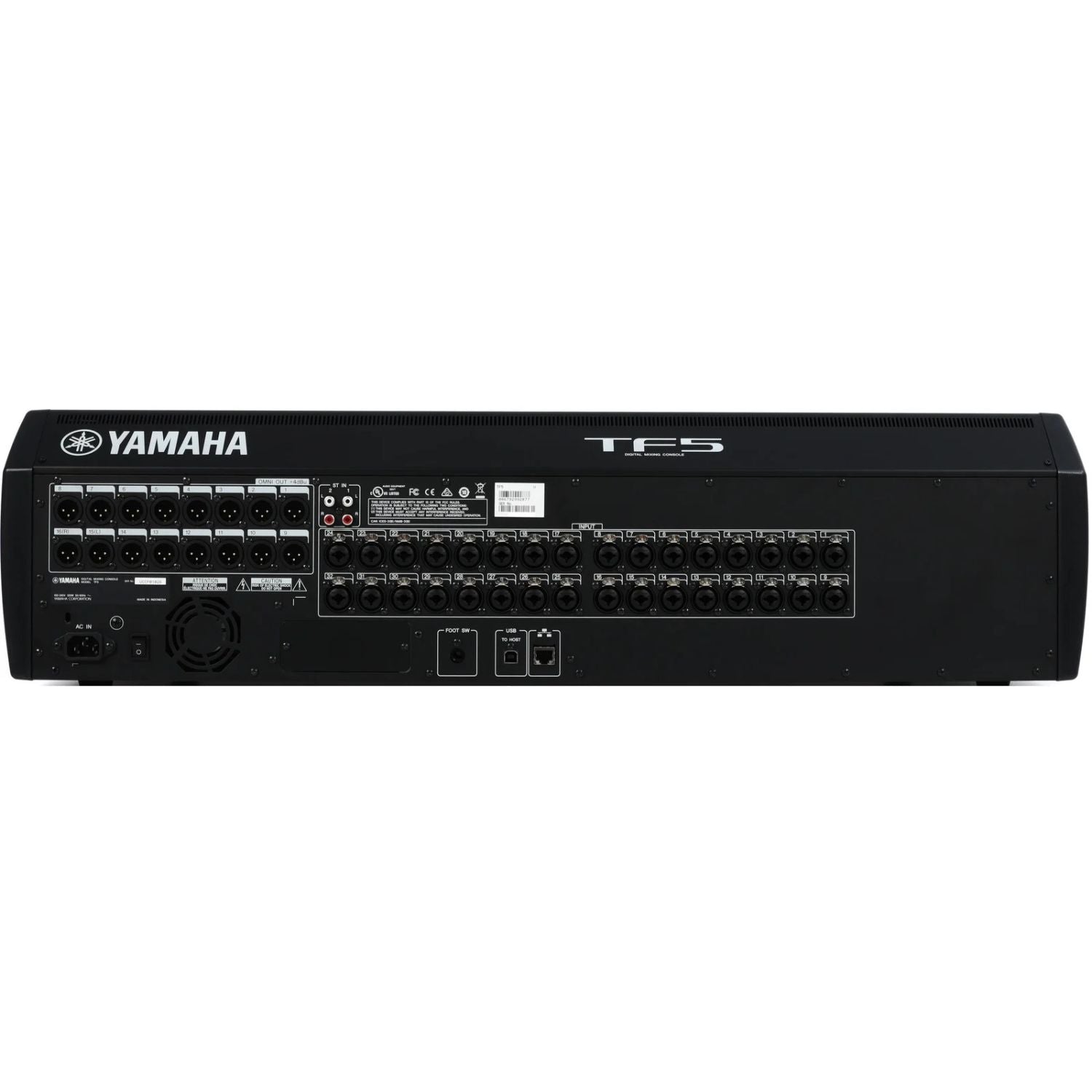

Connectivity

Analog Inputs

1 × 1/4" TS Footswitch Input
32 × Combo XLR-1/4" TRS Balanced Mic/Line Input
2 × Stereo RCA Unbalanced Input

Analog Outputs

16 × XLR Balanced Output
1 × 1/4" TRS Unbalanced Headphone Output

Digital I/O

1 × RJ45 (Network)

MIDI I/O

No

USB I/O

1 × USB-B (Host Connection)
2 × USB-A (Control, External Memory)

Expansion Ports

1 × I/O Card

Mobile App Compatible

Yes: Android & iOS
TF Editor, TF StageMix, MonitorMix

Recording

Max Multitrack Recording

34 Tracks

File Format Support

Playback: MP3, WAV
Record: WAV

Compatibility

OS Compatibility

Android / iOS

Power

Input Power

100 to 240 VAC, 50 / 60 Hz

Physical

Rack Mountable

No

Dimensions

34.1 × 8.9 × 23.6" / 866 × 225 × 599 mm

Weight

44.1 lb / 20 kg

Packaging Info

Package Weight

57.2 lb

Box Dimensions (L × W × H)

38 × 29 × 13"
