Key Specifications

Product / Device Type

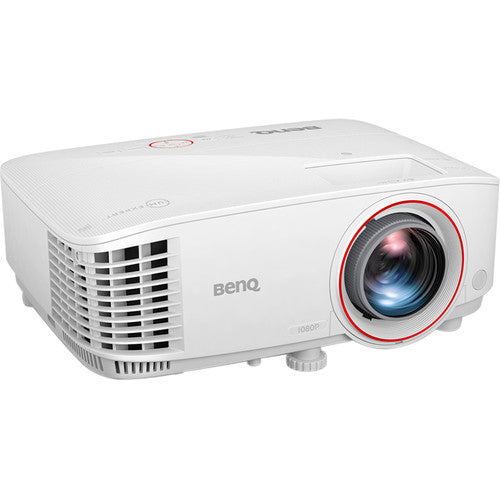

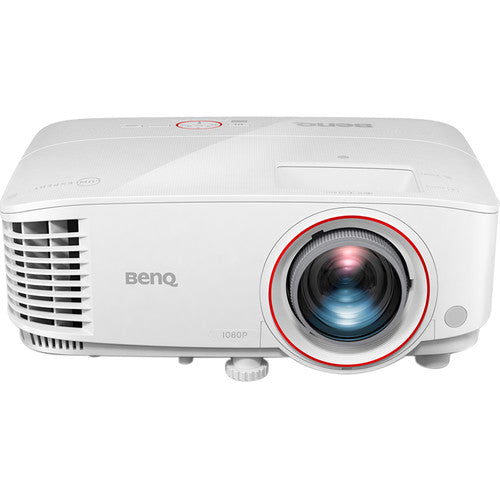

Short-Throw DLP Multimedia Projector

Projection System / Technology

DLP (Digital Light Processing)

Native Resolution

Full HD 1080p (1920 x 1080)

Native Aspect Ratio

16:9

Maximum Brightness

3,000 ANSI Lumens

Contrast Ratio

10,000:1

Color Depth

10-Bit (1.07 Billion Colors)

Projection Modes & Offset

Front Projection | Offset: 102.5%

Projection Lens & Optics

Lens Included

Yes (Short-Throw Lens)

Lens Aperture & Focal Length

f/2.6 to 2.78 | f = 10.2 mm to 12.24 mm

Throw Ratio & Distance

Short-Throw | Throw Ratio: 0.69 to 0.83:1

Optical Zoom & Lens Shift

1.2x Optical Zoom | No Lens Shift

Keystone Correction

Vertical ±40°

Light Source Specifications

Light Source Engine

Lamp

Expected Lamp Life

Full Brightness: 4,000 Hours
Low Brightness: 10,000 Hours

Audio, Connectivity & Control Specifications

Integrated Audio

Built-in 5 W Speaker (1x 5 W Speaker)

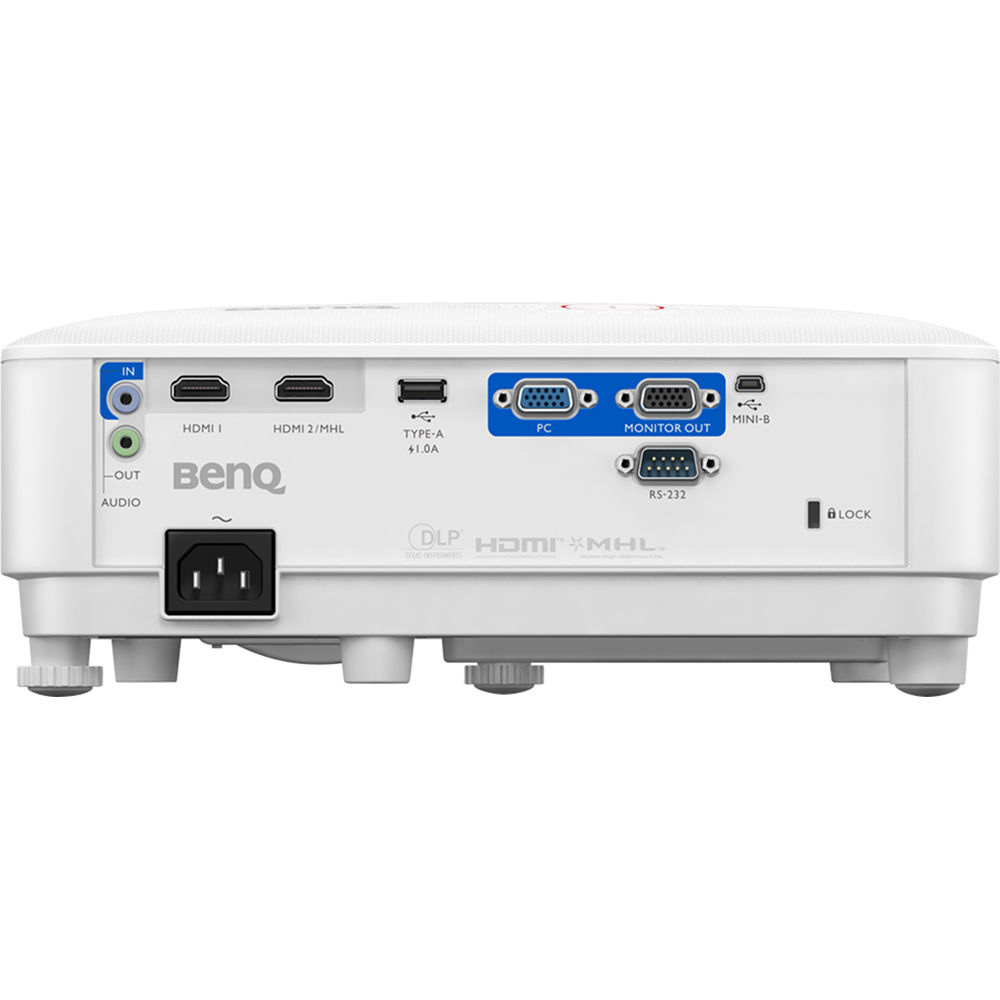

Audio / Video Connections

2x HDMI Inputs
1x VGA Input
1x VGA Output
1x 3.5mm Mini Audio Input
1x 3.5mm Mini Audio Output

Control & Service Interfaces

1x USB Type-A
1x Mini-USB (Service)
1x DE-9/DB-9 (RS-232 Control)
1x 3.5mm Wired Remote Input
1x 3.5mm Wired Remote Output

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz

Power Consumption

Full Brightness: 320 W
Standby Mode: 0.5 W

Acoustic Noise Level

Full Brightness: 33 dB | Low Brightness: 29 dB

Unit Dimensions (W×H×D)

296mm x 120mm x 224mm (11.7" x 4.7" x 8.8")

Net Weight

2.7 kg (6.0 lbs)

Packaging Info

Box: 410.2mm x 322.6mm x 167.6mm (16.15" x 12.7" x 6.6") | Gross Weight: 3.75 kg (8.265 lbs)
