Key Specifications

Speaker Type

Active Loudspeaker

Configuration

2-Way

Total Output Power

1400 W Peak

LF Driver

1 × 12" / 30.5 cm Woofer

HF Driver

1 × 1" / 25.4 mm Titanium Dome Compression Driver

Frequency Range/Response

47 Hz to 23 kHz (-10 dB)

Enclosure Type

Bass-Reflex

Amplifier Class

Class-D

Drivers

LF Driver

1 × 12" / 30.5 cm Woofer

HF Driver

1 × 1" / 25.4 mm Titanium Dome Compression Driver

Performance

Frequency Range/Response

47 Hz to 23 kHz (-10 dB)

Maximum SPL

128 dB SPL

Signal Processing

EQ & Filters

No

Alignment Delay

No

Digital Signal Processing

No

Connectivity

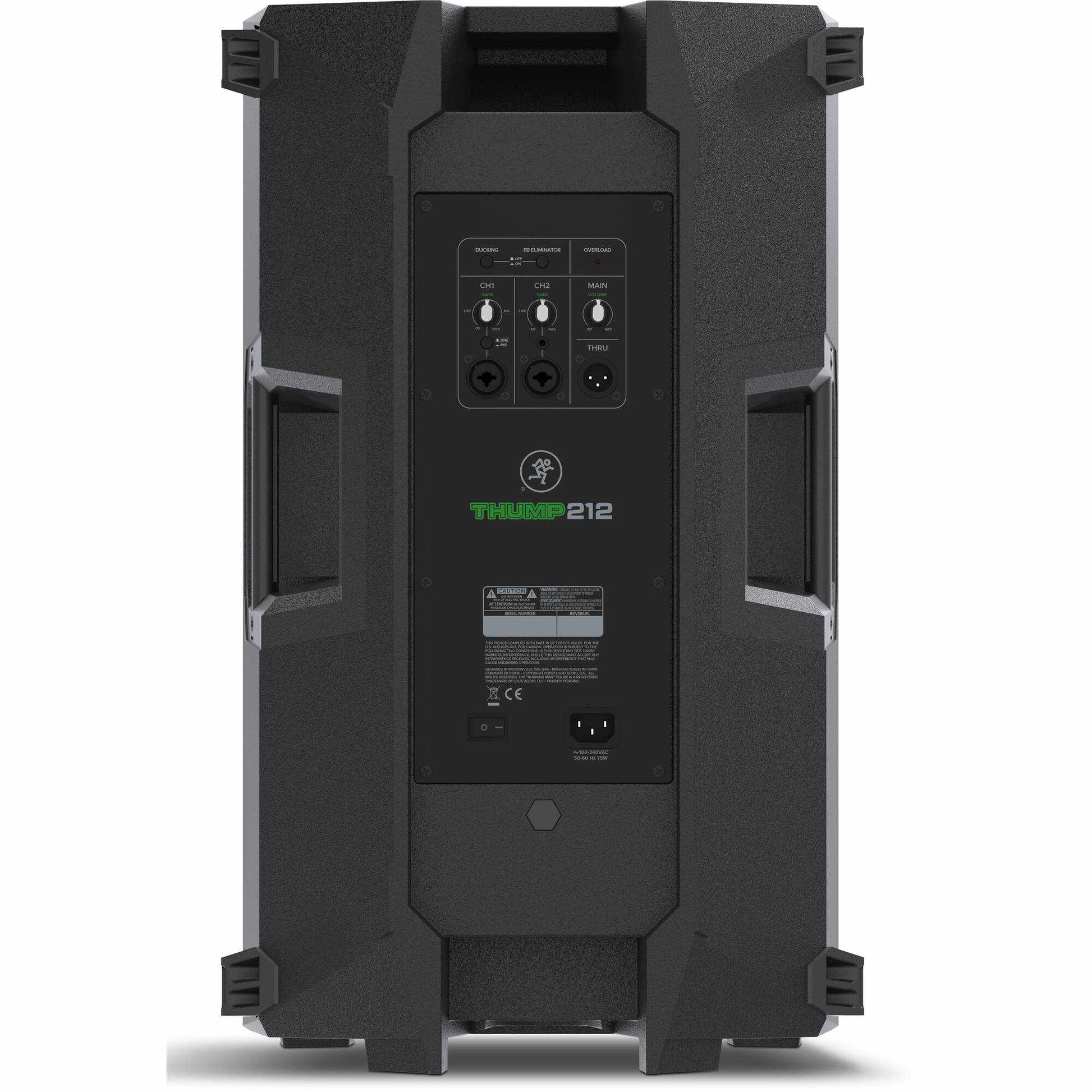

Audio I/O

2 × Combo XLR-1/4" TRS Line/Mic Input
1 × 1/8" / 3.5 mm TRS Line Input
1 × XLR 3-Pin Line Output

Network I/O

No

USB I/O

No

Wireless

No

Mobile App Compatible

No

Power

AC Input Power

100 to 240 VAC, 50 / 60 Hz

AC Power I/O

1 × IEC Input

Power Consumption

75 W

Physical

Color

Black

Mounting

1 × Pole Socket (Bottom) – Size Unspecified

Handles

1 × Each Side, 1 × Top

Environmental Resistance

No

Dimensions

24.2 × 14.1 × 14" / 614.7 × 358.1 × 355.6 mm

Weight

29.1 lb / 13.2 kg

Packaging Info

Package Weight

32.285 lb

Box Dimensions (L × W × H)

26.4 × 16 × 15.9"
