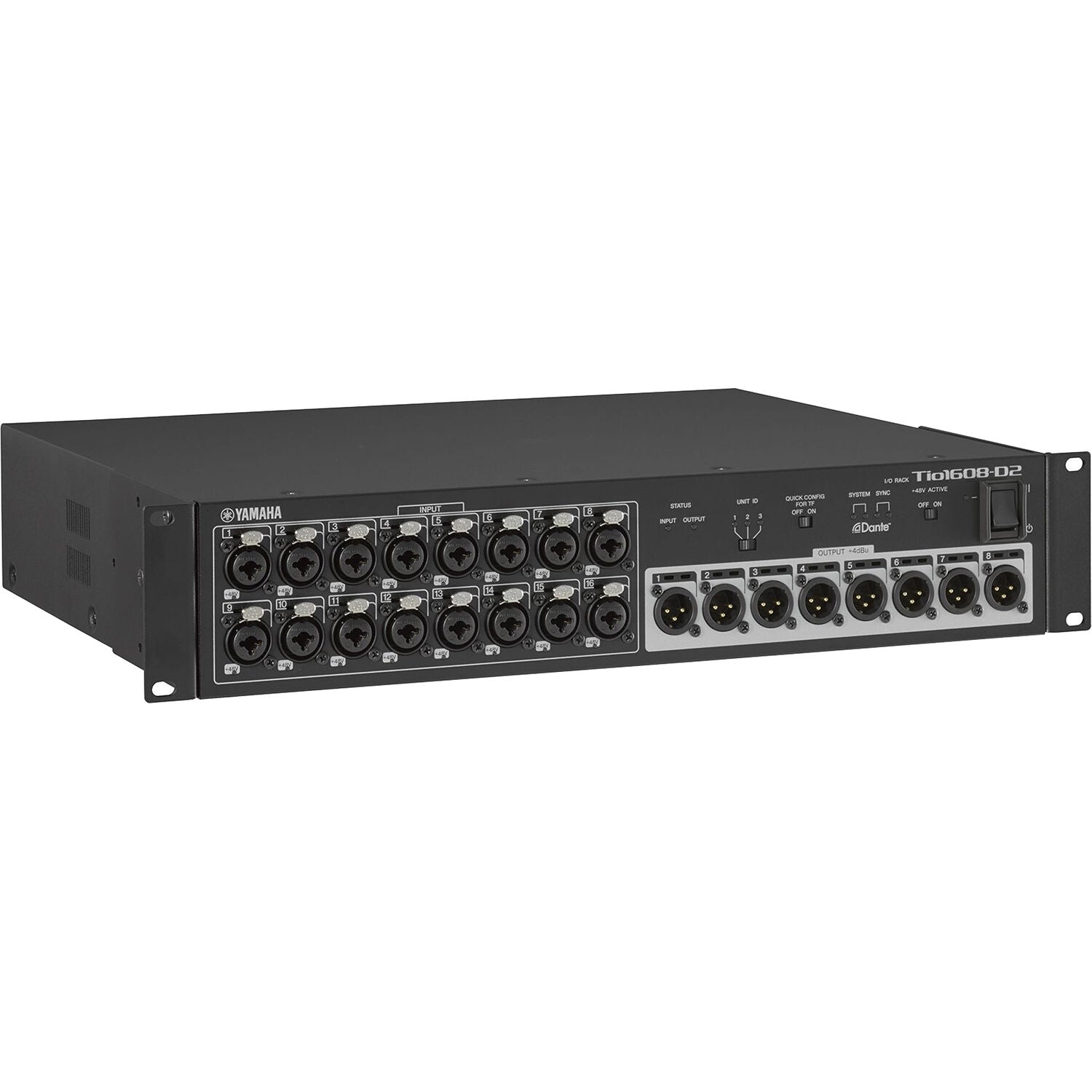

Key Specifications

Compatibility

Yamaha TF / DM3

Sample Rate

44.1, 48, 88.2, 96 kHz

Latency

<1.3 ms Input → Output, DM3, Dante Latency 0.25 ms, Fs=96 kHz
<2.6 ms Input → Output, DM3, Dante Latency 0.25 ms, Fs=48 kHz

THD

<0.2% +4 dBu, 20 Hz–20 kHz, 600 Ω, Gain +66 dB
<0.05% +4 dBu, 20 Hz–20 kHz, 600 Ω, Gain -6 dB, Fs 88.2/96 kHz
<0.1% +4 dBu, 20 Hz–20 kHz, 600 Ω, Gain +66 dB
<0.05% +4 dBu, 20 Hz–20 kHz, 600 Ω, Gain -6 dB, Fs 44.1/48 kHz
(Measured with -18 dB/oct filter @ 80 kHz)

Frequency Response

+0.5 / -1.5 dB, 20 Hz–20 kHz, Input → Output

Dynamic Range

108 dB Input → Output, Gain -6 dB / 110 dB DA, Fs 96 kHz
108 dB Input → Output, Gain -6 dB / 112 dB DA, Fs 48 kHz

EIN

-128 dBu, Gain +66 dB (A-weighted)

Noise

Residual Output Noise:
-86 dBu, Fs 96 kHz
-88 dBu, Fs 48 kHz, ST Main Off

Crosstalk

-100 dB, Adjacent I/O Channels, Gain -6 dB

Gain

-6 to +66 dB

Impedance

Load: 7.5 kΩ
Mic Input: 50–600 Ω
Line Input: 600 Ω
Source: 75 Ω
Line Output: 600 Ω

Input Level

Sensitivity

Mic: -82 dBu (61.6 μV)
Line: +10 dBu (245 mV)

Nominal

Mic: -62 dBu (0.616 mV)
Line: +10 dBu (2.45 V)

Max Before Clipping

Mic: -42 dBu (6.16 mV)
Line: +30 dBu (24.5 V)

Output Level

Nominal: +4 dBu (1.23 V)
Max Before Clipping: +24 dBu (12.3 V)

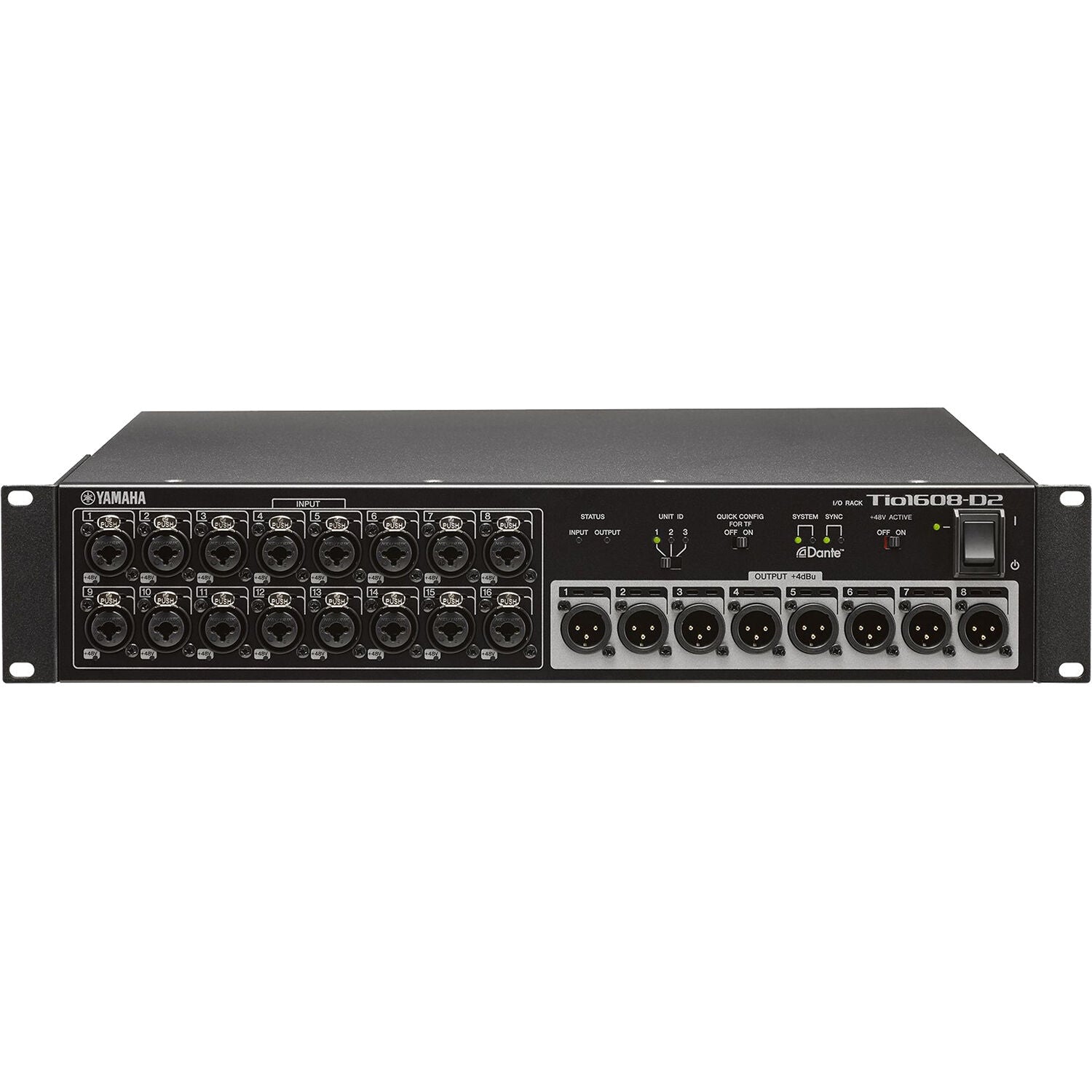

Inputs / Outputs

Audio I/O

16 × Combo XLR-1/4" Mic/Line Input
8 × XLR Line Output

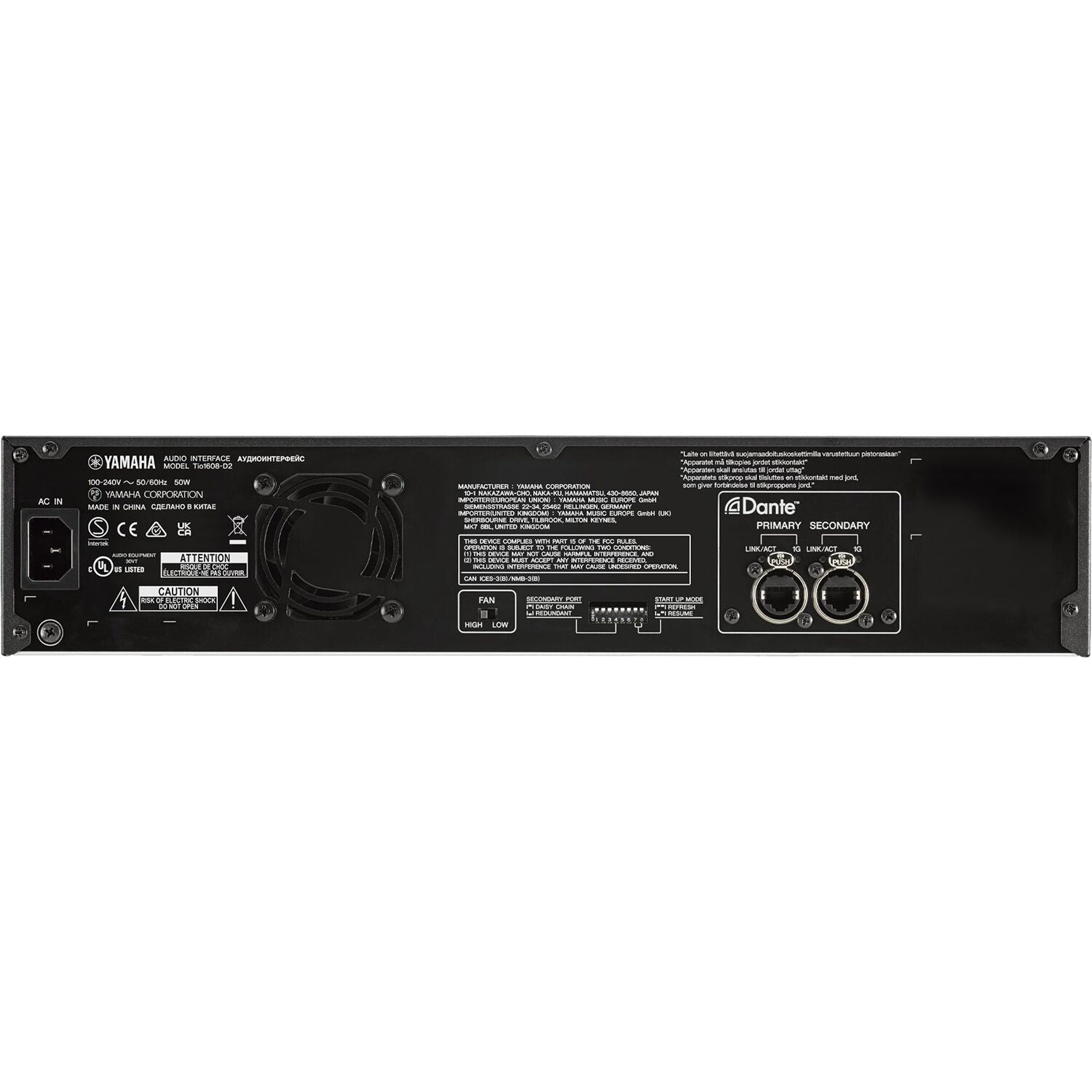

Digital I/O

Dante (2 × etherCON Cat5e, Primary + Secondary)
Data: 24- or 32-Bit
Level: 1000Base-T
Audio Flow: 16 ch → / 8 ch ←

Power

Power Source

AC Input (Included)

AC Input Power

100–240 VAC, 50/60 Hz

Power Consumption

50 W

Environmental

Operating Temperature

32–104°F (0–40°C)

Storage Temperature

-4–140°F (-20–60°C)

Physical

Mounting

Side: 4 × Rackmount

Color

Black

Material

Metal

Cable Length

Not Specified

Dimensions

18.9 × 14.4 × 3.5" (48 × 36.6 × 8.9 cm)

Weight

12.6 lb (5.7 kg)

Packaging Info

Package Weight

16.52 lb

Box Dimensions (L × W × H)

22 × 19.5 × 7.4"
