Key Specifications

Active or Passive

Active

System Type

Full-Range

Configuration

2-way

System Continuous Power

300 W

System Peak Power

600 W

Max SPL @ 1m

128 dB

Freq Range (-10 dB)

50 Hz - 20 KHz

Freq Response (+/-3 dB)

55 Hz - 20 KHz

Bluetooth

No

IP Certification

IP54

Driver Brand

Wharfedale Pro

LF Driver Size

12"

LF Voice Coil Size

2.5"

LF Rated Impedance

4 Ω

LF Power (RE:AES2-2012)

250 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

Hybrid Symmetry Horn 100° x 80°

Preset Library

No

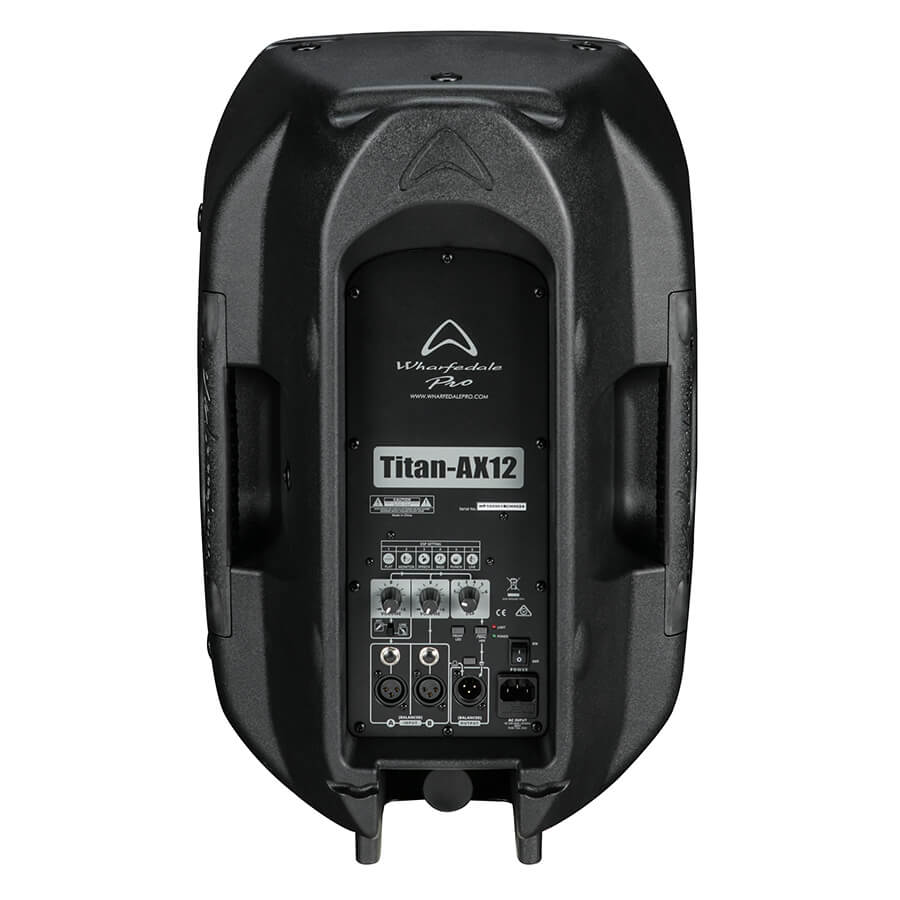

Input Connector

2 × XLR & 2 × 1/4″ Jack (Chan 1 Line/MIC)

Waveguide Type

Hybrid Symmetry Horn

Enclosure Material

Polypropylene

Grille Material and Finish

Steel

Finish

Black or White

Handles

2

Deployment

Flying, Pole, Wall Mount, Ground

Pole Mount

35 mm With Lock Screw

Brackets Included

No

Rigging

Yes

M8

10

Sensitivity 2.83v / 1m

n/a dB

System Rated Impedance

n/a

Recommended HPF = BW 18 dB/OCT.

50 Hz

Transformer (T)

No

Transformer Taps (70 V)

No

Transformer Taps (100 V)

No

Input Connectors (T)

No

Amplifier design

Class D

DSP Controls

Flat / Monitor / Speech / Bass / Punch / Live

Preset List

Flat / Monitor / Speech / Bass / Punch / Live

EQ Type

Note – EQ changed by DSP knob

Link Connector

Pin XLR

Line Output

Switchable LOOP/MIX Balanced socket XLR

Main Power

AC100-120 V~ / 220-240 V~, 50/60 Hz

Power Supply

SMPS

Included Accessory

User Manual, AC Cable, Dust Cover

Unpacked - Height (mm)

582.7

Unpacked - Width Front (mm)

384.6

Unpacked - Width Rear (mm)

384.6

Unpacked - Depth (mm)

318.6

Packed - Height (mm)

663

Packed - Width Front (mm)

435

Packed - Width Rear (mm)

435

Packed - Depth (mm)

408

Weight - Nett (kg)

12.4

Weight - Gross (kg)

15.5
