Key Specifications

Active or Passive

Passive

System Type

Full-Range

Configuration

2-way

System Continuous Power

250 W

System Programme Power

500 W

System Peak Power

1000 W

Max SPL @ 1m

128 dB

Freq Range (-10 dB)

50 Hz - 20 kHz

Freq Response (+/-3 dB)

55 Hz - 20 kHz

Bi-amp Mode Switch

No

Bluetooth

No

IP Certification

IP54

Driver Brand

Wharfedale Pro

LF Driver Size

12"

LF Voice Coil Size

2.5"

LF Rated Impedance

8 Ω

LF Power (RE:AES2-2012)

250 W

HF Driver Type

Compression Driver

HF Voice Coil Size

1.75"

HF Diaphragm Material

Titanium

HF Exit Size

1"

HF Power (RE:AES2-2012)

40 W

HF Rated Impedance

8 Ω

HF Nominal Coverage (H x V)

100° x 80°

Preset Library

Yes

Input Connector

2 x 4 Pole Speaker Connector

Waveguide Type

Hybrid Symmetry Horn

Enclosure Material

Polypropylene

Grille Material and Finish

Steel Black or White

Finish

Black or White Polypropylene

Handles

2

Deployment

Flying, Pole, Wall Mount, Ground

Pole Mount

35 mm

Brackets Included

No

Rigging

Yes

M8

10

Sensitivity 2.83v / 1m

98 dB

System Rated Impedance

8 Ω

Crossover Frequency

2.6 kHz

Recommended HPF = BW 18 dB/OCT.

50 Hz

Transformer (T)

No

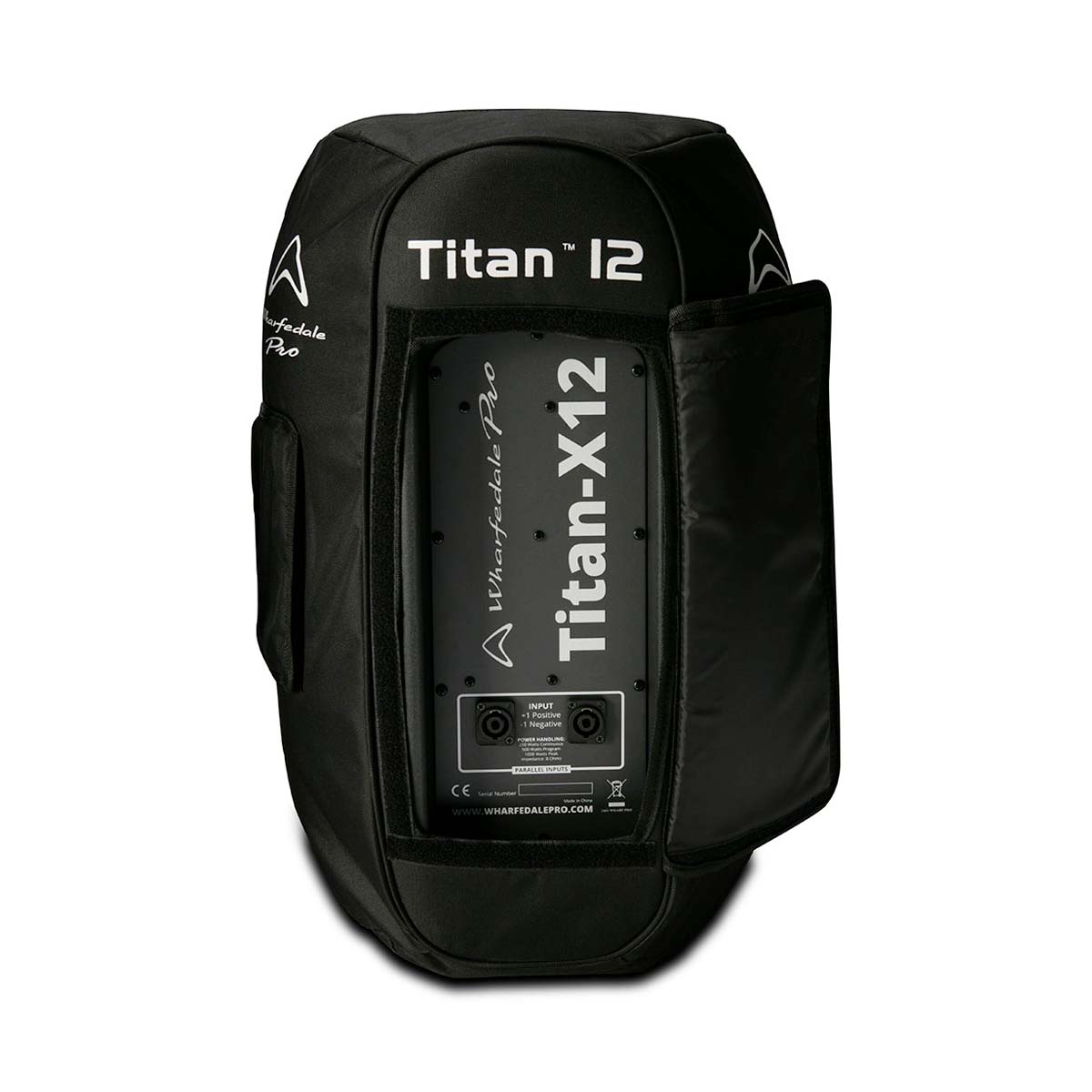

Included Accessory

User Manual, Dust Cover

Unpacked - Height (mm)

583

Unpacked - Width Front (mm)

385

Unpacked - Width Rear (mm)

385

Unpacked - Depth (mm)

319

Packed - Height (mm)

663

Packed - Width Front (mm)

435

Packed - Width Rear (mm)

435

Packed - Depth (mm)

408

Weight - Nett (kg)

12

Weight - Gross (kg)

15.1
