Key Specifications

Product / Device Type

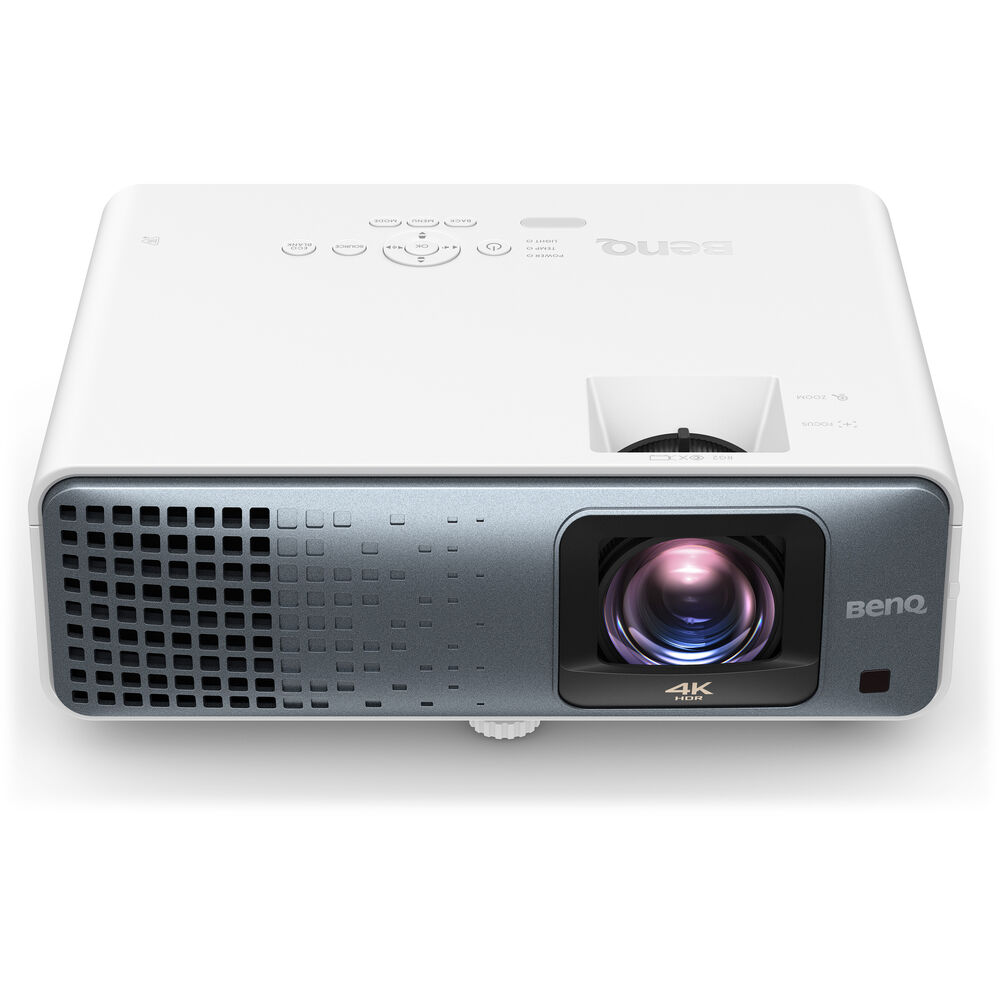

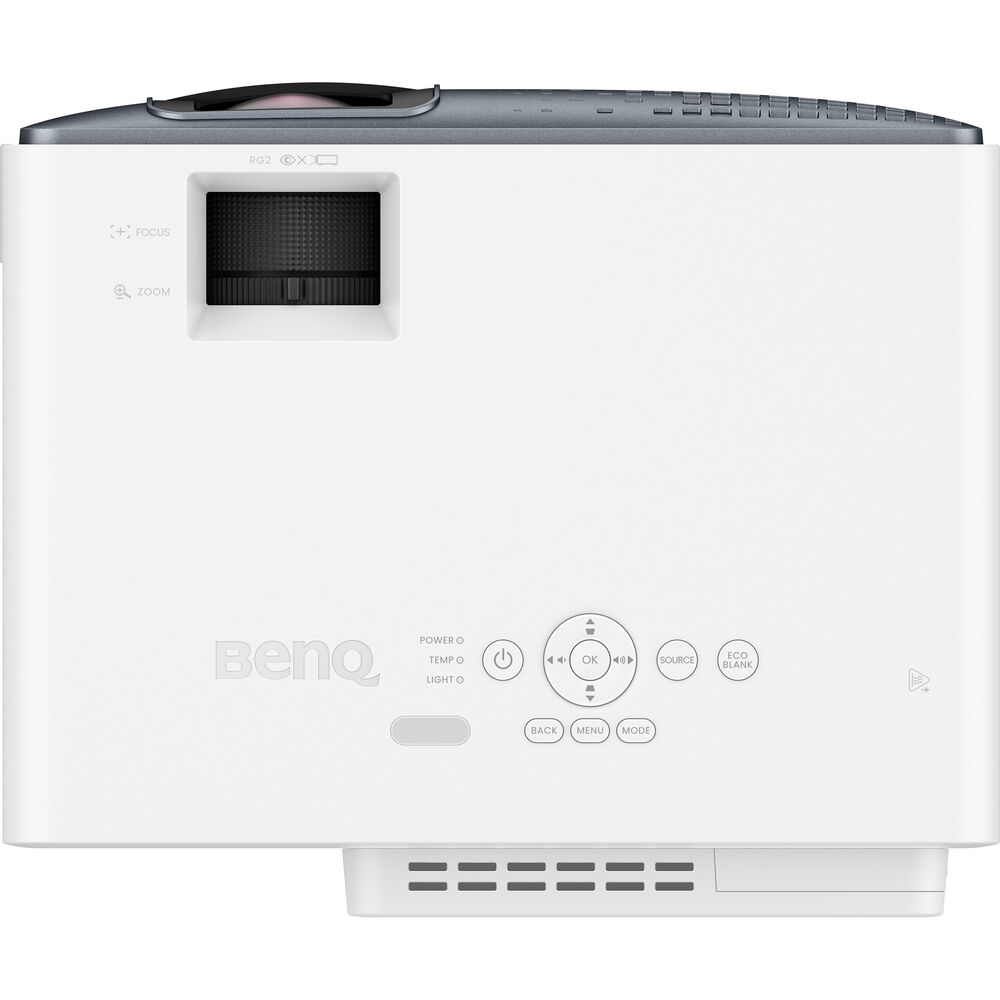

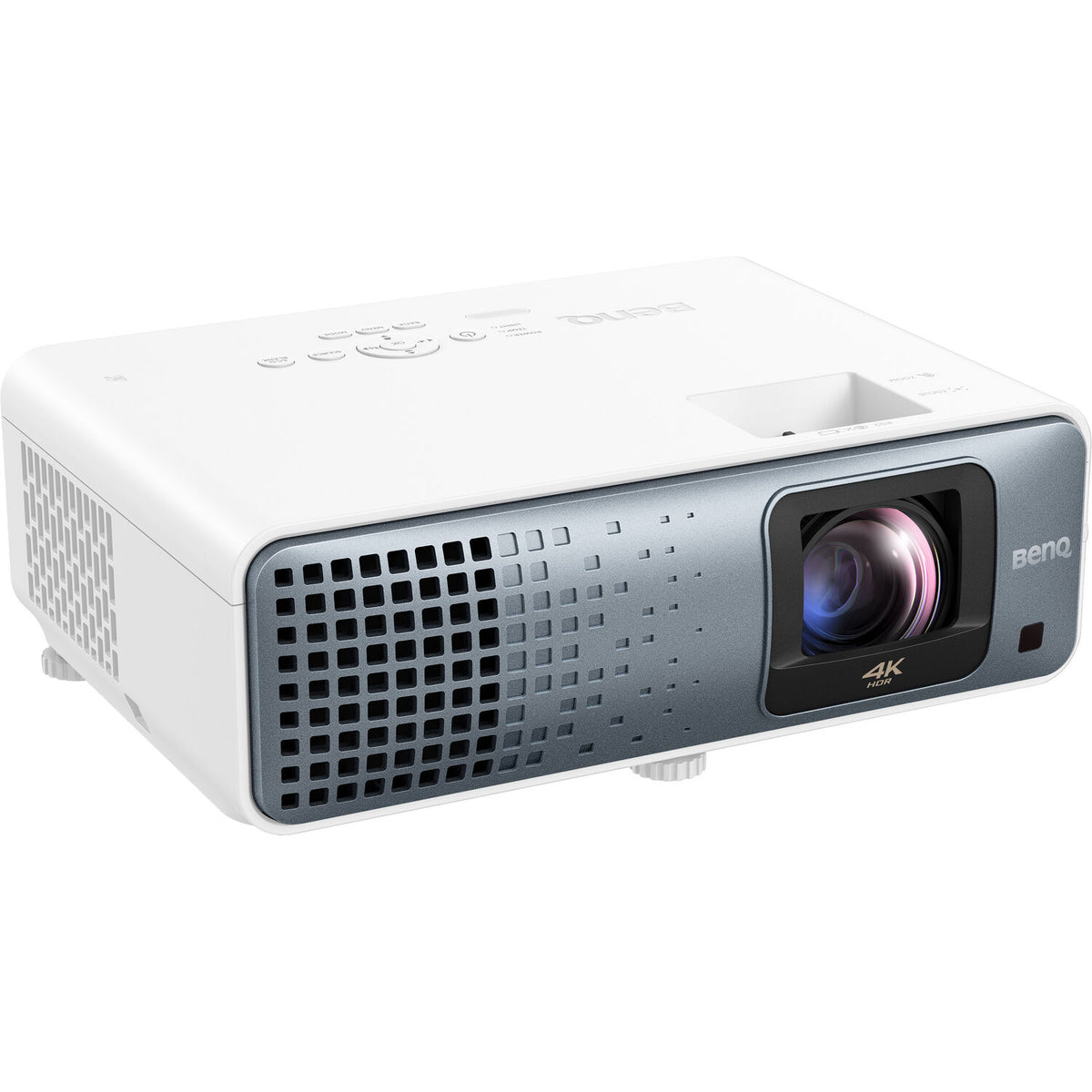

4K UHD Smart Short-Throw Laser Projector

Projection System / Technology

1-Chip DMD DLP

On-Screen Resolution

4K UHD Pixel-Shift (3840 x 2160)

Native Aspect Ratio

16:9

Maximum Brightness

3,200 ANSI Lumens

Color Depth

10-Bit (1.07 Billion Colors)

HDR Support

Yes (HDR10 / Hybrid Log-Gamma)

3D Format Support

Yes (Frame Sequential, Frame Packing, Side-by-Side, Top-Bottom, DLP Link 3D Glasses Supported)

Projection Modes & Offset

Front, Rear, Ceiling Mountable | Vertical Offset: 102.5%

Projection Lens & Optics

Lens Features & Focus

Short-Throw Lens with Manual Focus

Lens Aperture & Focal Length

f/2.53 to 2.73 | f = 10.2 mm to 12.24 mm

Projection Image Size

30" to 300" (1.0 m to 8.0 m)

Throw Distance & Ratio

Short-Throw: 1.6 ft to 18.0 ft (0.5 m to 5.5 m) | Throw Ratio: 0.69 to 0.83:1 (100" @ 5.5 ft / 2.0 m)

Optical Zoom & Lens Shift

1.2x Manual Optical Zoom | No Lens Shift

Keystone Correction

Horizontal: ±30° | Vertical: ±30°

Light Source Specifications

Light Source Engine

Laser Phosphor

Expected Light Source Life

20,000 Hours (Full Brightness)

Smart System, Hardware & Wireless Connectivity

Operating System & Internal Storage

Android TV OS | 16 GB Internal Storage

Virtual Assistant / Casting

Google Assistant Built-in, Apple AirPlay

Mobile App & Wireless Compatibility

Wi-Fi 6 (802.11ax) / Bluetooth (via Included Adapter)
Mobile App Support for Android & iOS

Audio, Physical Interfaces & Security

Integrated Audio

Built-in 5 W Speaker (1x 5 W Speaker)

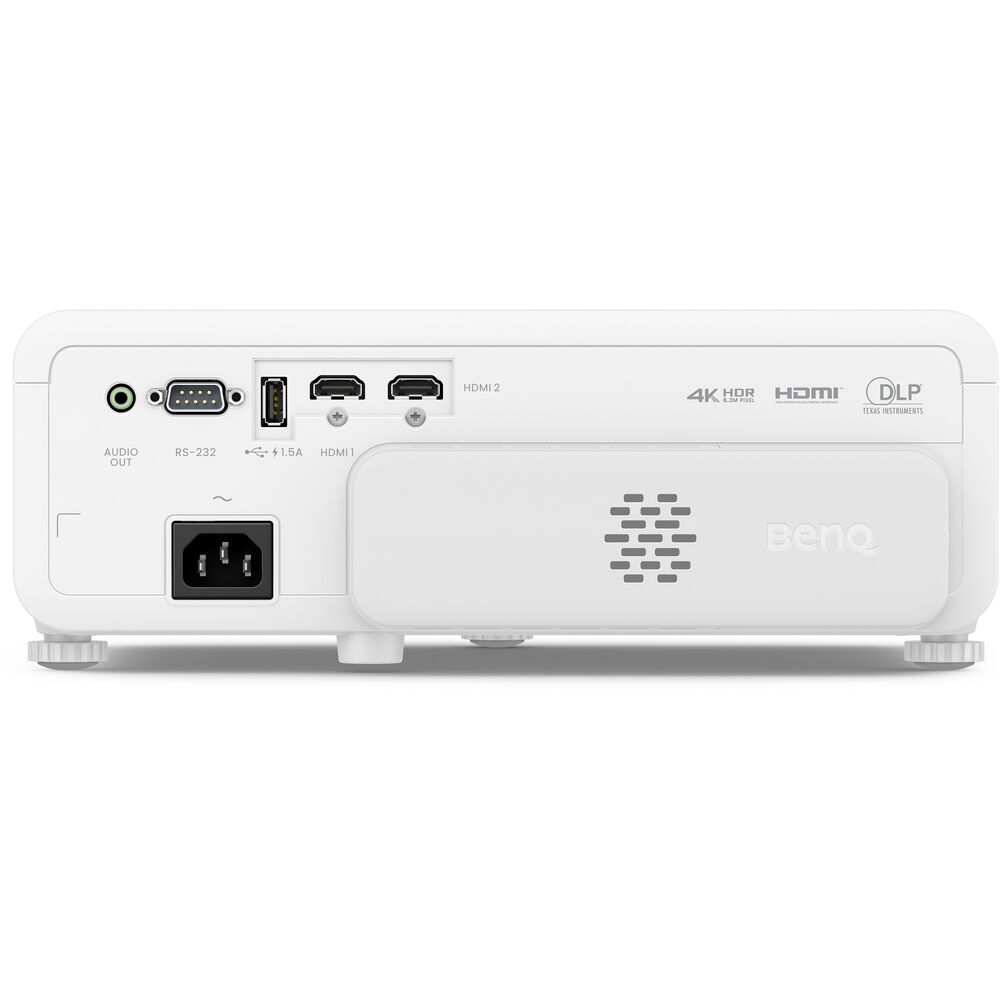

Audio / Video Connections

2x HDMI 2.0b Inputs (HDCP 2.2 Compliant)
1x 3.5mm Mini Audio Output

Control & Data Interfaces

1x USB Type-A (Service)
1x DE-9/DB-9 (RS-232 Control Input)

Security Features

Cable Lock Slot

Power, Environmental & Physical Specifications

Input Power Supply

AC 100V – 240V, 50/60 Hz

Power Consumption

Full Brightness: <275 W
Standby Mode: <0.5 W

Acoustic Noise Level

Medium Brightness: 31 dB

Operating Temperature Range

0°C to 40°C (32°F to 104°F)

Unit Dimensions (W×H×D)

304.2mm x 112.4mm x 253.5mm (12.0" x 4.4" x 10.0")

Net Weight

3.1 kg (6.8 lbs)

Packaging Info

Box: 449.6mm x 350.5mm x 180.3mm (17.7" x 13.8" x 7.1") | Gross Weight: 4.56 kg (10.05 lbs)
