Key Specifications

Microphone Type

Large Diaphragm

Polar Pattern

Cardioid, Figure-8, Hypercardioid, Omnidirectional, Subcardioid / Wide Cardioid

Element Type

Condenser

Sound Field

Mono

Orientation

Side Address

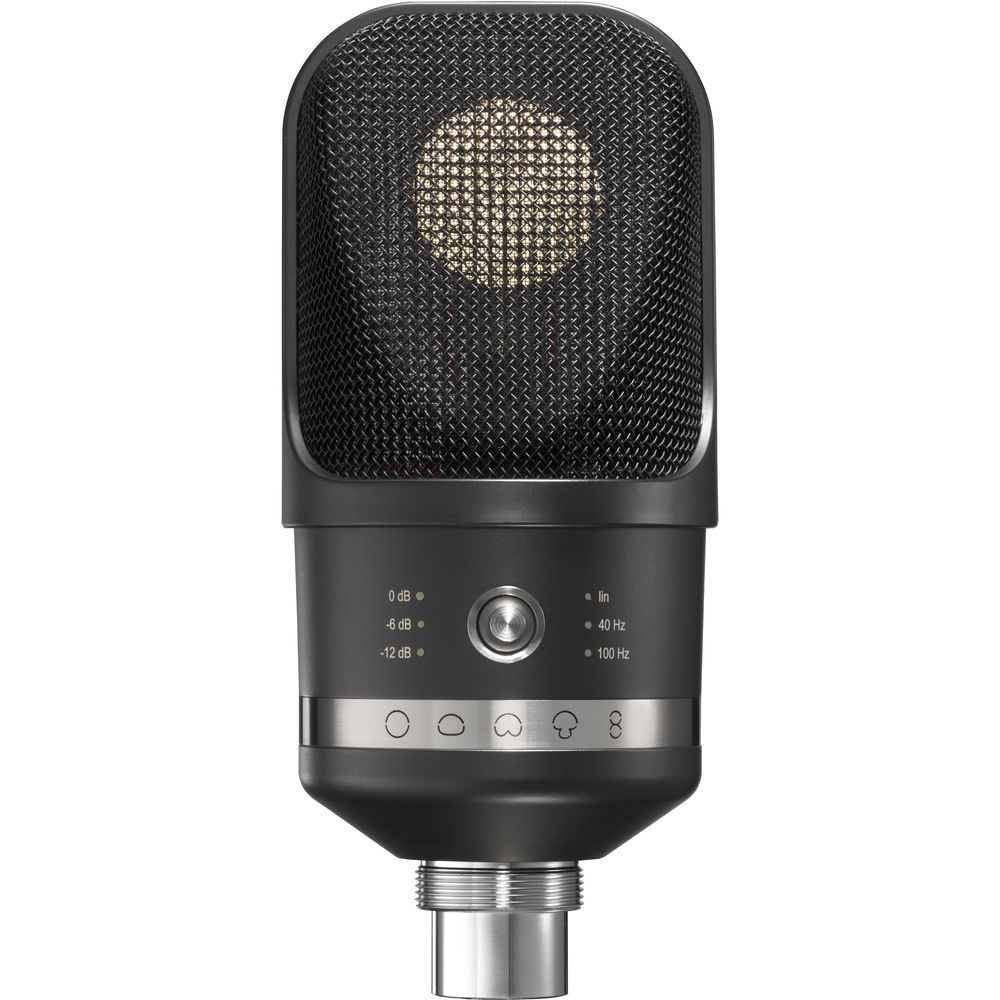

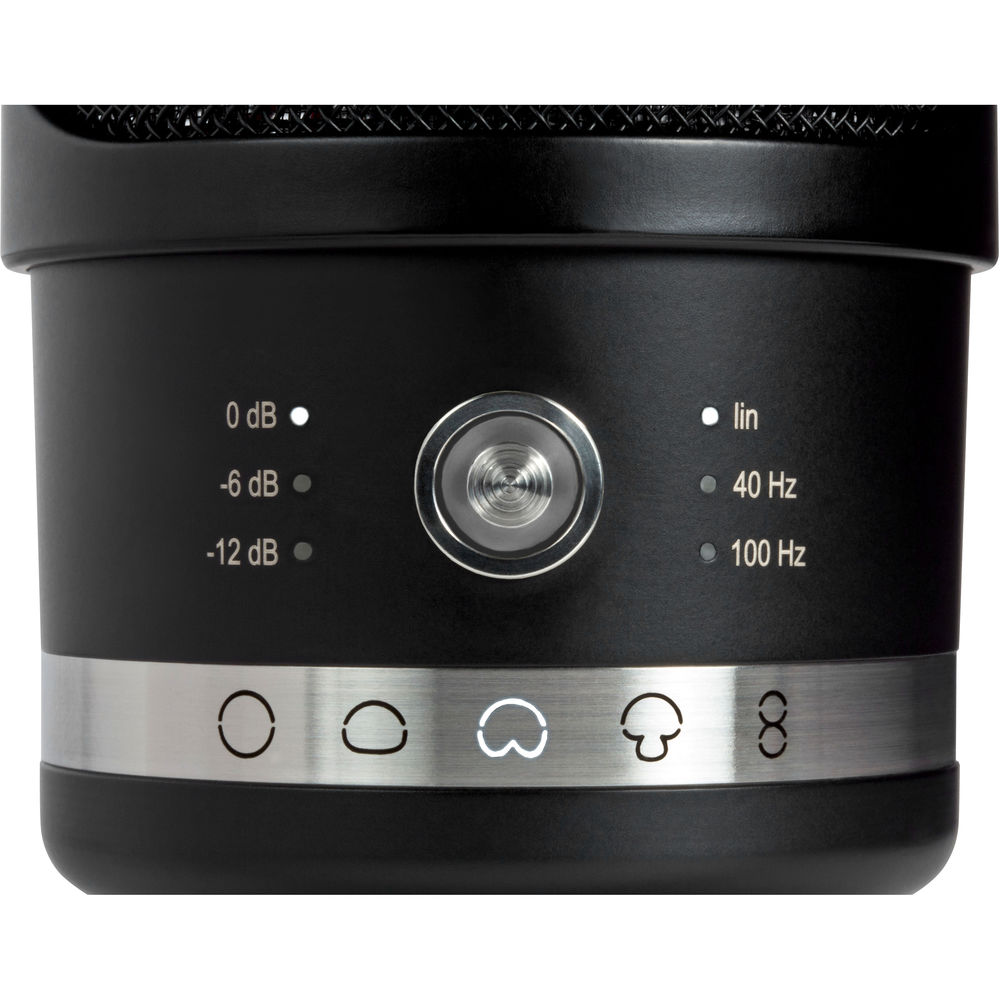

Controls

Low Cut / HPF, Pad, Polar Pattern

Pad

-6 dB / -12 dB

Filter & EQ

Low-Cut Filter: 40 Hz / 100 Hz

Circuitry

Solid-State

Performance

Frequency Response

20 Hz – 20 kHz

Maximum SPL

141 dB (0.5% THD)
153 dB (0.5% THD, with Pad)

Sensitivity

11 mV/Pa (at 1 kHz into 1 Kilohm)

Dynamic Range

131 dB

Equivalent Noise Level

10 dB (A-Weighted)
22 dB (CCIR)

Connectivity

Analog Output

1 × XLR 3-Pin Male

Power

Power Source

48 V Phantom Power

Operating Voltage

48 V (Phantom Power)

Physical

Color

Black

Mounting Thread Size

5/8"-27 Female

Dimensions

Ø 2.5 × L 5.7" / Ø 6.4 × L 14.5 cm

Weight

15.7 oz / 445 g
