ALTO TMD16
ALTO TMD16
|
Key Specifications |
|
|
Mixer Architecture |
|
|
Max I/O Capacity |
16x Input / 12x Output |
|
Analog Input Channels |
16 (8 Mono / 4 Stereo) |
|
Mic Preamps |
10 |
|
Analog Output Channels |
12 |
|
Mix Routing |
1x Stereo Bus, 4x Mono Aux Send, 4x Mono Subgroup |
|
Groups |
4x Subgroup |
|
Control & Visuals |
|
|
Display |
7" Color Display (Not Touch Screen) |
|
Channel Faders |
6x 100 mm (3.9") Touch Sensitive |
|
Master Faders |
1x 100 mm (3.9") |
|
Meters |
7x 18-Segment LED |
|
Signal Processing |
|
|
Gain/Trim Range |
50 dB (Line/Mic) |
|
Dynamic Processing |
Compressor, Limiter |
|
Input EQ |
3-Band Parametric |
|
Output EQ |
7-Band Graphic |
|
EQ Parameters |
Shelf/Peak: ±12 dB (20 Hz to 20 kHz) |
|
Filters |
High-Pass, Low-Pass (Input Channels) |
|
Built-In Effects |
16x Effects Engine |
|
Digital Audio & Connectivity |
|
|
Sample Rate / Bit Depth |
48 kHz / 24-Bit |
|

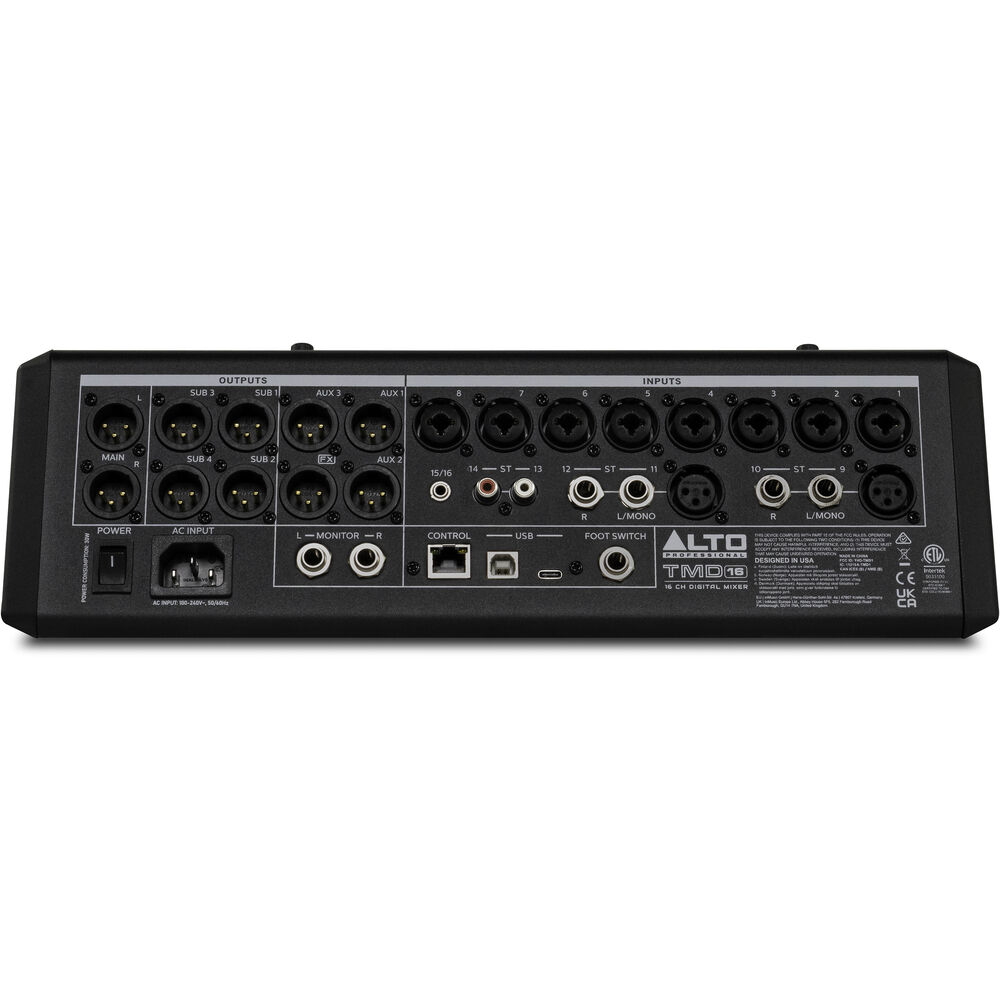

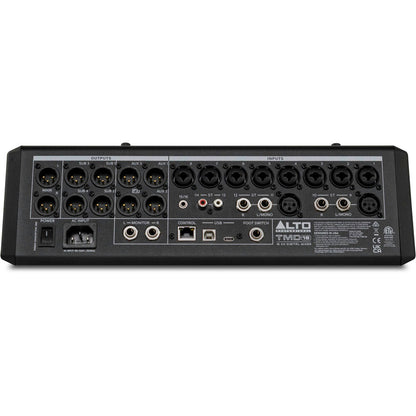

Analog Inputs |
8x Combo XLR-1/4", 2x XLR, 4x 1/4", 2x RCA, 1x 1/8" (3.5mm) |
|
Analog Outputs |
10x XLR, 2x 1/4", 1x 1/4" Headphone |
|
USB I/O |
1x USB-B, 1x USB-C (2x Input / 2x Output Capacity) |
|
Wireless |
Built-In Bluetooth |
|
Digital I/O |
1x RJ45 |
|
Physical & Compatibility |
|
|
OS Compatibility |
Windows, macOS, Android (Phone/Tablet), iOS (iPhone/iPad) |
|
Dimensions |
42.9 x 38.1 x 10.9 cm (16.9 x 15 x 4.3") |
|
Weight |
5.4 kg (12 lb) |
|
Rack Mountable |
No |
