Key Specifications

Carrier Frequency

UHF 798~827 MHz

Channels

16 Selectable Multi-Channel

Oscillation Mode

PLL UHF Synthesized

Dynamic Range / S/R Ratio

>100 dB / >90 dB

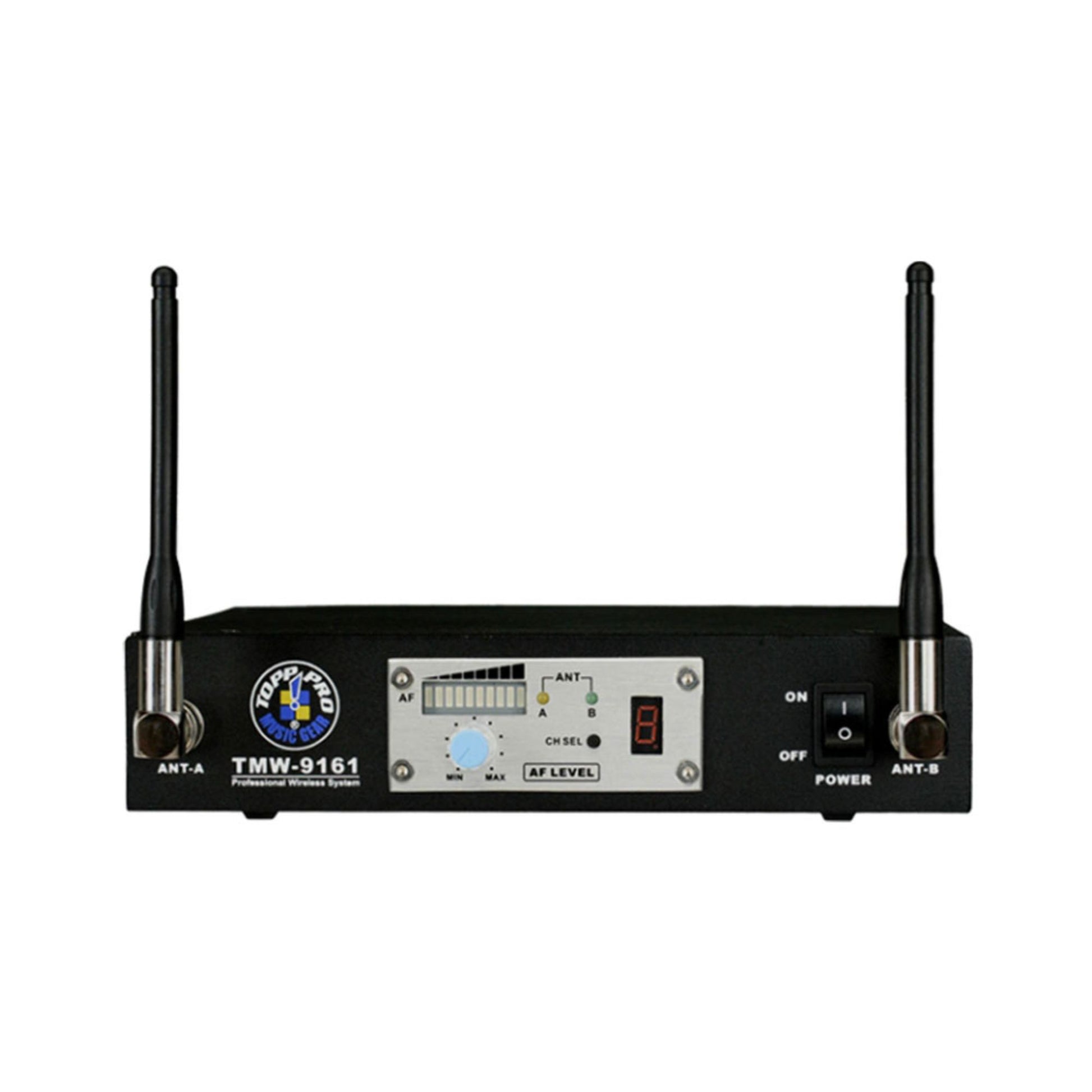

Receiver (Rx) - TMW 9161M-RX

Squelch System

Tone Key (32.768 KHz) & External Control

Audio Outputs

1x Balanced XLR / 1x Unbalanced 1/4"

Sensitivity

-100 dBm / 30 dB

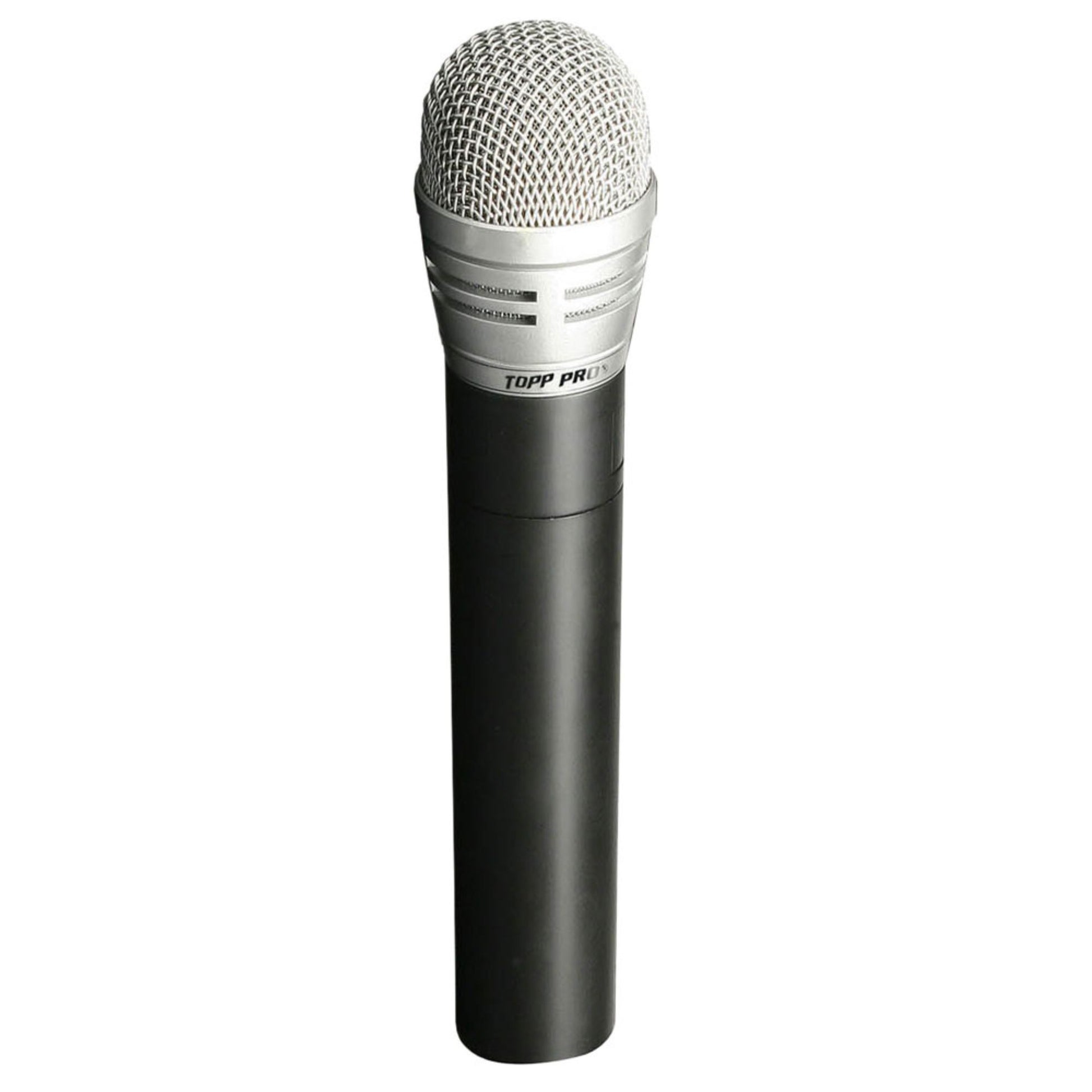

Handheld Transmitter (Tx) - TMW 9161M-TX

Microphone Element

Dynamic

RF Output Power

10 mW

Battery Life

Approx. 6 Hours (2x AA Batteries)

Physical Specs

Dimensions (Boxed)

37.6 x 32.2 x 7.5 cm

Net Weight

0.33 kg
