Key Specifications

Power (AC Adapter)

AC 100 V to 240 V, 50 Hz / 60 Hz

Rated Current

0.9 A

Rated Output

DC 12 V, 3 A

Power Consumption (Standby)

0.5 W

Main Unit Power Consumption

DC 12 V, 2 A

Main Unit Weight

3.2 kg

Dimensions (W × H × D)

436.5 × 74.3 × 261.2 mm

Operating Temperature

+5 °C to +35 °C

Operating Humidity

5% to 85% (no condensation)

Sampling Rate

44.1 kHz

A/D Converter

24-bit

D/A Converter

32-bit

Frequency Response

20 Hz – 20 kHz

Signal-to-Noise Ratio

112 dB (rated output)

Total Harmonic Distortion

0.002%

Input Max Level

+16 dBu

Input Impedance

33 kΩ

Output Level (OUT1-2 / Master / Assignable)

+16 dBu / 10 kΩ

Output Impedance

680 Ω

Headphone Output

100 mW + 100 mW / 32 Ω

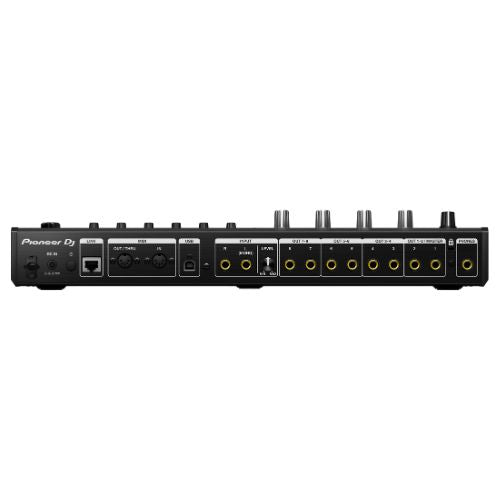

INPUT Terminals

2x 1/4" TS jack

OUTPUT Terminals (OUT1-2 / Master / Assignable)

2x 1/4" TS jack

OUTPUT Terminals (OUT3-8 / Assignable)

6x 1/4" TS jack

Headphone Terminal

1x 1/4" stereo phone jack

USB-A

1x (5 V / 500 mA or less)

USB-B

1x

LAN (LINK)

1x 100Base-TX

MIDI IN

1x 5-pin DIN

MIDI OUT/THRU

1x 5-pin DIN
