Key Specifications

Product Model

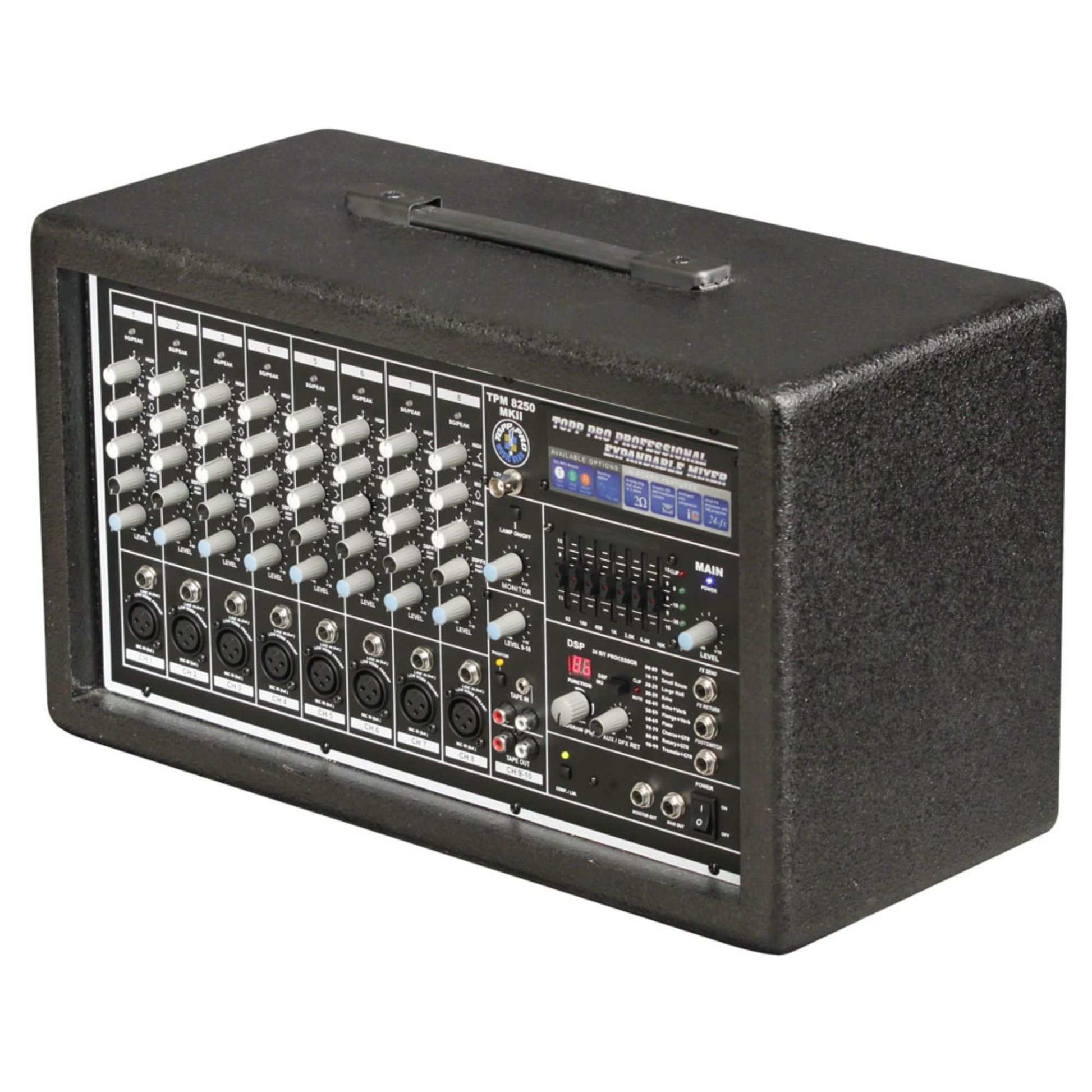

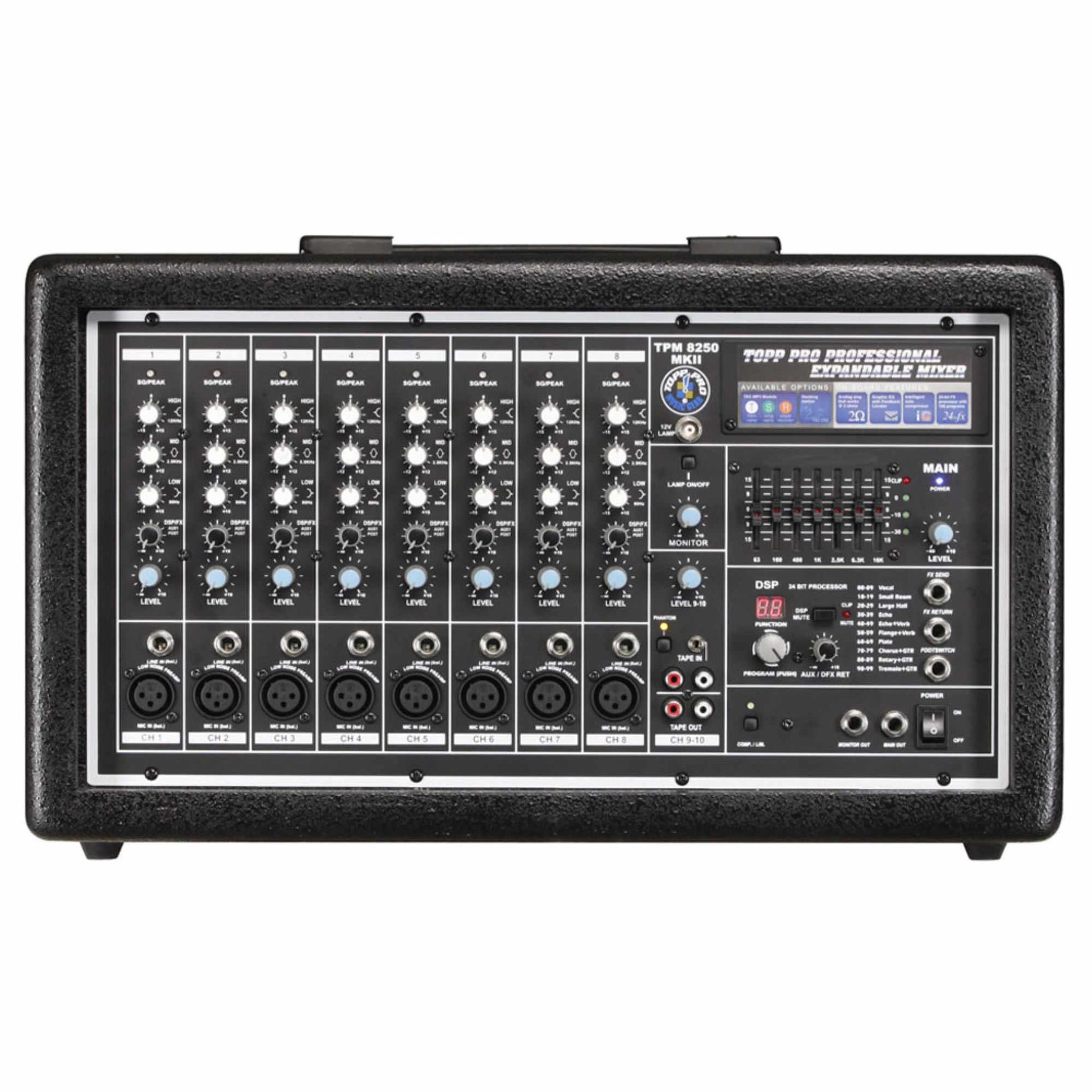

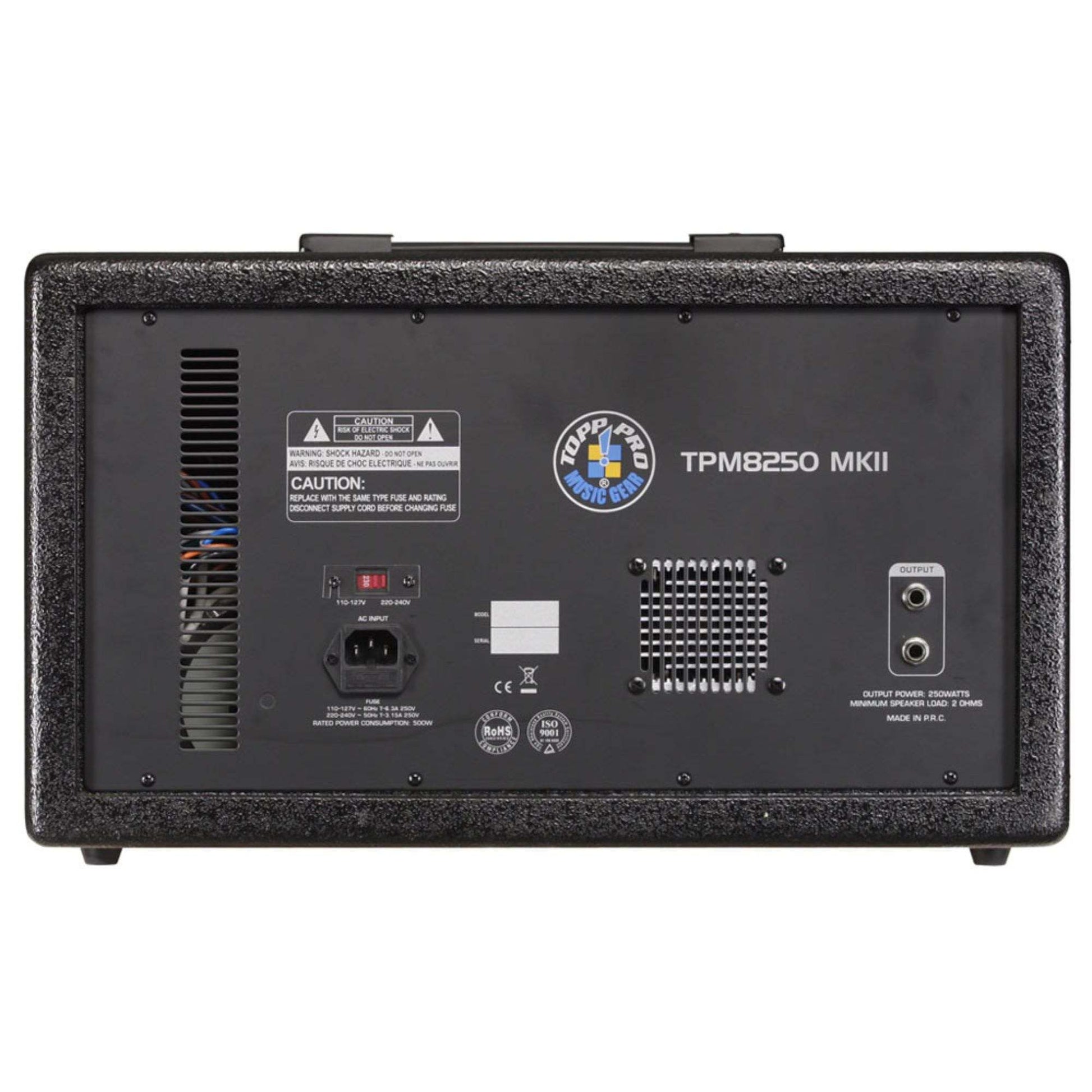

TPM8250 MKII

Mixer Type

Powered Mixer (Amplified)

RMS Power Output

300W @ 4 Ohms (1kHz, THD 1%)

Frequency Response

20Hz to 22kHz (+/- 3dB)

Channel Strip & EQ

Mic Gain / Line Gain

50dB / 20dB

Channel EQ (3-Band)

• High: +/-15dB @ 12kHz
• Mid: +/-12dB @ 2.5kHz
• Low: +/-15dB @ 80Hz

Master Graphic EQ

7-Band (4/3 octave)

DSP & Effects Section

Resolution

24-bit A/D and D/A Converters

Presets

100 (Vocal, Hall, Room, Echo, Flanger, etc.)

Controls

100-position selector, Mute, Clip LED

Media & Connectivity

USB MP3 Section

Supports FAT16/32, VBR, and bitrates up to 320kbps

Maximum Outputs

+22 dBu (Monitor/FX Sends)

Physical Specifications

Dimensions

480 x 220 x 274 mm

Net Weight

10.80 kg (23.81 lbs)
